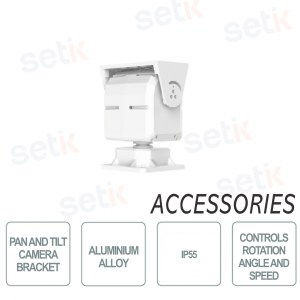

Dahua Camera support with pan and til adjustment - Material: aluminum alloy - White color - RS-485 port - IP55 - Power supply 12 VDC, 2 A - Dahua PFA170
FIND INSTALLER
DAHUA: LOSS LEADER×
INCREDIBLE DISCOUNTS
on a selection of DAHUA products
Check out the promo now >>
WATERPROOF JUNCTION BOX - DAHUA - PFA170

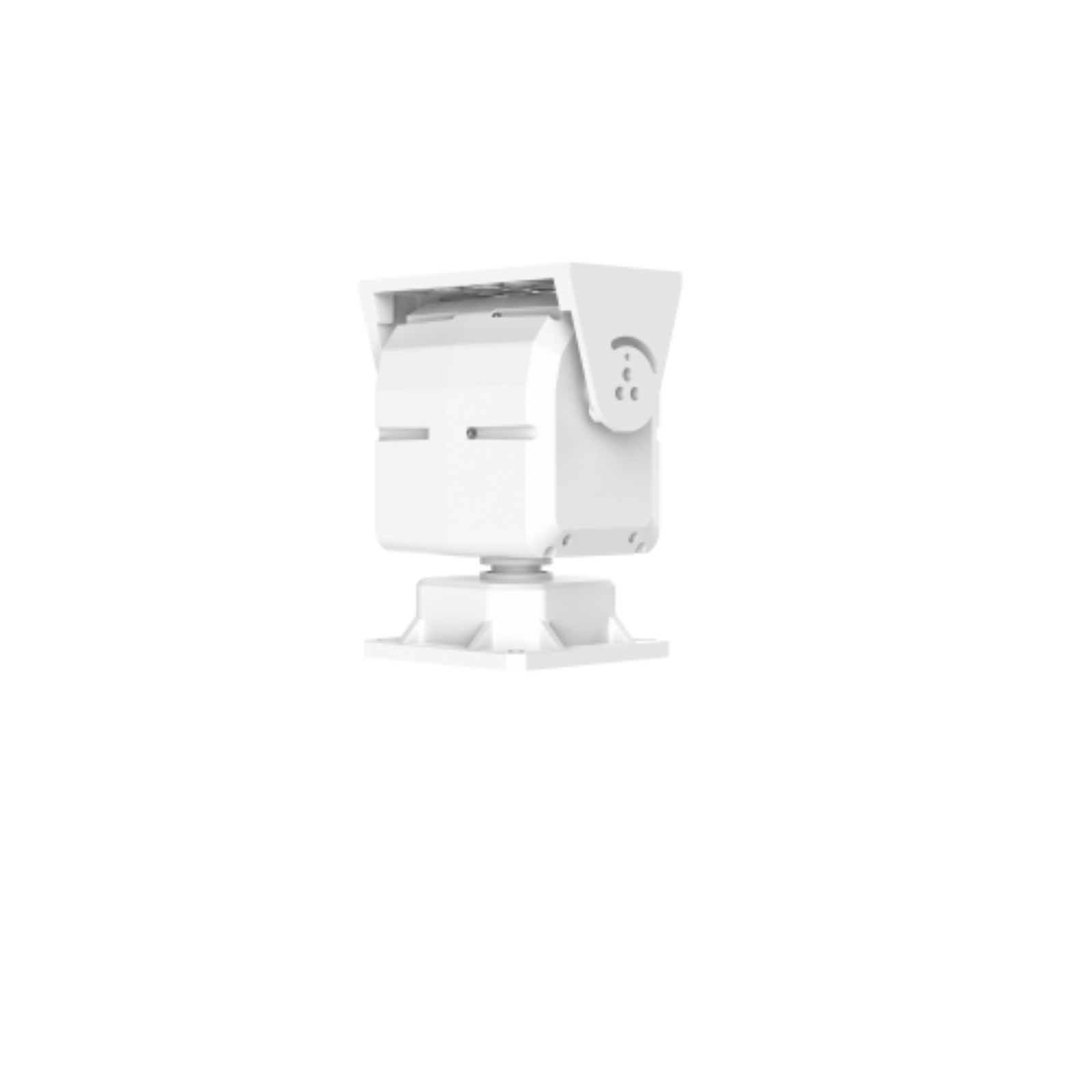

Camera support with PAN and TILT adjustment - Dahua
White color
RS-485 port - IP55
Power supply 12 VDC, 2 A- Dahua
Material: aluminum alloy
Material: aluminum alloy
Dimensions: 224.0mm × 170.0mm × 294.3mm (8.82 "× 6.69" × 11.59 ") (L × W × H)
Weight: 7.0kg (15.43 lb)
Product details
- Camera holder with PAN and TILT adjustment - DAHUA
- Material: aluminum alloy
- RS-485 port
- Power supply 12 VDC, 2 A
- IP55 protection
- Dimensions: 224.0mm × 170.0mm × 294.3mm (8.82 "× 6.69" × 11.59 ") (L × W × H)
- Weight: 7.0kg (15.43 lb)
- Code: PFA170
Data sheet
| Model | PFA170 |
| Pan and Tilt | |
| Network Protocol | PELCO-D |
| Baud Rate | 9600 |
| Pan / Tilt Range | Pan: –30 ° to 30 ° Tilt: –70 ° to + 20 ° |
| Manual Control Speed | Pan: 0.1 ° / s – 20 ° / s Tilt: 5 ° / s |
| Certification | |
| Certification | THERE IS |
| Port | |
| RS-485 | 12 VDC, 2 A |
| Power | |
| Power supply | Please see "Accessory Selection" |
| Power Consumption | 20W |
| Environment | |
| Protection | IP55 |
| Operating Temperature | –30 ° C to +60 ° C (–22 ° F to +140 ° F) |
| Operating Humidity | <90% (RH) |
| Storage Temperature | –30 ° C to +60 ° C (–22 ° F to +140 ° F) |
| Storage Humidity | 10% –90% (RH) |
| Structure | |
| Material | Aluminum alloy |

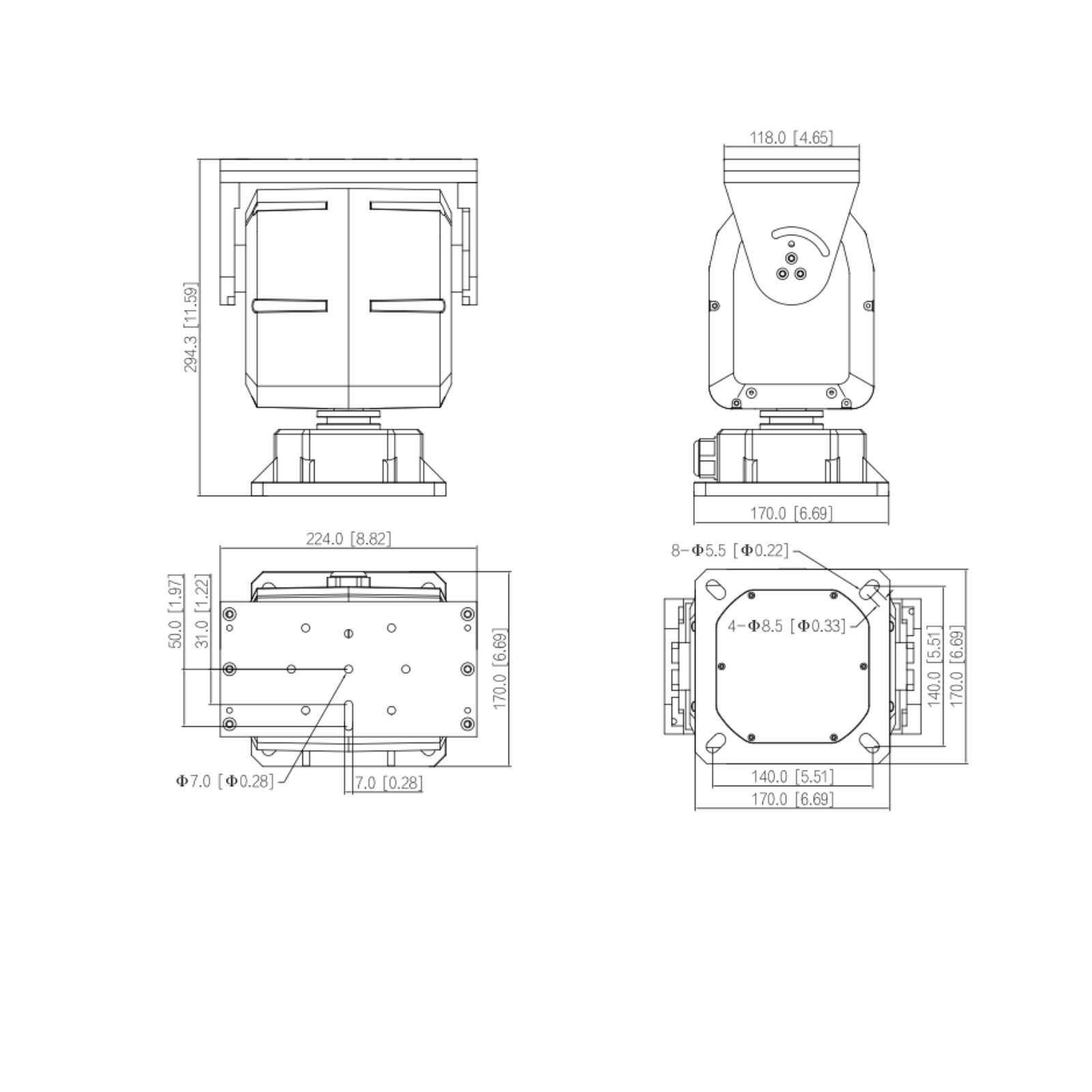

| Dimension | 224.0 mm × 170.0 mm × 294.3 mm (8.82 "× 6.69" × 11.59 ") (L × W × H) |
| Color | White |
| Net Weight | 7.0kg (15.43 lb) |
| Gross Weight | 8.0 kg (17.64 lb) |
| Load bearing | 5.0 kg (11.02 lb) |
| Product Dimensions | 368.0 mm x 278.0 mm x 233.0 mm (14.48 "× 10.94" × 9.17 ") (L × W × H) |
| Packaging Dimensions | 575.0mm x 380.0mm x 500.0mm (22.64 "× 14.96" × 19.68 ") (L × W × H) |
| Packaging Method | 4 pcs in each master carton |
