High quality Junction Box - Dahua PFA137A - Ideal for Dome cameras. With spray treatment against corrosion - Made of Aluminum Alloy. Dimension 122.0mm x 122.0mm x 34.20mm. For video surveillance systems - NEMA 4x rated - Cable exit design for wiring - White color - Maximum load 1Kg - Net weight 0.24Kg.
FIND INSTALLER
https://www.setik.biz/en/bracket-and-cases/7452-dahua-pfa137a-junction-box-in-aluminium-alloy-corrosion-resistant-max-1kg.html
€11.71
€29.28 -60%
taxes included
discover the available quantity
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!

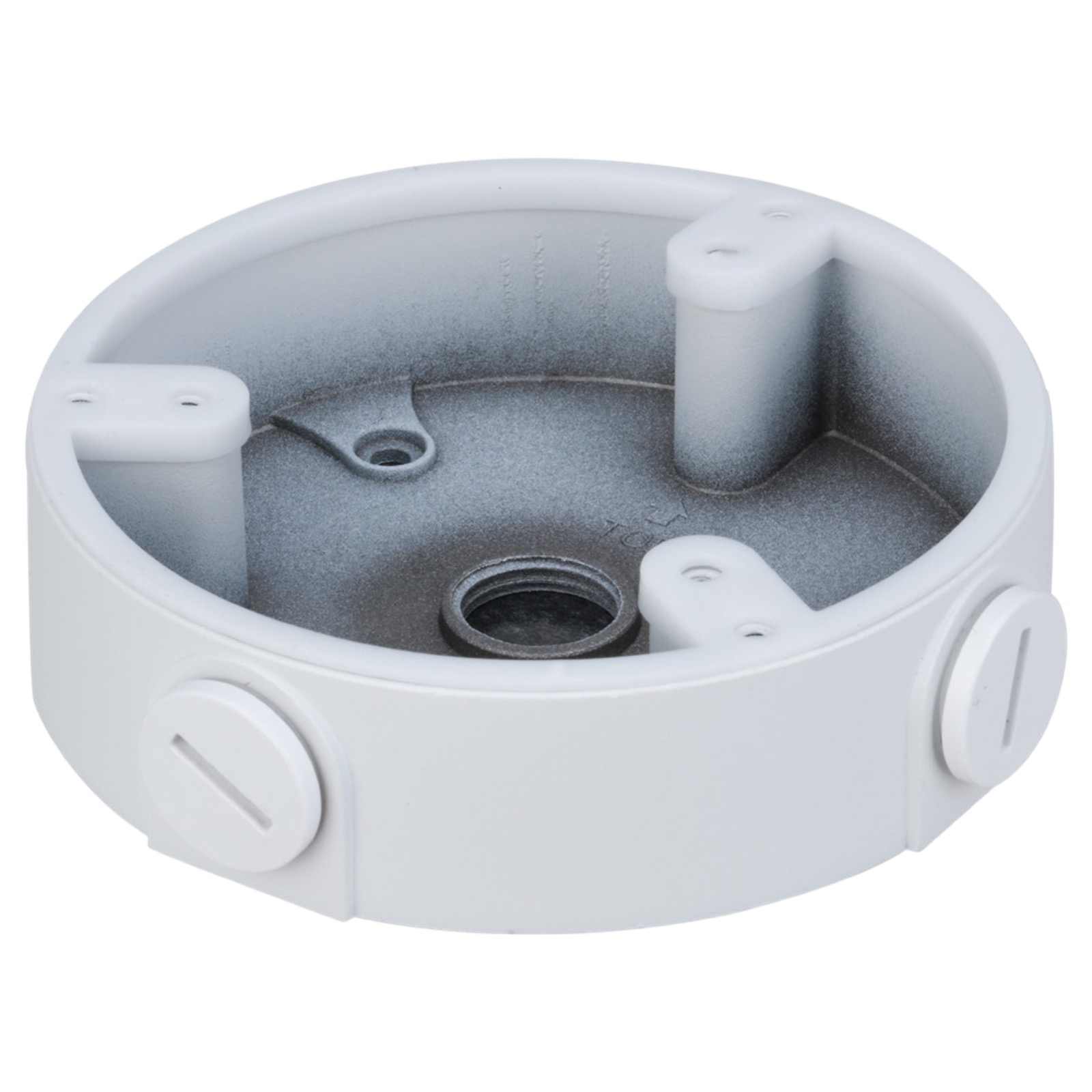

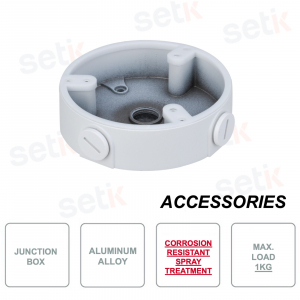

JUNCTION BOX FOR DOME CAMERAS - ANTI-CORROSION - DAHUA - PFA137A
Anti-corrosion junction box in aluminum alloy - Dahua - PFA137A
Ideal for Dome cameras - Surface anti-corrosion spray treatment - In aluminum alloy - With cable exit hole - Dimensions: 122.0mm x 122.0 mm x 34.20 mm - Item weight: 240g - Supported load: 1Kg - Temperature: –40 °C to 60 °C - Color: white - Humidity: < 90% RH - Classification: NEMA 4x - Quality product, compact with a refined design.
Product details
- Junction Box - Dahua - PFA137A
- Protective anti-corrosion spray treatment of surfaces
- Ideal for Dome cameras
- Material: Aluminum alloy
- NEMA 4x rated (200 hours)
- Exit hole for tidy wiring
- Dimensions: Ø 122x34.20
- Weight: 0.24Kg
- Maximum load supported: 1Kg
- Temperature: –40 °C to 60 °C
- Appearance: white color
- Humidity: < 90% RH
- Quality product
Data sheet
| PFA137A | |||
Technical Specs | |||
Material | Aluminum Alloy | ||

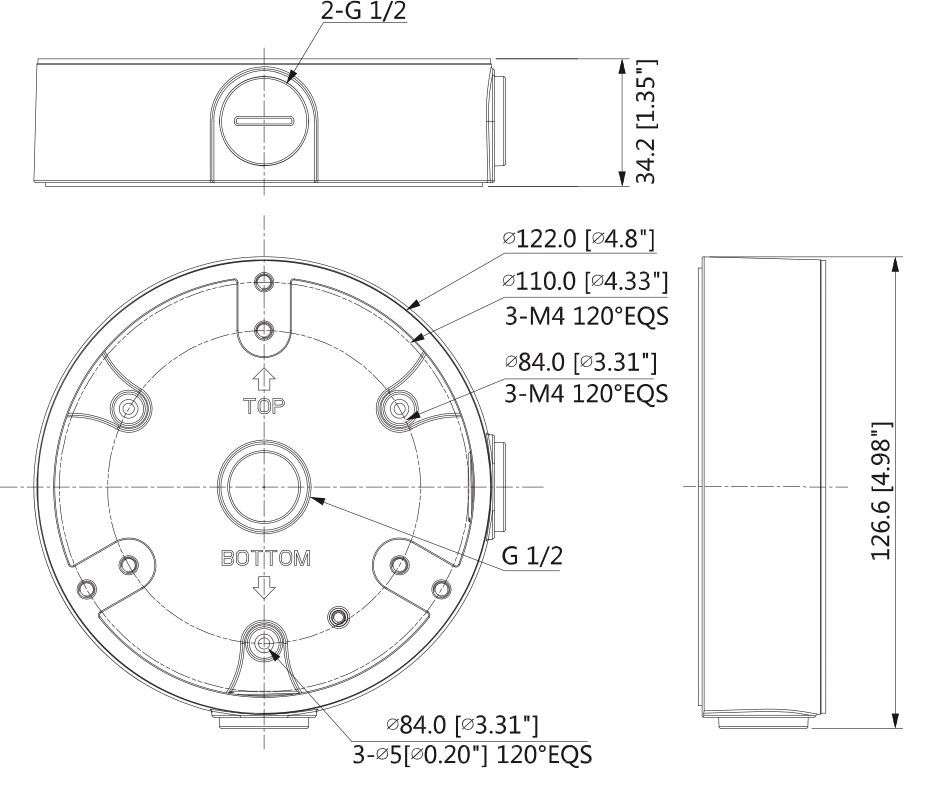

Dimensions (W x H x D) | Ø122.0 mm x 34.20 mm | ||
Pipe Thread | M20 (G1/2 in.) | ||
Weight | 0.24 kg (0.53 lb) | ||
Load Bearing Capacity | 1.0kg (2.20lb) | ||
Color | White | ||
Operating Temperature | –40 °C to 60 °C (–40 °F to 140 °F) | ||
Humidity | < 90% RH | ||
Enclosure Rating | NEMA 4X | ||
Further details
Downloads
Download the English brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification
