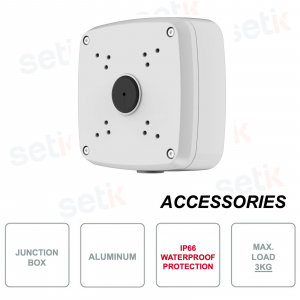

Watertight aluminum junction box - IP66 protection - V2 version

Watertight aluminum junction box - IP66 protection - V2 version
-60%

Watertight junction box for dome cameras - Dahua - PFA121-V2 - V2 version - Maximum supported load 3Kg - IP66 level protection - Made of aluminum - White color - Dimensions: 134.0mmx133.5mmx56.0mm - Net weight: 0.54Kg - Ideal for video surveillance systems.

Reference: PFA121-V2

Brand: Dahua

EAN: 6939554943164

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DAHUA: LOSS LEADER×


 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>

DAHUA 8X8×


  DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH

 QUANTITY DISCOUNT   AND  FREE SHIPPING!
 DISCOVER THEM NOW >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

WATERPROOF JUNCTION BOX FOR VIDEO SURVEILLANCE CAMERAS - ALUMINUM - WHITE - DAHUA - PFA121-V2

Prodotto Dahua
Junction Box - Dahua - PFA121-V2
V2 version - Waterproof / Watertight - IP66 protection ideal for outdoor use - Material: Aluminum - Color: white - Net weight 540g - Dimensions: 134.0mmx133.5mmx56.0mm - Operating temperature: -40ºC ~ + 60ºC - Product of High Quality - Ideal for video surveillance systems.

Product details

  • Junction Box - DAHUA - PFA121-V2
  • Version V2
  • Waterproof, with IP66 protection
  • Ideal for video surveillance systems set up outdoors
  • Material: Aluminum
  • Maximum supported load 3Kg
  • White color
  • Dimensions: 134.0mmx133.5mmx56.0mm
  • Weight: 0.54kg
  • Type: Watertight / Waterproof Junction Box
  • Supported operating temperature: -40ºC ~ + 60ºC
  • Relative humidity: 0 ~ 90% RH
Box di giunzione stagno waterproof Dahua

Data sheet

Model

PFA121-V2

General

Material

Aluminum

Dimension (WxHxD)

134.0mmx133.5mmx56.0mm (5.28 "x5.25" x2.20 ")

Pipe Thread

G3 / 4 "

Weight

0.54kg (1.19lb)

Load Bearing

3.0kg (6.61lb)

Color

White

Protection

IP66

Operating Temperature

-40ºC ~ + 60ºC (-40? ~ + 140?)

Humidity

0 ~ 90% RH

Further details

Dimensioni box di giunzione PFA121

Download

Brochure not available
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
