Passive Video Balun PFM802 Dahua HDCVI / TVI / AHD / CVBS with real-time transmissions, without delays or disturbances up to 100m (2.9W). Standard RJ45 interface for connection - Lag-free real-time transmission with UTP CAT5E / 6 ethernet cable - Antistatic, lightning and anti-interference protection - Power supplied modulated according to distance - Provide Video + Power .
FIND INSTALLER
€7.87
€18.30 -57%
discover the available quantity
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
VIDEO BALUN HDCVI / TVI / AHD / CVBS - PFM802 - PASSIVE - VIDEO + POWER SUPPLY - UP TO 100m - DAHUA

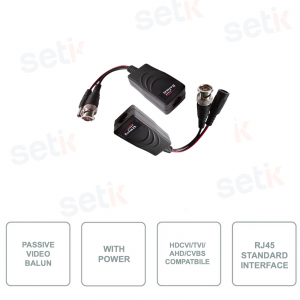

Passive Video Baluns - Dahua - PFM802
Compatible with HDCVI / TVI / AHD / CVBS systems - Clean, noise-free transmissions up to 100m - Video + Power - BNC-M video coaxial connector - RJ45 interface for connecting UTP Cat5E / 6 cables . - Lightning / interference protection - Anti-static protection - Product excluded from warranty - Black color - Weight: 85g - Dimensions: 61.5mmx33.5mmx20.5mm (2.42 ”x1.32“ x0.81 ”) - Material: ABS.
Product details
- Pair of Passive Video Baluns - Dahua - PFM802
- Compatible with HDCVI / TVI / AHD / CVBS systems
- Noise-free transmissions up to 100m
- They carry video signal + power supply
- BNC-M coaxial video connector
- For use with Cat5E / 6 UTP cables
- Anti-static, interference and lightning protection
- Product excluded from warranty
Data sheet
|
Technical Speci? Cation |
|||
|
Model |
PFM802 |
||
|
System Properties |
|||
|
Power Supply |
DC12-15V |
||
|
Network cable Type |
UTP CAT5E / 6 |
||
|
Transmission Properties |
Input |
Distance |
Output Power |
|
DC12V 0.7A |
0-20m |
7.5W |
|
|
20-40m |
6.2W |
||
|
40-60m |
4.5W |
||
|
60-80m |
3.7W |
||
|
80-100m |
2.9W |
||
|
The above table is the measured output power data with DC12V0.7A * 4 power adapter and CAT5E network cable. Please confirm the power consumption of remote camera. |
|||
|
Video Transmission Properties |
|||
|
Coaxial Video Connector |
BNC-M |
||
|
Connection Way |
RJ45 |
||
|
Compatible Format |
HDCVI / TVI / AHD / CVBS |
||
|
Resolution |
720P / 1080P / 4MP |
||
|
Protection |
|||
|
ESD |
1a contact discharge electricity level 3 |
||
|
1b air discharge electricity level 3 |
|||
|
For: IEC61000-4-2 |
|||
|
Coaxial Cable Connector |
1KV (different-mode), 2KV (common-mode) |
||
|
For: IEC61000-4-5 |
|||
|
UTP Cable Connector |
1KV (different-mode), 2KV (common-mode) |
||
|
For: IEC61000-4-5 |
|||
|
Power Connector |
1KV (different-mode), 2KV (common-mode) |
||
|
For: IEC61000-4-5 |
|||
|
Impedance |
|||
|
BNC Male Impedance |
75 ohms |
||
|
UTP Cable Impedance |
100 ohms |
||
|
Environmental |
|||
|
Operating Temperature |
-10? ~ + 55? (+ 14? ~ + 131?) |
||
|
Operating Humidity |
<95% RH |
||
|
Storage Temperature |
-20? ~ + 70? (- 4? ~ + 158?) |
||
|
Physical Properties |
|
|
Weight |
85g (0.19lb) |
|
Dimension (LxWxH) |
61.5mmx33.5mmx20.5mm (2.42 "x1.32" x0.81 ") |
|
Shell |
ABS |
|
Color |
Black |
Further details
 |
Components which by their nature or due to normal wear, tear or decay, require periodic maintenance or replacement (e.g. power supplies, cables, connectors, structural components or anything that is subject to mechanical and electrical stress) are specifically excluded from the Warranty. |
