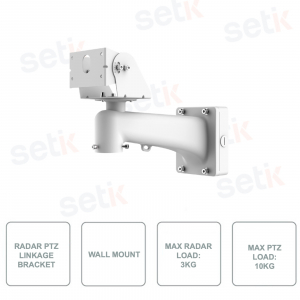

WALL MOUNTING BRACKET - DAHUA - RADAR / PTZ CONNECTION - ALUMINUM ALLOY - WHITE COLOR

Ideal for wall installation.
Material: Aluminum alloy - Color: white
Dimensions: 384.5mm × 285.5mm × 149.6mm
Product details
- Wall fixing bracket - Dahua - PFB414W
- Connection for PTZ / Radar
- Side wiring management with junction box
- Material: Aluminum alloy
- White color
- Operating temperature: -40 - + 70%
- Humidity: up to 90%
- Sophisticated and minimalist design
- Dimensions: 384.5mm × 285.5mm × 149.6mm
- Item net weight: 2.7Kg
- Maximum load: 3kg (radar); 10Kg (PTZ)
- Code: PFB414W

Data sheet
Model | PFB414W |
Material | Aluminum alloy |
Dimension | 384.5 mm × 285.5 mm × 149.6 mm (15.14 "× 11.24" × 5.89 ") |
Weight | 2.7 kg (5.95 lb) |
Load Bearing | PTZ camera: 10 kg (22.05 lb) Radar: 3 kg (6.61 lb) |
Operating Temperature | –40 ° C to 70 ° C (–40 ° F to 158 ° F) |
Operating Humidity | <90% (RH) |
Installation | Wall mount |
Color | White |
Applicable Model |
Radar: PFR4K-E series, PFR4K-D series |
Accessories (Optional) |
PFA150 PFA151 |
