HYU-159 Two transmitter pack - Passive - 1 channel HDTVI / HDCI / AHD - No power required - Built-in voltage stabilizer and transient protection - CAT5 / 5E / 6 coaxial cable. Interference rejection> 60dB - Ideal for video surveillance systems
FIND INSTALLER

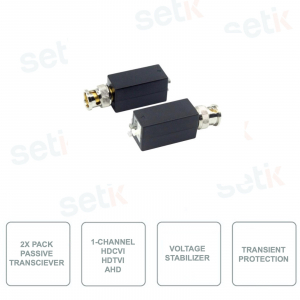

PACK 2X 1-CHANNEL PASSIVE TRANSMITTERS - HDCI / HDTVI / AHD OUTPUT SUPPORT
HYU-160 1 channel passive transmitters - HDVI / HDCI / AHD
Built-in voltage stabilizer and transient protection - No power required - CAT 5 / 5E / 6 coaxial cable - 60dB interference rejection - Range: HDCVI : 400 meters (720P), 250 meters (1080P); HDTVI : 250 meters (720P, 1080P); AHD : 350 meters (720P), 200 meters (1080P). Compatible with setting up of video surveillance systems.
Product details
- 2 Passive transmitters
- 1 channel: HDCVI, HDTVI, AHD
- Range:
HDCVI : 400 meters (720P), 250 meters (1080P)
HDTVI : 250 meters (720P, 1080P)
AHD : 350 meters (720P), 200 meters (1080P) - The product does not require power
- Rejection of interference> 60dB
- Built-in voltage stabilizer
- ? Transitional protection
- Coaxial cable: CAT5 / 5E / 6
- Temperature: from -10 ° C ~ + 55 ° C
- Size: 36.5 x 17.5 x 17.3mm
Data sheet
| Model | HYU-159 |
| Properties |
1 channel passive transciever: HDCVI, HDTVI and AHD |
| Supported Range |
HDCVI range: 400 meters (720p), 250 meters (1080p) |
| Power Supply | NOT Required |
| Interference Rejection | (> 60dB) |
| Protection | Built-in voltage stabilizer Transient Protection |
| Cable | CAT5 / 5E / 6 Coaxial |
| Working Temperature | -10ºC ~ + 55ºC |
| Dimensions | 36.5 x 17.5 x 17.3 mm |
