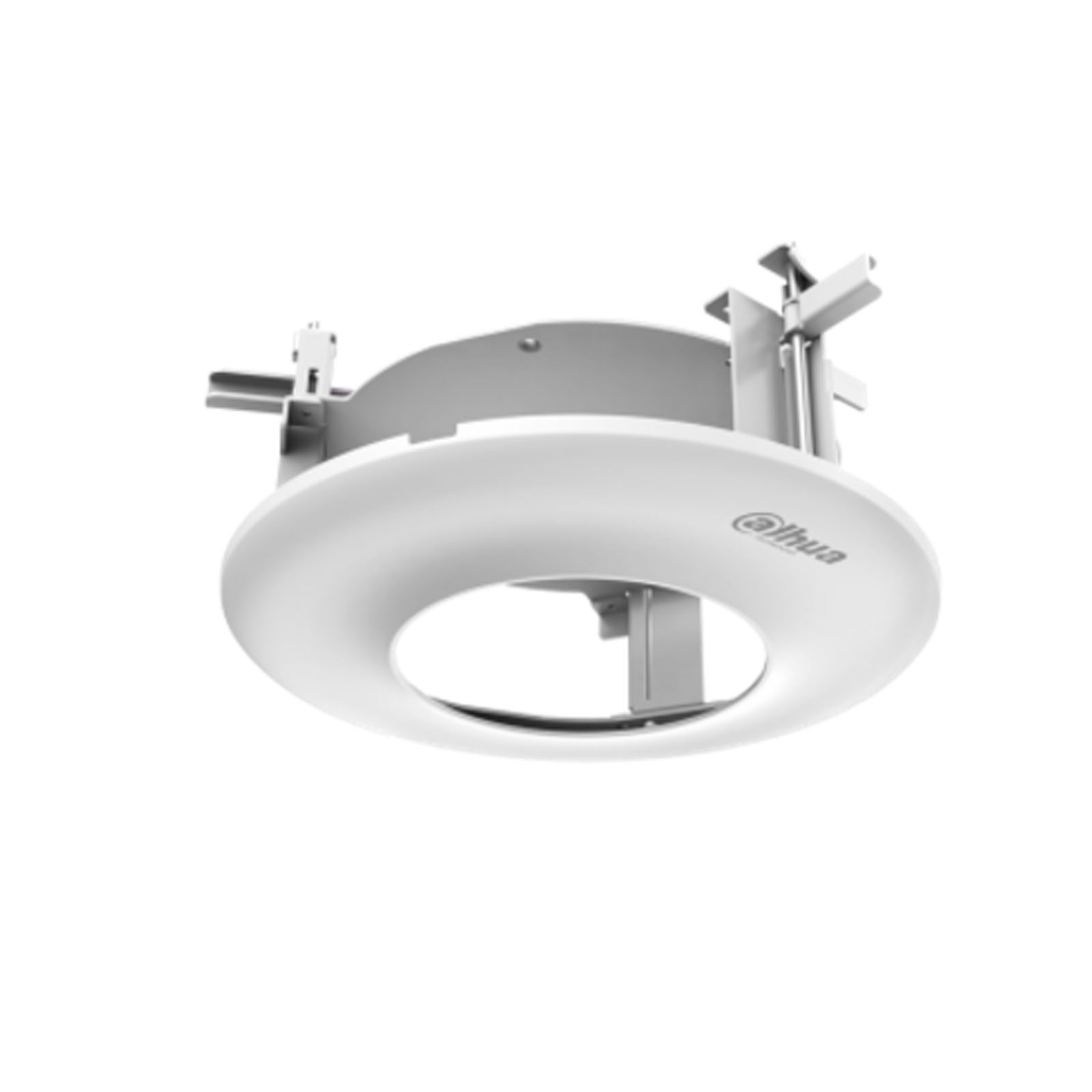

PFB5202C - White Ceiling Mount Bracket, 61mm Recess. SPCC & PC Material, 0°-360° Rotation Angle Size: Φ211.5mm × 109.7mm. Quality Product. Dahua
FIND INSTALLER
61mm FLUSH MOUNT CEILING BRACKET - SPCC & PC - CEILING MOUNT - DAHUA
White color ceiling mount bracket, 61mm recessed. SPCC & PC material, rotation angle from 0° to 360° size: Φ211.5 mm × 109.7 mm. Quality product. - PFB5202C
Product details
- Ceiling Mounting Bracket
- Material : SPCC & PC
- 61mm recess
- Rotation angle from 0° to 360°
- Dimensions: Φ211.5mm × 109.7mm
- Weight: 0.55 kg
- Installation Type: Ceiling
Technical data sheet
| Model | PFB5202C |
| Structure | |
| Material | SPCC; PC |

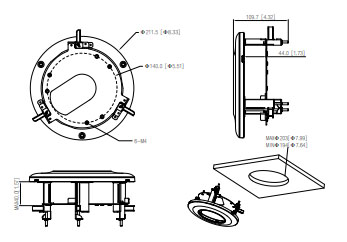

| Dimensions | Φ211.5 mm × 109.7 mm (Φ8.33" × 4.32") |
| Appearance Color | White |
| Net Weight | 0.55 kg (1.21 lb) |
| Gross Weight | 0.83 kg (1.83 lb) |
| Load Bearing | 3.0 kg (6.61 lb) |
| Installation | In-ceiling mount |
| Rotation Angle | Pan: 0° to 360° |
| Applicable Model | Please see "Camera Accessories Selection" |
| Packaging Dimensions | 266.0 mm × 266.0 mm × 138.0 mm (10.47" × 10.47" × 5.43") (L × W × H) |
| Transport Package Dimensions | 719.0 mm × 553.0 mm × 298.0 mm (28.31" × 21.77" × 11.73") (L × W × H) |
| Packaging Method | 10pcs in each carton |
| Structure | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | <90% (RH) |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | 10%–90% (RH) |
Further details
Download
English Brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification
