Waterproof Junction Box - IP66 - Dahua

Waterproof Junction Box - IP66 - Dahua
-56%

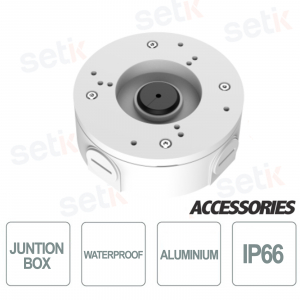

Waterproof junction box. Aluminum material. Simple design. Φ123.4mm × 44.9mm Quality product. IP66 protection grade. Dahua PFA5300R.

Reference: PFA5300R

Brand: Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DAHUA: LOSS LEADER×


 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>

DAHUA 8X8×


  DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH

 QUANTITY DISCOUNT   AND  FREE SHIPPING!
 DISCOVER THEM NOW >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

WATERPROOF JUNCTION BOX - DAHUA - PFA5300R

Made by Dahua
Waterproof Junction Box - Dahua
Compatible with various camera models
Material: Aluminum
IP66 protection grade
Dimensions: Φ123.4mm × 44.9mm - Simple design - Quality product

Product details

  • Waterproof Junction Box - DAHUA
  • Compatible with various cameras
  • Material : Aluminum /& SECC
  • Dimensions: Φ123.4mm × 44.9mm
  • Weight: 0.39 kg
  • Type: Junction Box
  • Code: PFA5300R
Box di giunzione stagno - PFA134

Technical data sheet

Model PFA5300R
Structure
Product Material Aluminum alloy
Product Dimensions Φ123.4 mm × 44.9 mm (Φ4.86" × 1.77")
Appearance Color White
Net Weight 0.39 kg (0.86 lb)
Gross Weight 0.51 kg (1.12 lb)
Load Bearing 3.0 kg (6.61 lb)
Installation Junction Mount
Screw Thread Type G3/4
Applicable Model Please see "Camera Accessories Selection"
Packaging Dimensions

187.0 mm × 164.0 mm × 72.0 mm (7.36" × 6.46" × 2.83") (L × W × H)

Transport Package Dimensions

578.0 mm × 383.0 mm × 349.0 mm (22.76" × 15.08" × 13.74") (L × W × H)

Packaging Method

30pcs in each carton

Environment
Protection IP66
Operating Temperature –40°C to +60°C (–40°F to +140°F)
Operating Humidity < 90% (RH)
Storage Temperature –40°C to +60°C (–40°F to +140°F)
Storage Humidity 10%–90% (RH)

Further details

PFA5300R dimensioni.jpg

Download

Download the English Brochure
Accessories Compatibility
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
