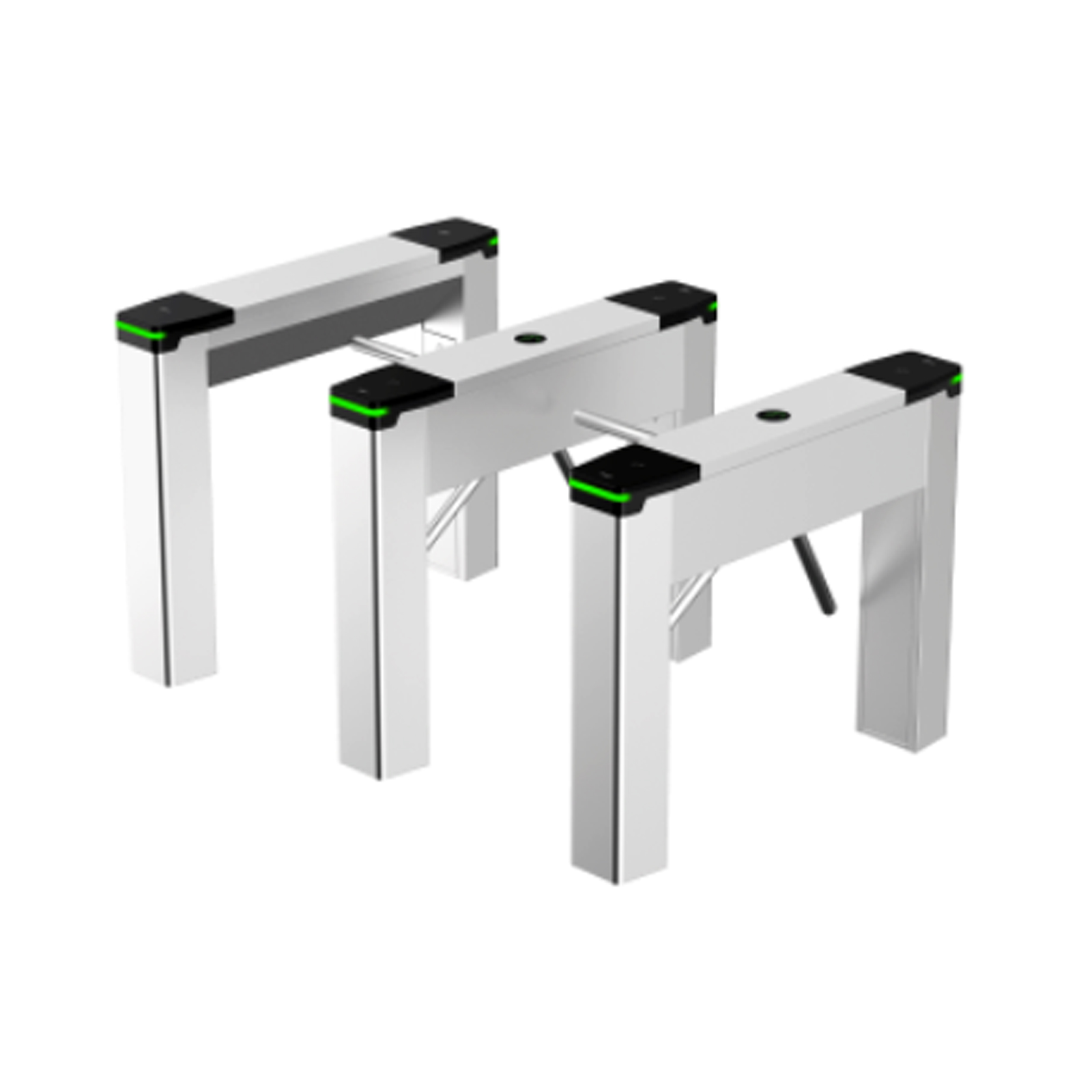

ASGG520T - TRIPOD TURNSTILE - MCBF > 3,000,000 - STAINLESS STEEL



ASGG520T Indoor and outdoor tripod turnstile - lock arms after unlock duration unlock duration 2-60 seconds - acoustic and light prompts and adjustable volume - support unlock arms when power off - MCBF > 3,000,000 - material stainless steel Dahua


MAIN FEATURES:

  • Anti-collision
  • Adjustable unlock duration
  • Lock arms after unlock duration
  • Lock or unlock the turnstile with a remote control (optional)
  • Reset parameters via the configuration application
  • Acoustic and visual messages and adjustable volume
  • Supports memory mode
  • Supports arm unlocking when power off
  • MCBF > 3,000,000
  • IPX4 protection
  • Material Stainless steel
  • Weight: 37 kg
  • Dimensions: 1200mm × 200mm × 980mm

Technical data sheet

ASGG520T
Basic
Product Dimensions 1200 mm × 200 mm × 980 mm (47.24" × 7.87" × 38.58")
Casing Cabinet Thickness SUS304 1.5 mm (0.06")
Arm Material Stainless steel
Function
Anti-collision Yes
Memory Mode Yes
Anti-trailing Yes
Sound and Light Prompt Yes
People Counting Yes
Alarm Yes
Performance
Unlocking Duration 2–60 s (5 s by default)
MCBF > 3,000,000
Passing Frequency 20–40 people/minute
Passage Width 600mm (23.62")
Function
Net Weight 37 kg (81.57 lb)
Gross Weight 60kg (132.28lb)
Protection Grade IPX4
Power Consumption Standby ≤ 10W; working: ≤ 40W
Operating Temperature –25 °C to +70 °C (–13 °F to +158 °F)
Operating Humidity 5%–93% (RH), non-condensing
Operating Environment Indoor and outdoor

Further details

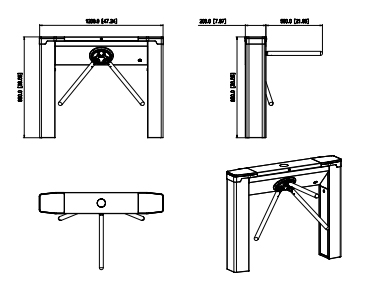

ASGG520T dimensions.jpg

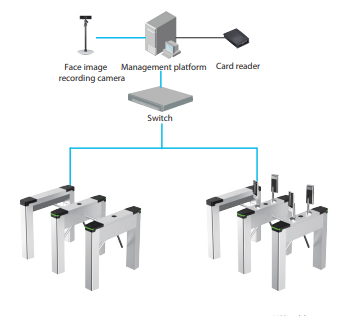

ASGG520T application.jpg

Download

Download the Brochure in English
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
