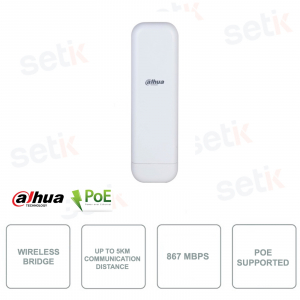

Wireless bridge - 2.4Ghz - 5Ghz - Integrated antenna - Supports PoE - Range up to 5Km

Wireless bridge - 2.4Ghz - 5Ghz - Integrated antenna - Supports PoE - Range up to 5Km
-57%

Dahua Wireless Bridge - WBC5-30AC-05P - Communication frequency 2.4/5Ghz - 867Mbps band - Supports PoE power supply - Integrated antenna - Communication range up to 5Km - 2x Ethernet ports: 1xPoE 1000Mbps/1x LAN 100Mbps - Power supply included - IP65 protection - Bridge network Mode - Wireless connection up to 8 terminals - Reset Button - Easy to install - For pole installation.



Reference: WBC5-30AC-05P

Brand: Dahua

EAN: 6923172549471

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DAHUA: LOSS LEADER×


 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>

DAHUA 8X8×


  DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH

 QUANTITY DISCOUNT   AND  FREE SHIPPING!
 DISCOVER THEM NOW >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

WIRELESS BRIDGE - FREQUENCY 2.4/5GHZ - 867MBPS - POE SUPPORT - COMMUNICATION UP TO 5KM - INTEGRATED ANTENNA - DAHUA - WBC5-30AC-05P

Dahua
Wireless bridge - Dahua - WBC5-30AC-05P
Wireless Bridge - Operating frequency 2.4Ghz/5Ghz - Communication band 867Mhz - Supports PoE - Communication range up to 5Km - Status lights - 1xPoE RJ45 1000Mbps + 1xLAN RJ45 100Mbps - Reset button - Integrated antenna - Web configurable - For pole installation (support included) - Easy to install - Wide operating temperature range: –30 °C - +65 °C - IP65 protection - Network Mode: Bridge.

Product details:

allarme radar per dome ptz camera 24/7 dahua - fino a 150m
  • Wireless bridge - Dahua - WBC5-30AC-05P
  • Operating frequencies: 2.4/5Ghz
  • Bandwidth 867Mbps
  • Communication range up to 5Km
  • IEEE802.11a/n/ac wireless communication protocol
  • Wireless connection up to 8 terminals
  • 2 Ethernet ports
  • 1x 1000Mbps PoE port
  • 1x 100Mbps LAN port
  • Reset button
  • Status and operating light
  • Integrated directional antenna
  • Network Mode: Bridge
  • Configurable from the web
  • IP65 protection
  • Lightning protection 6kV
  • Ideal for pole installation
  • Pole installation bracket included
  • Wide supported operating temperature: -30°C - +65°C
  • Net weight: 0.37Kg
  • Dimensions: 268x82x35mm

Data sheet

WBC5-30AC-05P

Hardware

interface

1× PoE RJ–45 (1000Mbps);

1 × LAN RJ–45 (100Mbps)

Power Module Connector

1 × PoE RJ–45(IN: 30W)

Wireless Standard

2.4GHz: 802.11b/g/n;

5GHz: 802.11a/n/ac

Power Supply

PoE IN: 802.3at;

PoE OUT: 802.3af

Included Power Adapter

Yes

Included Antenna

Yes

Ethernet Ports

2

Ethernet Port Speed

10/100/1000Mbps

Reset Button

1

power consumption

< 30W

External port

2 × RJ–45; 1× Reset

Installation

Pole mount

Further details

Downloads

Download the English brochure
