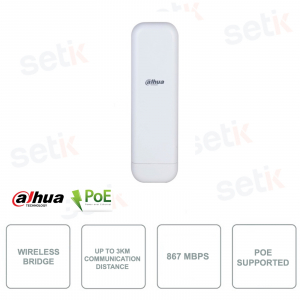

Wireless bridge - 2.4Ghz - 5Ghz - Integrated antenna -Supports PoE - Range up to 3km

Wireless bridge - 2.4Ghz - 5Ghz - Integrated antenna -Supports PoE - Range up to 3km
QUESTIONS ABOUT THE PRODUCT

 
-57%

Dahua Wireless Bridge - WBC5-45AC-03P - Communication frequency 2.4/5Ghz - 867Mbps band - Supports PoE power supply - Integrated antenna - Communication range up to 3km - 2x Ethernet ports: 1xPoE 1000Mbps/1x LAN 100Mbps - Power supply included - IP65 protection - Bridge network Mode - Wireless connection up to 8 terminals - Reset Button - Easy to install - For pole installation.



Reference: WBC5-45AC-03P

Brand: Dahua

EAN: 6923172549457

FIND INSTALLER


WIRELESS BRIDGE - FREQUENCY 2.4/5GHZ - 867MBPS - POE SUPPORT - COMMUNICATION UP TO 3KM - INTEGRATED ANTENNA - DAHUA - WBC5-45AC-03P

Dahua

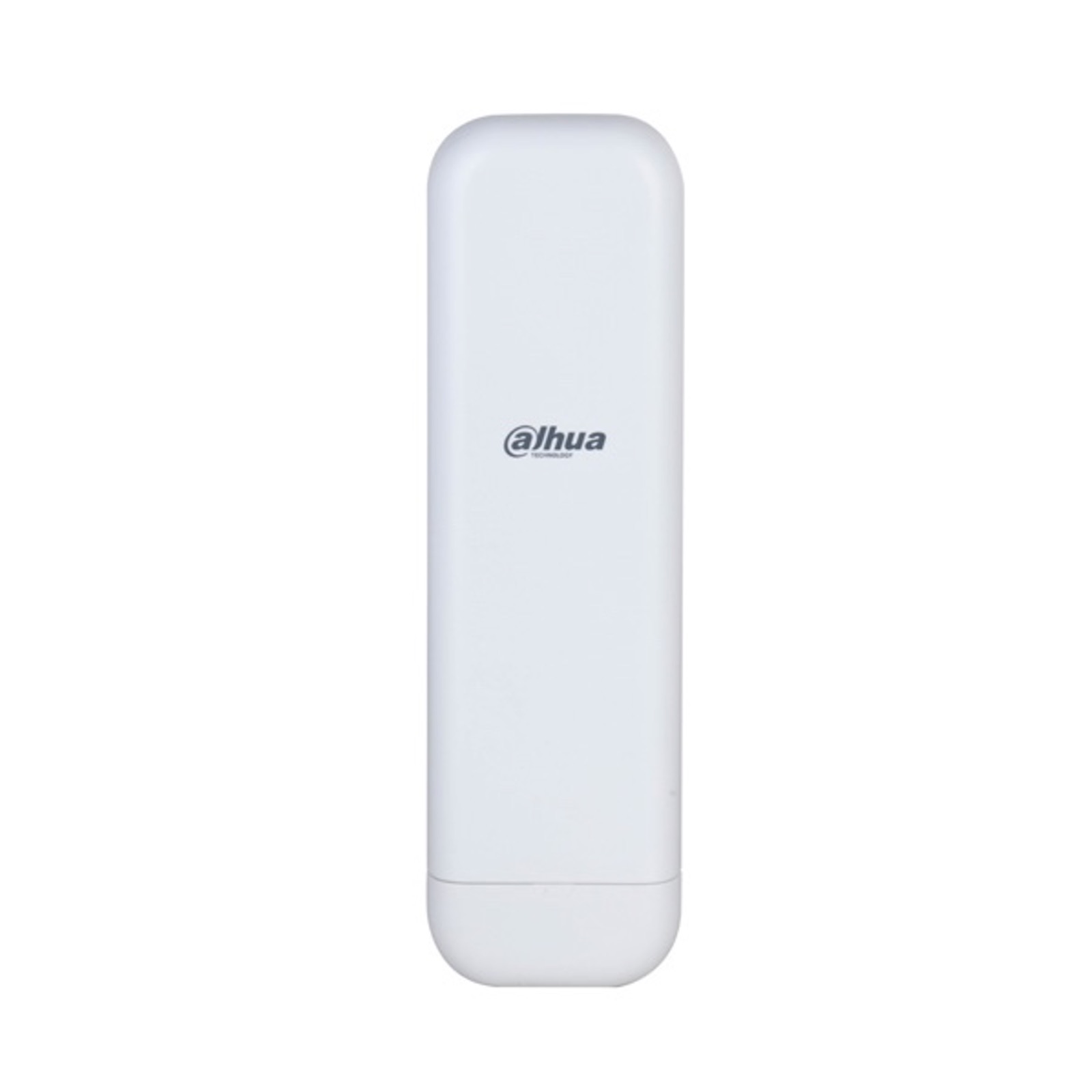

Wireless bridge - Dahua - WBC5-45AC-03P
Wireless Bridge - Operating frequency 2.4Ghz/5Ghz - Communication band 867Mhz - Supports PoE (input/output) - Communication range up to 3km - Status light indicators - 1xPoE RJ45 1000Mbps + 1xLAN RJ45 100Mbps - Reset button - Integrated antenna - Configurable from web - For pole installation (support included) - Easy to install - Wide operating temperature: –30 °C - +65 °C - IP65 protection - Network Mode: Bridge.

Product details:

allarme radar per dome ptz camera 24/7 dahua - fino a 150m
  • Wireless bridge - Dahua - WBC5-45AC-03P
  • Operating frequencies: 2.4/5Ghz
  • Bandwidth 867Mbps
  • Communication range up to 3km
  • IEEE802.11a/n/ac wireless communication protocol
  • Wireless connection up to 8 terminals
  • 2 Ethernet ports
  • 1x 1000Mbps PoE port
  • 1x 100Mbps LAN port
  • Reset button
  • Status and operating light
  • Integrated directional antenna
  • Network Mode: Bridge
  • Configurable from the web
  • IP65 protection
  • Lightning protection 6kV
  • Ideal for pole installation
  • Pole installation bracket included
  • Wide supported operating temperature: -30°C - +65°C
  • Net weight: 0.37Kg

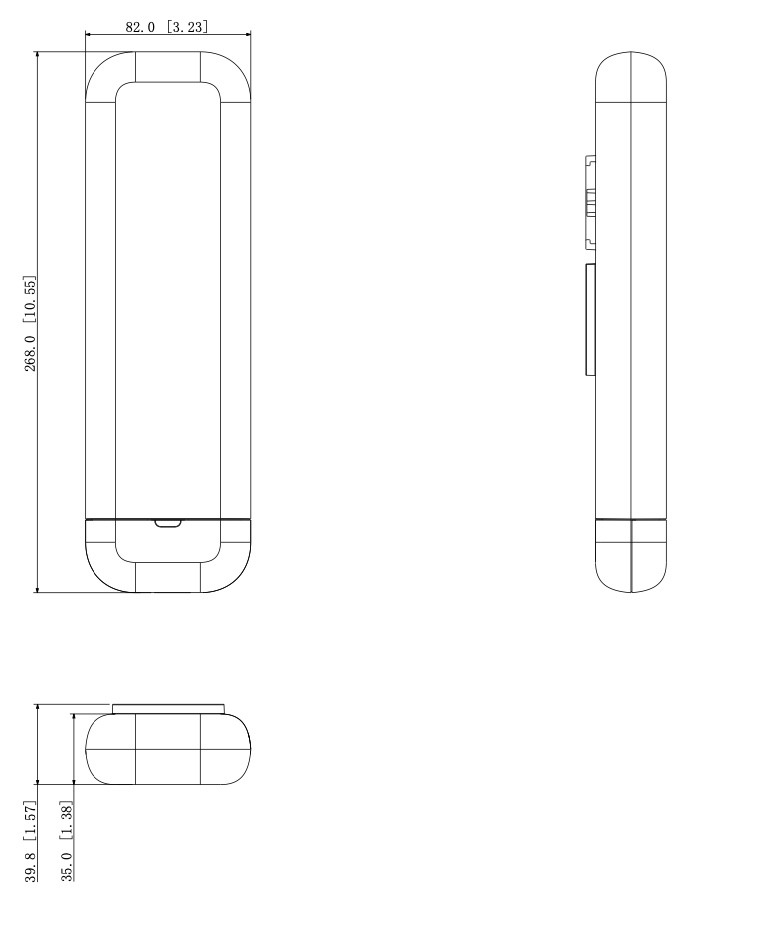

  • Dimensions: 268x82x35mm

Data sheet

WBC5-45AC-03P

Hardware

interface

1× PoE RJ–45 (1000Mbps);

1 × LAN RJ–45 (100Mbps)

Power Module Connector

1 × PoE RJ–45(IN: 30W)

Wireless Standard

2.4GHz: 802.11b/g/n;

5GHz: 802.11a/n/ac

Power Supply

PoE IN: 802.3at;

PoE OUT: 802.3af

Included Power Adapter

Yes

Included Antenna

Yes

Ethernet Ports

2

Ethernet Port Speed

10/100/1000Mbps

Reset Button

1

power consumption

< 30W

External port

2 × RJ–45; 1× Reset

Indicator Light

Installation

Pole mount
