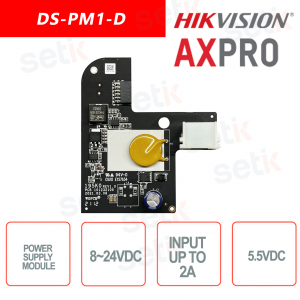

DS-PM1-D - AX PRO Power Supply Module

DS-PM1-D - AX PRO Power Supply Module
NEW -35%

AXPRO HIKVISION

DS-PM1-D - Hikvision AXPro Low voltage power supply module 8 ~ 24V , Current input up to 2A, Current output 2A, 5.5VDC, Dimensions 80x90x15mm




Reference: DS-PM1-D

Brand: Hikvision

EAN: 6941264099703

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


HIKVISION: NET PRICES×


THIS PRODUCT IS ONLINE AT A SPECIAL PRICE!
Check out the other products that are part of the promotion! Prices valid until 30.04.2025
Netti Hikvision

ALARM HIKVISION×


  SPECIAL DISCOUNTS AND FREE SHIPPING!
DS-PWA64-Kit-WE |  DS-PWA96-M2H-WE  |  DS-PWA96-Kit-WE
 Take advantage now >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

AXPro Hikvision Alarms

Hikvision AXPro Alarms

DS-PM1-D | POWER SUPPLY MODULE COMPATIBLE WITH AX PRO CONTROL PANELS

DS-PM1-D Power Supply Module - Hikvision AX Pro Low voltage power supply module 8 ~ 24V , Current input up to 2A, Current output 2A, 5.5VDC, Dimensions 80x90x15mm


DS-PM1-D AX Pro Power Supply Module

Main features

- Compatible with AX PRO control panels
- Easy Installation
- Power supply 8 ~ 24 VDC
- Dimensions: 80 x 90 x 15mm

Documentation: Brochure |

Data sheet

DS-PM1-D
Electrical characteristics
Power supply 8 ~ 24 VDC
Operation humidity 10% to 90% (No condensing)
Operation temperature -10 ° C to +55 ° C (-4 ° F to +122 ° F
Input Current Up to 2A
Output Current Up to 2A
Output Voltage 5.5 VDC
General
Dimension (WxHxD) 80 * 90 * 15mm
Weight 35g

AXPRO HIKVISION ALARMS VS AJAX ALARMS. Read our blog article !

AXPRO SYSTEM - BEYOND SAFETY

AXPro is the new intelligent and professional wireless system with latest generation "Tri-X" radio technology. It is a complete solution, supports Video Intruder Verification technology and is versatile as it can be integrated with other security systems such as video surveillance, video door entry systems and access control. It also supports metadata from AcuSense devices and Heat Pro Thermal Cameras. AXPro boasts a simple, intuitive programming interface suitable for both professional and end users.

axpro hikvision alarm system


Simple and intuitive programming

Thanks to the Hik-ProConnect software dedicated to the installer and available both on the portal and in the APP version, the configuration of the system will be extremely simple. The control unit immediately recognizes the radio devices via the Hik-ProConnect APP thanks to scanning via QR Code. Definitely optimized manual activities and installation times. After configuring the detectors and accessories, it will be possible to program their parameters and deliver the system to the user.



Management via APP: Hik-ProConnect and Hik-Connect

AXPro Hikvision alarms are compatible with Hikvision Hik-ProConnect Official APPs, dedicated to installers and Hik-Connect , for end users.

Hik-ProConnect:
cloud platform specially designed for installers.
- Time optimization
- Adding devices remotely or on site
- Simplified programming
- Creation of specific rules for the plant
- Remote monitoring of the system
- Identification of any malfunctions and immediate resolution
- Sending of automatic reports
- Reduction of plant visits and increased efficiency

Hik-ProConnect: cloud platform specially designed for end users.
- Complete management of all Hikvision devices / products
- View of the system status
- Arming / disarming of the alarm
- Receive alarm notifications wherever you are
- Monitoring of the status of each individual device [signal level, battery status, ambient temperature]

Download

Download the leaflet Depliant
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
