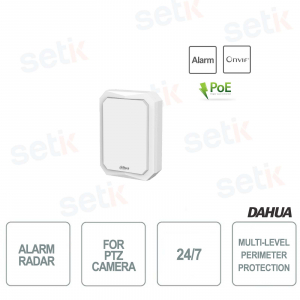

radar alarm for ptz camera from 50m dahua 24/7

radar alarm for ptz camera from 50m dahua 24/7
-57%

Radar Alarm 24 Ghz ONVIF PoE Dahua PFR4K-E50 compatible with 50M PTZ Camera. 24/7 operation. High precision . Target filtering, PTZ radar link, Front-end PTZ control. Centralized management and Smart Tracking . Multi-level Protecion : Different alarm priorities, connection of external alarms, people / vehicle filtering and vehicle detection with low and medium speed. 1 input / 5 alarm outputs. 1 x 256GB microSD slot. 1 RJ 45 (10Base-T / 100Base-TX). IP67 / IK09 protection. Dahua Technology



Reference: PFR4K-E50

Brand: Dahua

FIND INSTALLER

€1,728.03

€4,018.68 -57%
taxes included
Tax included
 Available in 5 days

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


RADAR ALARM 24 GHz - ONVIF® POE - FROM 50M - COMPATIBLE PTZ CAMERA - 24/7 - MULTI-LEVEL PROTECTION - DAHUA

Dahua 24 Ghz ONVIF® PoE Radar Alarm - Dahua
50M range - Compatible with PTZ Camera - 24/7 operation - High precision - Target filtering - PTZ radar connection - Front-end PTZ control - Centralized management - Smart Tracking - 1 input / 4 outputs Alarm - 1 256 GB microSD slot - 1 RJ 45 (10Base-T / 100Base-TX) - IP67 / IK09 protection
Multi-level Perimeter Protection: Multiple alarm priorities, connection of external alarms, people / vehicle filtering and low and medium speed vehicle detection

Product Details:

allarme radar per ptz camera da 50m dahua 24/7
  • 24 Ghz ONVIF® PoE Radar Alarm - Dahua
  • 50M radius
  • Compatible with PTZ Camera
  • 24/7 operation - High precision
  • Target filtering
  • PTZ radar connection
  • Front-end PTZ control
  • Centralized management
  • Smart Tracking
  • 1 input / 4 alarm outputs
  • 1 x 256GB microSD slot
  • 1 RJ 45 (10Base-T / 100Base-TX)
  • IP67 / IK09 protection
  • Multi-level Perimeter Protection: Multiple alarm priorities, connection of external alarms, people / vehicle filtering and low and medium speed vehicle detection
  • 24 months warranty

Data sheet

Model PFR4K-E50
Performance
Max. Target Number 64
Distance

Human: 50 m (164.04 ft)

Vehicle: 50 m (164.04 ft)

Detection Angle

Horizontal: 120 °

Vertical: 36 °

Max. Detection Speed 40 km / h, continuous trajectory
Min. Detection Speed 0.6km / h, continuous trajectory
Distance Accuracy ± 1 m (± 3.28 ft)
Angle Accuracy ± 1 °
Max. Area Number 10
Modulation Type FMCW
Scan Frequency 10 Hz
Operating Frequency 24 GHz
Transmission Power <20 dBm (100mW)
Detection Target Type Human and vehicle
Function
Radar + PTZ Smart Tracking Supported on web manager
Track Mode Tour, distance priority, and time priority
Region Setting Alarm area, pre-warning area, and shield area
Environment Mode General, shrub, and capacious
Target Filtering Human and vehicle filtering
Channel Selections Yes
Record Mode Manual record, scheduled record, and alarm record Record priority: Manual> Alarm> Scheduled
Restore Default Settings Restore default settings with one click
Security Mode Authorized user name and password, MAC address binding, HTTPS encryption, IEEE 802.1x, and network access control
Power Output Support 12 V DC power output with maximum 165mA current and 12 V voltage
Map Encoding Yes
Network
Ethernet RJ-45 (10Base-T / 100Base-TX)
Protocol IPv4 / IPv6, HTTP, HTTPS, SSL, TCP / IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, and 802.1x
Interoperability

ONVIF® Profile S&G, CGI

User / Host 19
Storage NAS; local PC; micro SD card (256 G)
Browser

IE: Versions later than IE7

Google: Versions earlier than Chrome45

Firefox: Versions earlier than Firefox46

Matched Platform DSS
Port
Alarm Input 1 channel (support 5V DC potential and 5mA current)
Alarm Output

4 channels (wet contact; support max 12V DC potential and max 300mA current)

1 channel (dry contact; support max 30V DC potential and max 2A current, and max 250V AC potential and max 2A current)

Alarm Linkage Snapshots, radar-PTZ linkage, SD card record, alarm triggering output, and email sending
Alarm Event Radar alarm, scene changing, no SD card, SD card capacity warning, SD card error, network disconnection, IP conflict, full disk, and illegal access
SD card Yes
Indicator Light

Network connection: Yellow

Running status: Red / Green

Power: Green

Power
Power Supply DC 12V (± 30%), AC 24V (± 30%), PoE (802.3at)
Power Consumption

Basic: 10W

Max .: 12W

Environment
Operating Temperature –40 ° C to + 70 ° C (–40 ° F to + 158 ° F)
Operating Humidity ≤95% (RH)
Storage Temperature –40 ° C to + 80 ° C (–40 ° F to + 176 ° F)
Storage Humidity ≤95% (RH)
Ingress Protection IP67 / IK09
ESD

Contact discharge: 6k

Air discharge: 8k

Surge Protection Grade

Common mode: ± 6kV

Differential Mode: ± 2kV

Structure
Color White
Casing ADC12 + PC
Product Dimensions 204.9 × 157.9 × 67.1 mm (8.07 "× 6.22" × 2.64 ")
Packaging Dimensions 256.0 × 208.0 × 171.0 mm (10.08 "× 8.19" × 6.73 ")
Net Weight 1.7 kg (2.20 lb)
Gross Weight 2.2 kg (4.85 lb)
Installation Method Wall-mounted, ceiling-mounted, pole-mounted
Installation Height 2.0 m to 4.0 m (3.0 m recommended) (6.56 ft to 13.12 ft) (9.84 ft recommended)
Installation Position Separate or integrated installation
Certifications
Certifications

CE: EN 50385; EN 55032; EN 55024; EN 55035; EN 50130-4; ETSI EN 301 489-1; ETSI EN 301 489-3; EN 60950-1

CE RED: EN 300440

FCC: FCC Part 15 Subpart B: 2018; ANSI C63.4: 2014

FCC ID: FCC 47 CFR Part 15C

Further details

Standard ONVIF® Onvif , the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems.
PoE power supply The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation.

- Smart Tracking

- Multi-level Protecion: Different alarm priorities, connection of external alarms, people / vehicle filtering and vehicle detection with low and medium speed.

Questa telecamera presenta ingressi e uscite allarme This camera has 1 inputs + 5 alarm outputs
Protezione IP67 IP67 protection from water and dust
1x SD Card Slot (Max 256GB)

12VDC_Aliment
PoE power supply

Power supply DC 12V (± 30%), AC 24V (± 30%), PoE (802.3at)
Italian Guarantee Icon This product is covered by a 24 month warranty.

Download

Download the English brochure

Radar alarm size for ptz 50m dahua 24/7 camera

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
