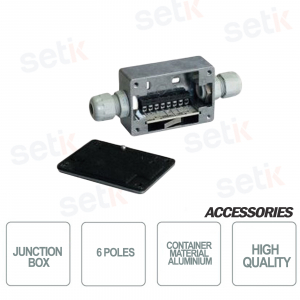

CSA 1463-FR junction box, 6-pole self-protected junction box for connecting line sensors, Microswitch protection against opening, Terminal connections section. max 2,5mm, Standard equipment: 1 PG9 cable gland +1 3/8 gas nut. Container material Aluminum.
FIND INSTALLER
PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
JUNCTION BOX - 6 POLES - ALUMINUM - CSA COOPER
Product details
- Junction box - CSA
- 6-pole junction
- Microswitch protection against opening
- Terminal connections sect. max 2.5 mm2: 6 poles + 2 poles for opening protection
- Inlet for pipe / sheath diam. 16 mm or for PG9- 3/8 gas cable gland - outlet for pipe / sheath diam. 10 mm
- Degree of protection IP 54
- NFA2P TYPE 3, IP 43
- Operating temperature: –25 ° C ÷ + 70 ° C
- Standard equipment: 1 PG9 cable gland +1 3/8 gas nut
