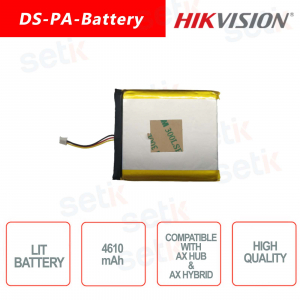

DS-PA-Battery lithium battery for alarm systems - Hikvision. Compatible with AX Hub and AX Hybrid systems.
FIND INSTALLER
https://www.setik.biz/en/accessories-burglar/5570-hikvision-ds-pa-battery-lithium-battery-for-hikvision-alarm-systems.html
€73.75
€113.46 -35%
taxes included
discover the available quantity
DS-PA-BATTERY | LITHIUM BATTERY FOR AX HUB AND AX HYBRID ALARM SYSTEMS
Features:
- Compatible with AX Hub Panel or AX Hybrid Plastic Shell as a backup power supply
- Supports AXHub and autonomy for 12 hours
Data sheet
| DS-1663ZJ | ||
| Items | Specification | Remark |
| Minimal Capacity (Cmin) | 4520 mAh | |
| Typical Capacity | 4610 mAh | |
| Typical Voltage | (3.8 * 1S1P) V | |
| Charge Cut-off Voltage | (4.35 * 1S1P) V | |
| Voltage at End of Discharge | (3.0 * 1S1P) V | |
| Charge / Discharge | Cell Surface Temperature | |
| Charge |
<0 c="" or=""> 60 ° C 0 ° C to 10 ° C 10 ° C to 45 ° C 45 ° C to 60 ° C |
Charging prohibited ≤ 0.2 Cmin max CC to 4.35 V then CV to 0.05 Cmin ≤ 0.5 Cmin max CC to 4.35 V then CV to 0.05 Cmin ≤ 0.5 Cmin max DC to 4.10 V |
| Discharge |
-20 ° C to 15 ° C 15 ° C to 60 ° C |
0.2 Cmin max to 3.0 V 0.5 Cmin max to 3.0 |
| Storage Temperature |
-20 ° C to 45 ° C -20 ° C to 35 ° C -20 ° C to 25 ° C |
1 month recovery capacity≥ 85% 3 month recovery capacity≥ 85% 12 month recovery capacity≥ 85% |
| Pack Weight (Approx) | 80 g | Cell weight (~ 65 g) |
| Diemension | 59 × 69 × 8 (mm) | |
Download
Download the English brochure
