ARB1606 Dahua Communication module Relay Alarm with alarm inputs / outputs for connection to alarm devices (sirens etc ...) via RS485 interface.
FIND INSTALLER
€32.53
€75.64 -57%PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!

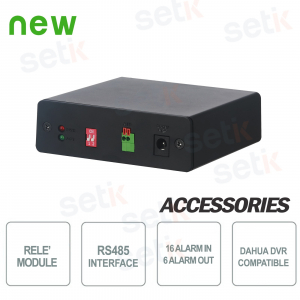

RS485 RELAY ALARM MODULE FOR DAHUA RECORDERS
RS-485 communication module - Dahua Technology Relay alarm box with alarm inputs / outputs - Compatible with Dahua recorders
Useful for connection to ntifurti or other instruments and / or to activate external peripherals (gates, sirens, etc.)
|
ARB1606 | WHAT IS AND WHAT IS IT USED FOR? It is an external module compatible with DAHUA recorders and allows increasing the number of alarm inputs / outputs. It is possible to connect up to a maximum of 4x ARB1606 to the same recorder to have a total of 64 alarm inputs and 24 alarm outputs . Your surveillance system will turn into an alarm system , because thanks to the ARB1606, you can connect: PIR alarm sensors, smoke sensors, anti-intrusion barriers, magnetic sensors, panic buttons, etc.
Note: the ARB1606 is only compatible with certain recorder models. We recommend checking the Dahua website for compatibility.
|
Product details
- Dahua RS-485 communication module
- Provides alarm inputs / outputs for connection to burglar alarms or other instruments and / or to activate external peripherals (gates, sirens, etc.)
- 16 inputs + 6 alarm outputs
- Compatible with Dahua recorders
- Access to back-end storage via RS485 access
- Equipped with a 2-bit DIP switch (0/1)
- Supports up to 4 alarm boxes with access to the recorder
- Supports 12V universal power supply;
- Front LED indicator for power supply
- Front LED status indicator x "alarm-DVR box" communication
- The connected alarm can be configured on the alarm input / output interface when the communication between the alarm box and the DVR is established
Data sheet
| Model | ARB1606 | |||
| Communication |
1 RS485 port |
|||
| DIP Switch | 2-bit | |||
| Alarm in | 16ch | |||
| Alarm out | 6ch | |||
| Power Supply | 12V / 1A (or use 1 to 2 power cable to use the DVR power) | |||
| Power Consumption | 0.2W | |||
| Operating Temperature | -10 ° C ~ + 55 ° C (+ 14 ° F ~ + 131 ° F) | |||
| Operating Humidity | 10% ~ 90% RH | |||
| Dimensions | 97.68mm × 90.3mm × 33mm (3.85 "x 3.56" x 1.3 ") | |||
| Net weight | ? 0.2kg (0.44lb) | |||
| Installation | Desktop installation | |||
| Certifications |
FCC: Coming Soon |
|||
