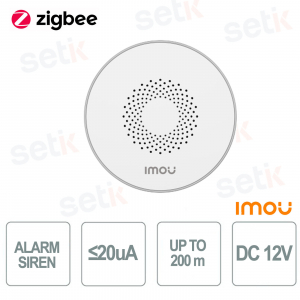

Siren DC 12V ≥85dB 2.4GHz Zigbee protocol - Imou

Siren DC 12V ≥85dB 2.4GHz Zigbee protocol - Imou
QUESTIONS ABOUT THE PRODUCT

 
-5%

ZR1-EU-IMOU - Wireless siren. Working voltage: DC 12V Operating temperature -14℉ to +131℉ - Sound ≥85dB - Dimensions Φ80x34mm - Zigbee wireless protocol Frequency 2.4GHz, Communication up to 200m. Imou



Reference: ZR1-EU-IMOU

Brand: IMOU

EAN: 6971927233779

FIND INSTALLER

€23.74

€24.99 -5%
taxes included
Tax included
 Available in 5 days
 starting

PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%




WHO IS IMOU?

Imou is not an anonymous Chinese brand, but it is the newest brand launched by Dahua Technology , a world leader in video surveillance, for its Consumer IoT products. Imou uses intelligent technologies in order to better protect its customers, a philosophy also confirmed by the official motto " Enjoy Smart Life ". Trust Imou and fully enjoy its advantages.


ZR1-EU-IMOU | SIREN - FREQUENCY 2.4 GHz

Wireless Siren. Working voltage: DC 12V Operating temperature -14℉ to +131℉ - Sound ≥85dB - Size Φ80x34mm - Zigbee wireless protocol Frequency 2.4GHz, Communication up to 200m. Imou

Product details

ZR1-EU-IMOU

ZigBee

ZigBee is a wireless communications standard, based on the IEEE 802.15.4 specification developed by the ZigBee Alliance .
In 2014, ZigBee 3.0 was introduced, a major upgrade that unifies various application profiles, overcoming the interoperability limitations of previous versions. ZigBee 3.0 simplifies the ZigBee ecosystem, grouping it into two main sectors: one dedicated to energy efficiency and one to home automation. This change has improved the integration and interoperability between different devices, making ZigBee an ideal solution for the creation of smart homes and energy automation systems.

Alarm Notifications

The alarm station will activate a local security siren and send an instant alert to your smartphone whenever the detector detects motion, keeping you aware of what's happening at home from anywhere.

Alarm Notifications - ARD311-SW-IMOU

Always connected via IMOU APP!

Real-time monitoring via IMOU application. You can check what happens when the sensor is triggered

Technical data sheet

ZR1-EU-IMOU
General
Appearance size Φ80x34mm
Working voltage DC 12V
Standby current: ≤20uA
Working current ≤250mA
Low pressure alarm 2.6±0.2V
Operating temperatures -14℉to+131℉
Installation method wall/ceiling
Sound
Buzzer sound pressure ≥85dB
Network
Wireless protocol Zigbee3.0
Transmit frequency 2.4GHz
Transmit power ≤15dBm
Communication distance 200m
Receiving sensitivity -96dBm

Further details

Model Notes Zigbee 3.0 support Diet WI-FI Alexa & Google Support Requires Gateway
KIT-Alarm(ZG2)-EU-5-IMOU ZG2 Complete Kit ✔ Cable ✔ ❌ ❌
ZG1-EU-IMOU Alarm Gateway ✔ Cable ✔ ❌ ❌
ZG2-EU-IMOU Alarm Gateway ✔ Cable ✔ ❌ ❌
ZP1-EU-IMOU Motion Sensor ✔ Drums ❌ ❌ ✔
ZD1-EU-IMOU Door/window sensor ✔ Drums ❌ ❌ ✔
ZR1-EU-IMOU Siren Alarm ✔ Drums ❌ ❌ ✔
ZE1-EU-IMOU Emergency Button ✔ Drums ❌ ❌ ✔
ZTM1-EU-IMOU Temperature Sensor ✔ Drums ❌ ❌ ❌
ZL1-EU-IMOU Flood Sensor ✔ Drums ❌ ❌ ✔
ZGA1-EU-IMOU GAS Sensor ✔ Drums ❌ ❌ ✔
KIT-TRV1-EU-2-IMOU Gateway Kit + 1 Valve
Thermostatic		 ✔ Cable ✔ ✔ ❌
IOT-TRV1-EU-IMOU Thermostatic Valve ✔ Drums ❌ ✔ ✔
ZR1-EU-IMOU Bunker

Download

Brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
