The PIE-1 is an advanced encoder that converts analog relay outputs into original ASCII codes (Redwall Event Code), making it ideal for integration with Redwall and Fiber SenSys detectors. This device allows the detectors to be connected to video management software platforms, allowing control of IP cameras. The PIE-1 generates and transmits the Redwall Event Code using analog alarm inputs, allowing the video management software to receive the event code and send commands to reposition the cameras to predefined settings or start recording.
Compatible with Power over Ethernet (PoE) IEEE802.3 af/at , the PIE-1 simplifies installation by requiring only a single LAN cable for power and data connection, reducing time and costs. Ideal for those looking for an efficient integration solution for advanced video surveillance systems.
FIND INSTALLER
€155.96
€229.36 -32%CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives

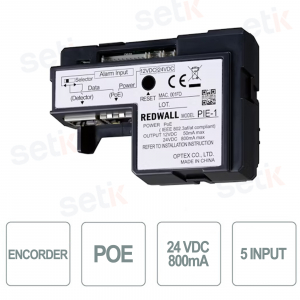

POE IP ENCORDER - PIE-1 - OPTEX
Product details
- PoE Power Supply 24 VDC 800mA
- 5 entry for co
- Redwall Event Code
- Dimensions 67.5mm x 94.7mm x 33mm
Technical data sheet
| PIE-1 | |
| Power supply | PoE (IEEE802.3af/at compliant) |
| Power output | 24 VDC 800 mA max, 12 VDC 50 mA max |
| Signal input | 5 inputs for dry contacts (NC only) |
| Place of use | Outdoor (Inside of the waterproof case) |
| Alarm output | Redwall Event Code (UDP/TCP) |
| Operating temperature | -40 to +60˚C (-40 to +140˚F ) |
| Operating humidity | 95%RH max |
| LED Operation (Normal) | Green light is ON when the power is supplied by PoE |
| Operation LED (When communicating) | Yellow light blinks during communication |
| Switch | Ethernet converter / LAN through |
| Function setting | Use web browser |
| Dimensions | 67.5 mm x 94.7 mm x 33 mm (3.66” x 3.73” x 1.30”) |
| Weight | 270 g (8.8 oz: including all parts) Main unit: 90 g (3.2 oz) |
| Supported protocols | IPv4, ARP, UDP, TCP, ICMP, HTTP |
