Face recognition module - Mifare 13.56Mhz card reader - Fingerprint reader

Face recognition module - Mifare 13.56Mhz card reader - Fingerprint reader
-35%

HIKVISION DS-K1T343MFWX expansion module - Face recognition terminal - Mifare 13.56Mhz card reader - Fingerprint reader - 2MP camera - Integrated 4.3 inch LCD capacitive touchscreen display - Wi-Fi - LAN 10/100M - RS485 - Wiegand - Lock Output - Exit Button - Wall or pedestal installation - For indoor use.



Reference: DS-K1T343MFWX

Brand: Hikvision

EAN: 6931847137106

FIND INSTALLER

€291.82

€448.96 -35%
taxes included
Tax included
 Available in 5 days

PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%




Made by Hikvision

DS-K1T343MFWX | EXPANSION MODULE FOR FACE RECOGNITION, READING MIFARE CARDS AND FINGERPRINTS - INTEGRATED 4.3 INCH LCD DISPLAY

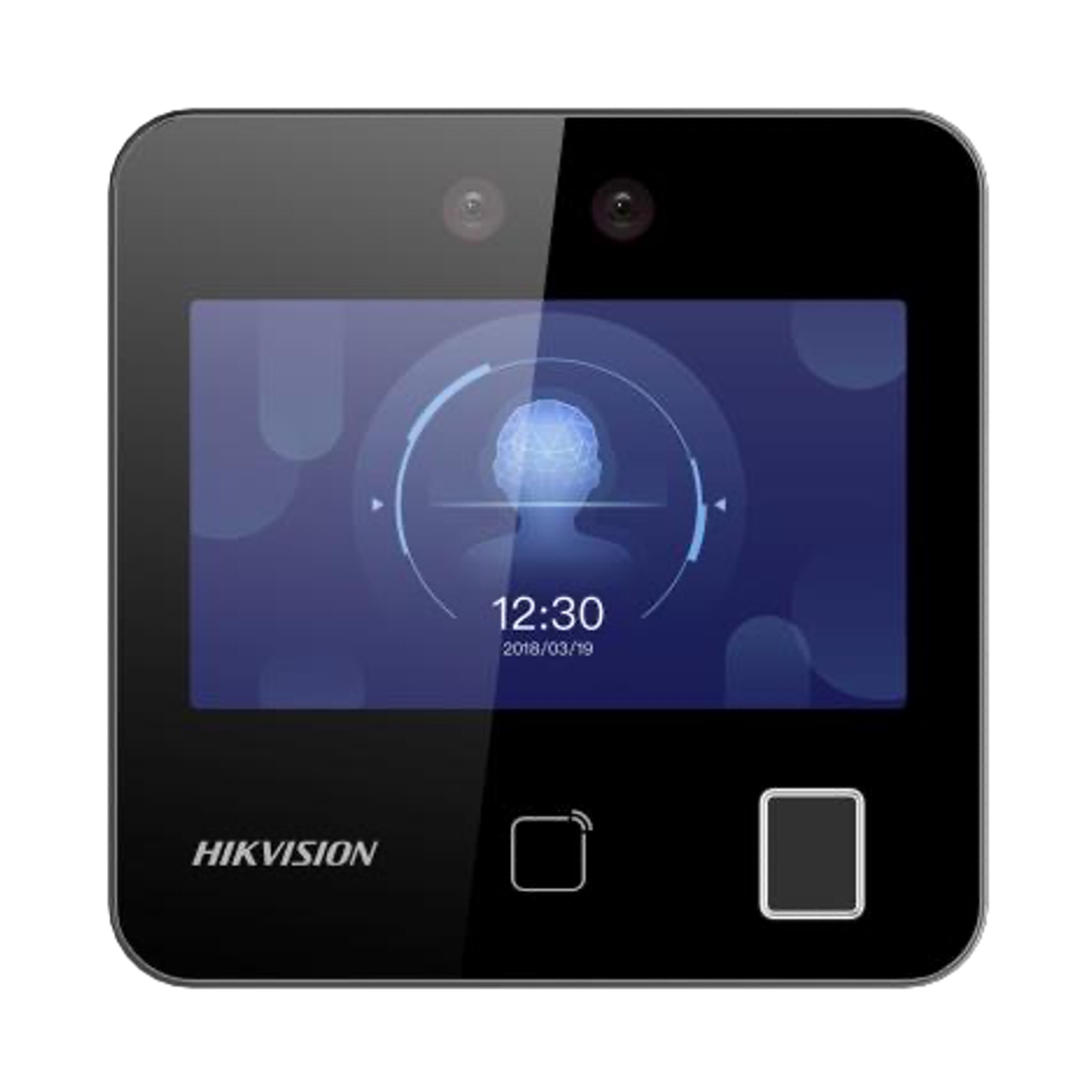

This Hikvision product is a module for face recognition, for reading Mifare 1 13.56Mhz cards and for reading fingerprints - 4.3 inch LCD capacitive touchscreen display - 2MP camera with double lens - Supports WIFI and TCP/IP communication LAN 10/100M - RS485 - Wiegand - Lock Output - Exit Button - Tamper - USB - 3,000 cards, 1,500 faces, 3,000 fingerprints, 150,000 events (storage) - For wall or base installation - For indoor use.

SCREEN and CAMERA:

with size of 4.3" LCD, 2MP camera with dual lens

Capacitive touch screen with 480x272 resolution

AUTHENTICATION:

supports face recognition, as well as reading of Mifare 1 13.56Mhz type access cards and fingerprints

RECORDING CAPACITY:

up to 1,500 faces, 3,000 cards, 3,000 fingerprints and 150,000 recordable events

COMMUNICATION

It supports Wi-FI communication and 10/100M LAN

RS485 and WIEGAND

It supports WIegand and RS485 interface.

It also supports Door Contact input, Tamper, Lock output, Exit Button, and USB interface

USE:

For indoor use .

INSTALLATION:

Designed for wall or pedestal installation.

DIET:

Power supply included.

Power Supply: 12VDC/1A

Data sheet

DS-K1T343MFWX

System

Operation system

Linux

Display

Dimensions

4.3-inch

Resolution

480×272

Type

LCDs

Operation method

capacitive touch screen

Video

Pixels

2MP

lens

×2

Standard videos

PAL (Default) and NTSC

Network

Wired networks

10M/100M self-adaptive

Wifi

Support

interface

Network interface

1

RS-485

1

Wiegand

1

Lockout

1

Exit button

1

Door contact input

1

TAMPER

1

USB

1

Capacity

Card capacity

3,000

Face capacity

1,500

Fingerprint capacity

3,000

Event capacity

150,000

Authentication

card type

Mifare 1 card

Card reading frequency

13.56MHz

Face recognition duration

?0.2s

Face recognition accuracy rate

?99%

Face recognition distance

0.3 to 1.5m

Fingerprint recognition duration

?1s

Function

Face anti-spoofing

Support

Sound prompts

Support

Time synchronization

Support

General

power supplies

12VDC/1A (power adapter included)

Working temperatures

-10°C to 40°C (14°F to 104°F)

Working humidity

0 to 90% (No condensing)

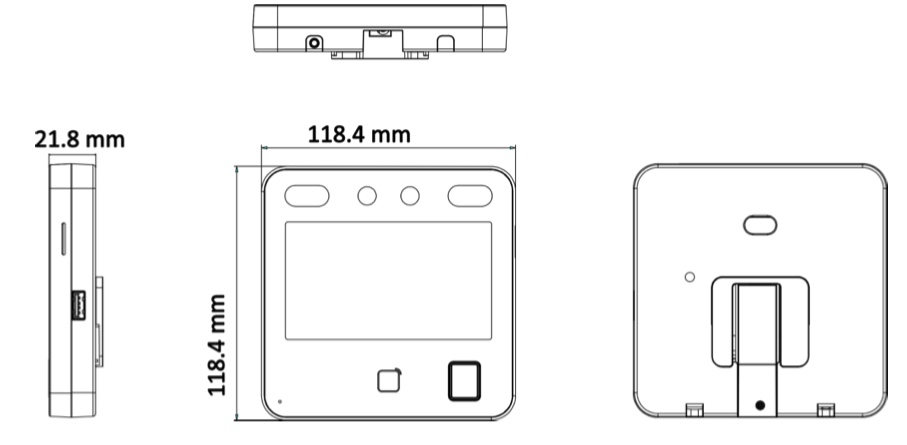

Dimensions

118.4mm × 118.4mm × 21.8mm (4.66" × 4.66" × 0.86")

Application environment

indoors

Installation

wall mounting; Base Mounting

Weight

Gross weight: 0.71 kg (1.57 lbs) Net weight: 0.23 kg (0.51 lbs)

Language

English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean; Japanese

Further details

Downloads

Download the English brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
