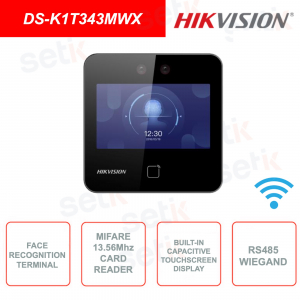

HIKVISION DS-K1T343MWX expansion module - Face recognition terminal - Mifare 13.56Mhz card reader - 2MP camera - Integrated 4.3 inch LCD capacitive touchscreen display - Wi-Fi - LAN 10/100M - RS485 - Wiegand - Lock Output - Exit Button - Wall or pedestal installation - For indoor use.
FIND INSTALLER
PRODUCT NOT AVAILABLE, DISCOUNT NOW 5%
DS-K1T343MWX | EXPANSION MODULE FOR FACE RECOGNITION, MIFARE CARD READING - INTEGRATED 4.3 INCH LCD DISPLAY AND 2MP CAMERA
SCREEN and CAMERA: with size of 4.3" LCD, 2MP camera with dual lens Capacitive touch screen with 480x272 resolution |
AUTHENTICATION: supports face recognition, as well as reading of Mifare 1 13.56Mhz type access cards |
RECORDING CAPACITY: up to 1,500 faces, 3,000 cards and 150,000 recordable events |
COMMUNICATION It supports Wi-FI communication and 10/100M LAN |
RS485 and WIEGAND It supports WIegand and RS485 interface. It also supports Door Contact input, Tamper, Lock output, Exit Button, and USB interface |
USE: For indoor use. |
INSTALLATION: Designed for wall or pedestal installation. |
DIET: Power supply included. Power Supply: 12VDC/1A |
Data sheet
| DS-K1T343MWX | |
System | |
Operation system | Linux |
Display | |
Dimensions | 4.3-inch |
Resolution | 480×272 |
Type | LCDs |
Operation method | capacitive touch screen |
Video | |
Pixels | 2MP |
lens | ×2 |
Standard videos | PAL (Default) and NTSC |
Network | |
Wired network | 10M/100M self-adaptive |
Wifi | Support |
interface | |
Network interface | 1 |
RS-485 | 1 |
Wiegand | 1 |
Lockout | 1 |
Exit button | 1 |
Door contact input | 1 |
TAMPER | 1 |
USB | 1 |
Capacity | |
Card capacity | 3,000 |
Face capacity | 1,500 |
Event capacity | 150,000 |
Authentication | |
card type | Mifare 1 card |
Card reading frequency | 13.56MHz |
Face recognition duration | ?0.2s |
Face recognition accuracy rate | ? 99% |
Face recognition distance | 0.3 to 1.5m |
Function | |
Face anti-spoofing | Support |
Sound prompts | Support |
Time synchronization | Support |
General | |
power supplies | 12VDC/1A (power adapter included) |
Working temperatures | -10°C to 40°C (14°F to 104°F) |
Working humidity | 0 to 90% (No condensing) |
Dimensions | 118.4mm × 118.4mm × 21.8mm (4.66" × 4.66" × 0.86") |
Application environment | indoors |
Installation | wall mounting; Base Mounting |
Language | English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean; Japanese |
