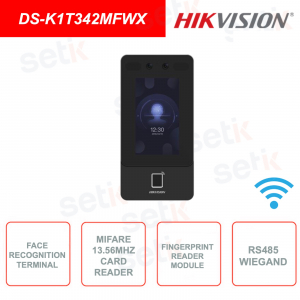

HIKVISION DS-K1T342MFWX expansion module - Face recognition terminal - Mifare 13.56Mhz card reader and fingerprint reader - 2MP camera - Integrated 4.3 inch LCD capacitive touchscreen display - Wi-Fi - LAN 10/100M - RS485 - Wiegand - Lock Output - Exit Button - Wall installation - IP65 protection.



Reference: DS-K1T342MFWX

Brand: Hikvision

FIND INSTALLER

€316.41

€486.78 -35%
taxes included
Tax included
 Available in 5 days



Made by Hikvision

DS-K1T342MFWX | EXPANSION MODULE FOR FACE RECOGNITION, READING MIFARE CARDS AND FINGERPRINTS - INTEGRATED 4.3 INCH LCD DISPLAY AND 2MP CAMERA

This Hikvision product is a face recognition and Mifare 1 13.56Mhz card reading module, in addition to fingerprint reading - Integrates a 4.3 inch LCD capacitive touchscreen display 2MP camera with double lens - Supports WIFI and TCP/IP communication LAN 10/100M - RS485 - Wiegand - Lock Output - Exit Button - Tamper - USB - 3,000 cards, 1,500 faces, 3,000 fingerprints, 150,000 events (record storage capacity) - For wall installation - IP65 protection.

SCREEN and CAMERA:

with size of 4.3" LCD, 2MP camera with dual lens

AUTHENTICATION:

supports face recognition, as well as reading Mifare 1 13.56Mhz type access cards and fingerprints

RECORDING CAPACITY:

up to 1,500 faces, 3,000 cards, 3,000 fingerprints and 150,000 recordable events

COMMUNICATION

It supports Wi-FI communication and 10/100M LAN

RS485 and WIEGAND

It supports WIegand and RS485 interface.

It also supports Door Contact input, Tamper, Lock output, Exit Button, and USB interface

PROTECTION:

Equipped with IP65 degree of protection.

INSTALLATION:

Designed for wall installation.

DIET:

Power supply included.

Power Supply: 12VDC/1A

Data sheet

DS-K1T342MFWX

System

Operation system

Linux

Display

Dimensions

4.3-inch

Resolution

272×480

Type

LCDs

Operation method

capacitive touch screen

Video

Pixels

2MP

lens

×2

Standard videos

PAL (Default) and NTSC

Network

Wired networks

10M/100M self-adaptive

Wifi

Support

interface

Network interface

1

RS-485

1

Wiegand

1

Lockout

1

Exit button

1

Door contact input

1

TAMPER

1

USB

1

Capacity

Card capacity

3,000

Face capacity

1,500

Fingerprint capacity

3,000

Event capacity

150,000

Authentication

card type

Mifare 1 card

Card reading frequency

13.56MHz

Face recognition duration

?0.2s

Face recognition accuracy rate

?99%

Face recognition distance

0.3 to 1.5m

Fingerprint recognition duration

?1s

Function

Face anti-spoofing

Support

Sound prompts

Support

Time synchronization

Support

General

power supplies

12VDC/1A (power adapter included)

Working temperatures

-30°C to 60°C (-22°F to 140°F)

Working humidity

0 to 90% (No condensing)

Dimensions

91.3mm × 181.3mm × 24.5mm (3.59" × 7.14" × 0.96")

Installation

Wall Mounting

protective level

IP65

Weight

Gross weight: 0.93 kg (2.05 lbs) Net weight: 0.36 kg (0.79 lbs)

Language

English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean
