Electromagnetic armored lock - Dahua - ASF601A - Reduced consumption - 12V DC power supply - Ideal for use with wooden, metal or fire doors - Weight 1.25Kg - Universal direction (Without distinction right or left, in or out) - Automatic closing ( with automatic closing delay of 15 seconds) - Up to 350,000 uses.
FIND INSTALLER
€87.61
€203.74 -57%LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives

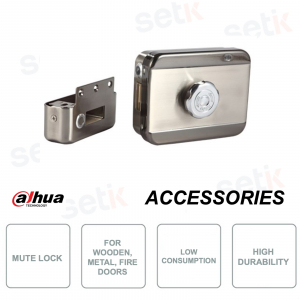

ARMORED ELECTROMAGNETIC LOCK - DAHUA - ASF601A
For wooden, metal or fire protection - Weight 1.25Kg - Universal direction (Without distinction right or left, in or out) - Automatic closing (with automatic closing delay of 15 seconds) - Maximum life guaranteed up to 350,000 uses - Power supply : 12VDC
Product details
- Armored electromagnetic lock - Dahua - ASF601A
- For wooden, metal or fire doors etc
- High durability: up to 350,000 uses
- Low consumption
- 12VDC power supply
- Direction: universal (Indistinctly right or left, in or out)
- Closing: automatic (with automatic 15-second closing delay)
- Wide working temperature: -30°C~+60°C
- Relative Humidity: 10%~95%RH
- Bolt Length: 22mm
Data sheet
| ASF601A | |
Technical Specs | |
Electronic | |
Working voltage | DC12V |
Working current | 20mA |
Starting current | 300mA |
General | |
Applications | Wooden door, metal door, fire door, etc |
life | >100W |
Bolt length | 22mm |
Weight | 1.25kg |
Security type | Keep state while power off |
Working Environment | |
Working humidity | 10%~95%RH |
Working temperatures | -30°C~+60°C |
