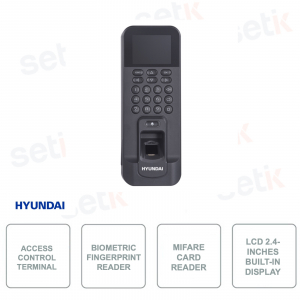

HYU-728 - Hyundai - Access control terminal - With biometric fingerprint reader and MIFARE card reader - Integrated 2.4 inch LCD display - Keypad - 2,000 fingerprints, 3,000 user files, 100,000 events - Status and power LED indicator - 1 door sensor, 1 exit button (REX) - USB 2.0 - Not suitable for outdoor use.
FIND INSTALLER
ACCESS CONTROL TERMINAL - FINGERPRINT READER - MI CARD READER - 2.4 INCH LCD DISPLAY - KEYPAD - HYU-728
HYU-728 - HYUNDAI - Access control terminal
Product details
|
HYUNDAI CATALOG: Are you looking for a HYUNDAI product but couldn't find it on our website? Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email. |
- Access control terminal - Hyundai - HYU-728
- Biometric fingerprint reader
- Mifare card reader
- Integrated 2.4 inch LCD display
- Status and power LED indicators
- Card reading: <1 second
- Fingerprint authentication: <1 second
- Communication: TCP / IP (10/100 Mbps), RS485 (for secure door controller)
- 3,000 fingerprints, 3,000 user cards, 100,000 recordable events
- 1 door sensor, 1 exit button (REX)
- Output interface: 1 lock relay
- USB 2.0 port, type A
- Reset button
- 1 buzzer
- 1 speaker
- Does not support external card readers
- IP42 protection (not suitable for outdoor use)
- Operating temperature of -10°C ~ +55°C
- Power supply: 12V DC / 2A
- Dimensions: 205 x 76.5 x 37mm
Data sheet
| HYU-728 |
|
Features |
|
Integrated Access Control Management |
|
2.4"LCD screen |
|
Supports fingerprint registration from the terminal to the software in remote mode |
|
Up to 3,000 users, 3,000 fingerprints and a maximum of 100,000 events |
|
Two modes of Presence authentication: authentication by person and authentication by device |
|
Autonomous operation: add information of people, cards and fingerprints locally |
|
Export magnetic card data and support reports to USB |
|
Up to 32 normal shifts and up to 32 time shifts can be configured |
|
Up to 32 Presence holiday calendars and up to 128 Access Control holiday schedules can be configured |
|
Generate attendance reports automatically |
|
The doorbell can be connected to third party bells |
|
Tamper alarm and duration alarm |
|
Possibility of connecting an external secure door control unit via RS485 to prevent the door from opening in case of terminal destruction |
|
Supports third party alarm input |
|
Specs |
|
Embedded Linux operating system |
|
2.4 "LCD screen with a resolution of 320 x 240 pixels |
|
Card capacity: Up to 3,000 valid cards |
|
Events: Up to 100,000 events |
|
Attendance records: Up to 150,000 records |
|
Fingerprint capacity: Up to 3,000 fingerprints, up to 10 fingerprints or person |
|
Comparative fingerprint mode: 1: 1 and 1: N, N = 3,000 |
|
Card reading time: <1 second |
|
Footprint authentication time: <1 second |
|
FAR (False Acceptance Rate): ≤0.001% |
|
FRR (False Rejection Rate): ≤0.01% |
|
Fingerprint Recognizer: Optical Module |
|
Does not support external card readers |
|
The integrated card reader supports MIFARE cards, including cards with special shapes |
|
Card reading range: 0 ~ 4.5cm |
|
Non-backlit keyboard |
|
Reset button |
|
Communication interface: TCP / IP (10 / 100Mbps), RS485 (for secure door control unit) |
|
Input interfaces: 1 door sensor, 1 exit button (REX) |
|
Output interface: 1 door lock relay |
|
USB 2.0 port, type A |
|
1 buzzer and 1 speaker |
|
LED indicators for power and status |
|
IP42 degree of protection |
|
Power: 12V DC / 2A |
|
Operating temperature of -10°C ~ +55°C |
|
Operating Humidity: 10% ~ 90%, no condensation |
|
Dimensions: 205 x 76.5 x 37mm |
