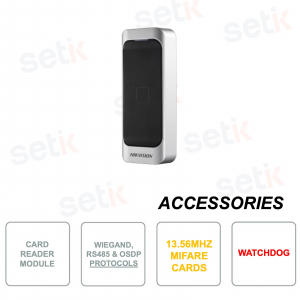

Terminae for Access control - Integrated module Mifare 13.56Mhz card reader - RS-485, OSDP and Wiegand
Expansion Module DS-K1107AM by Hikvision - Mifare 13.56Mhz card reader - Tamper - Integrated buzzer - Supports Wiegand, RS-485 and OSDP protocol - IP65 protection - Watchdog function - Online upgradeable - Integrated buzzer - For wall mounting - Indicators status and operation - Mifare card reading distance up to 50mm.
FIND INSTALLER

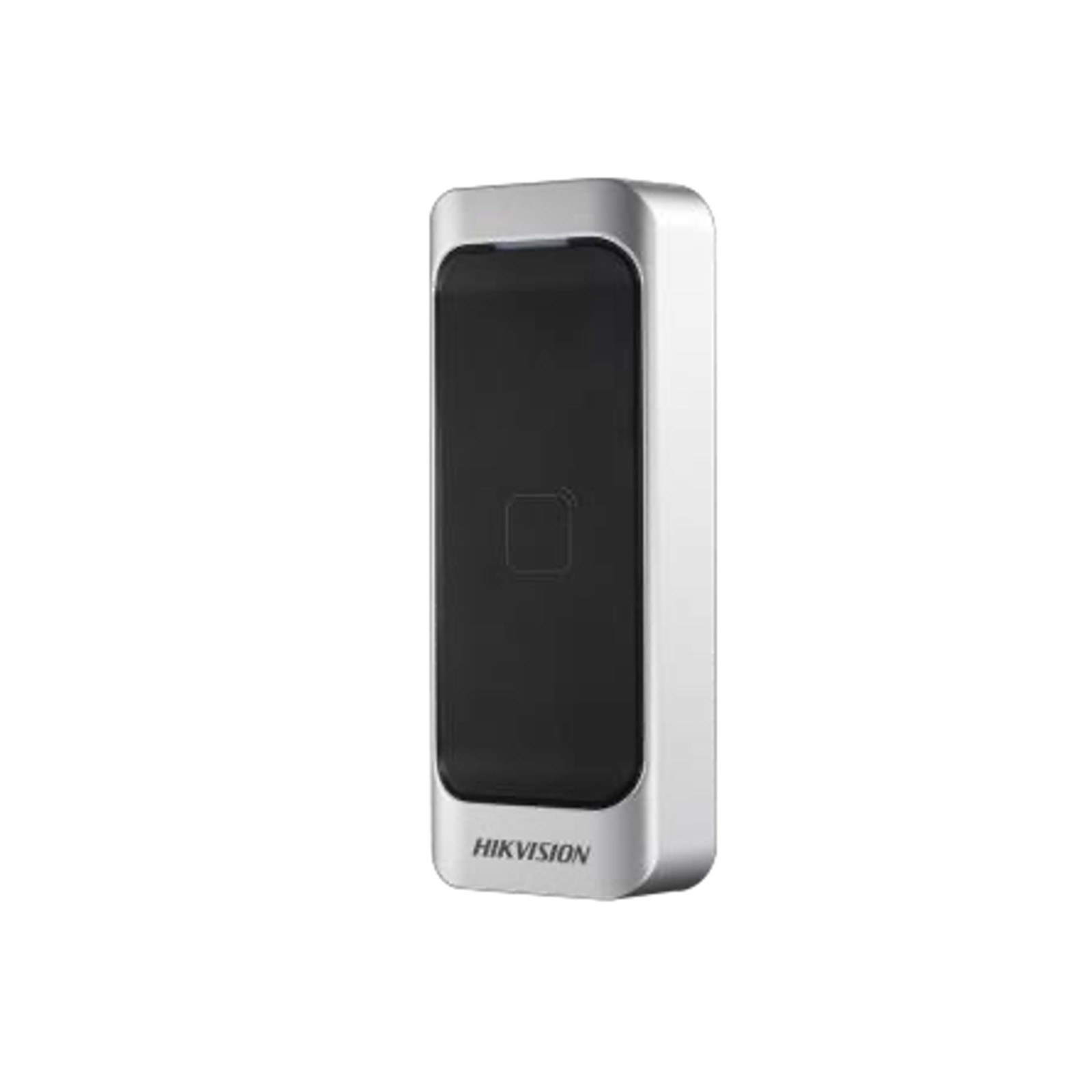

DS-K1107AM | EXTERNAL EXPANSION MODULE - MIFARE CARD READER - IP65 - WIEGAND, RS485 AND OSDP PROTOCOL - HIKVISION
CARD READER: Mifare card reader, with 13.56Mhz reading frequency |
INSTALLATION: For wall mounting, with screws. |
PROTOCOLS: It supports Wiegand, RS485 and OSDP protocols. |
ADVANCED: Integrated buzzer. Watchdog function. Status and power indicators. |
PROTECTION: IP65, protection from dust and water jets Protection against vandalism |
POWER SUPPLY: Power supply 12VDC, 2W max |
Data sheet
| DS-K1107AM | |
System | |
Processor | 32-bit |
Interface | |
TAMPER | Support |
RS-485 | Support |
Wiegand | Support (set via DIP switch) |
Authentication | |
Card reading frequency | 13.56 MHz |
Card reading distance | ≤50 mm (≤1.97 ") |
General | |
Indicator | Power indicator, status indicator |
Power supply | 12 VDC |
Power consumption | ≤2 W |
Working temperature | -20 ° C to 65 ° C (-4 ° F to 149 ° F) |
Working humidity | 10% to 90% (Non Condensing) |
Protective level | IP65 |
Dimensions | 115 mm × 44 mm × 22 mm (4.53 '' × 1.73 '' × 0.87 '') |
Installation | Wall Mounting with Screws; Do Not Support Gang Box |
Buzzer | Support |
