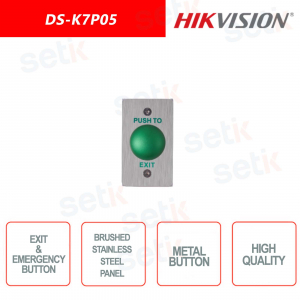

Hikvision exit / emergency button

Hikvision exit / emergency button
-35%

Hikvision DS-K7P05 exit / emergency button. Brushed stainless steel panel, metal button and metal caseback. Aging test: already passed the aging test 500 thousand times. Suitable for all types of doors.

Reference: DS-K7P05

Brand: Hikvision

EAN: 6954273636081

FIND INSTALLER

€47.58

€73.20 -35%
taxes included
Tax included
  Hurry up! Only a few pieces left in our warehouse!
 Last items in stock
discover the available quantity



Made by Hikvision

DS-K7P05 | EXIT / EMERGENCY BUTTON - HIKVISION

Hikvision exit / emergency button. Brushed stainless steel panel, metal button and metal caseback. Suitable for all types of doors.
DS-K7P05

Data sheet

DS-K7P05
Dimensions (LxWxH) 86 × 50 × 44mm (3.39 × 1.97 × 1.73 ")
Structure stainless steel panel, metal button, metal bottom case
Current Rating 3A @ 36VDC Max
Output Contact NO / NC / COM contact
Aging Test already passed 500 thousand times aging test
Suitable Doors all kinds of doors
Accessories equipped with metal bottom case
Working Temperature -10 ° C to + 55 ° C (14 ° F to 131 ° F)
Working Humidity 0 to 95% (relative humidity)
Panel brushed stainless steel panel
Bottom Case polished zinc alloy with chromium electroplating
Product Weight 0.14kg (0.31lb)

Further details

DS-K7P05 installation
DS-K7P05 dimensions

Download

Download the English brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
