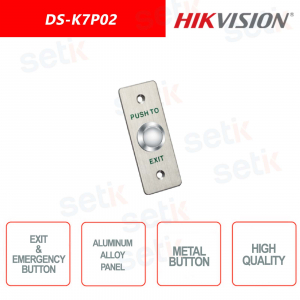

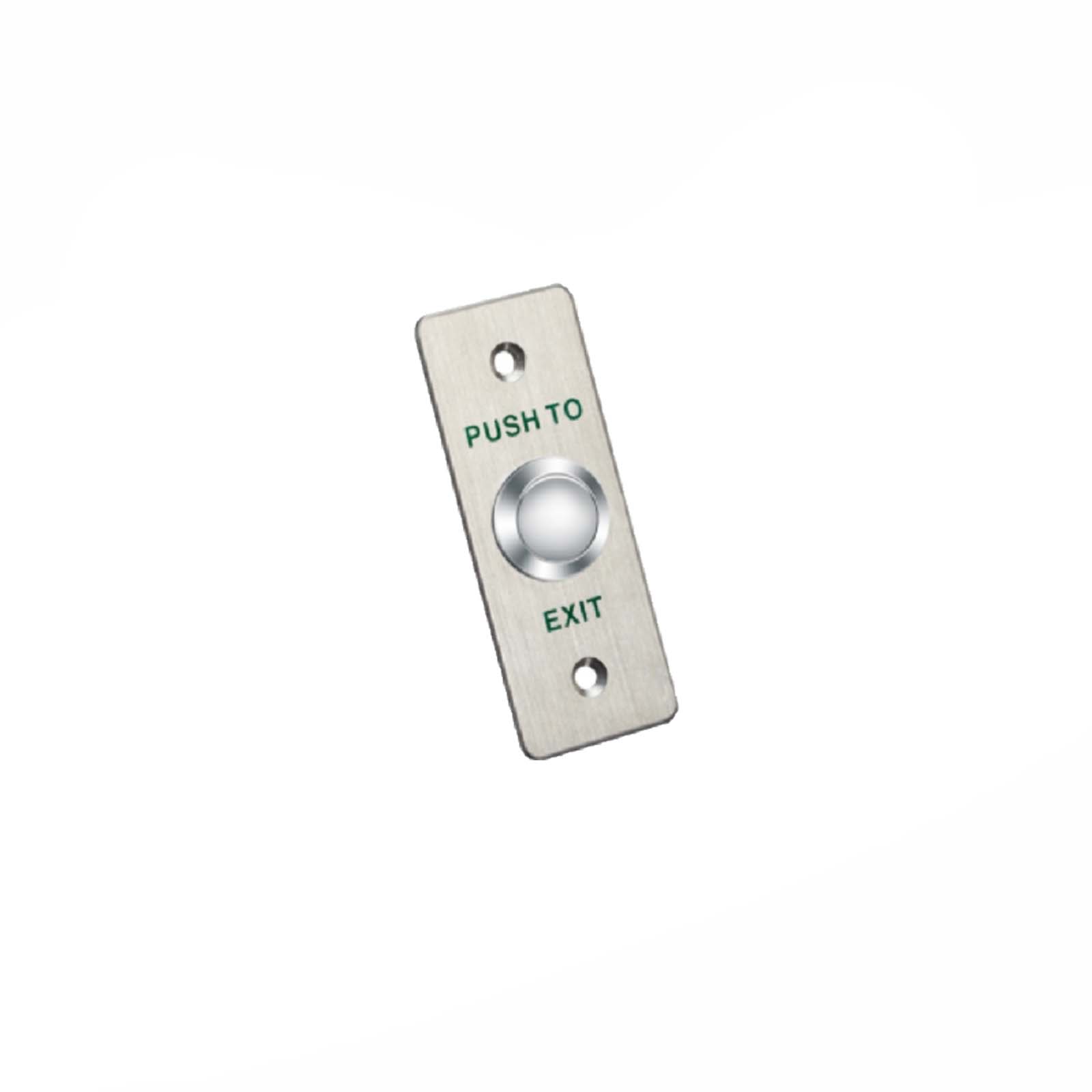

Hikvision DS-K7P02 exit / emergency button. Made of aluminum alloy with sandblasting (panel) and metal (button). Cable holder frame and built-in electrical box.
FIND INSTALLER
DS-K7P02 | EXIT / EMERGENCY BUTTON - HIKVISION
Hikvision exit / emergency button made of sandblasted aluminum alloy (panel) and metal (button). Cable holder frame and built-in electrical box.
Data sheet
| DS-K7P02 | |

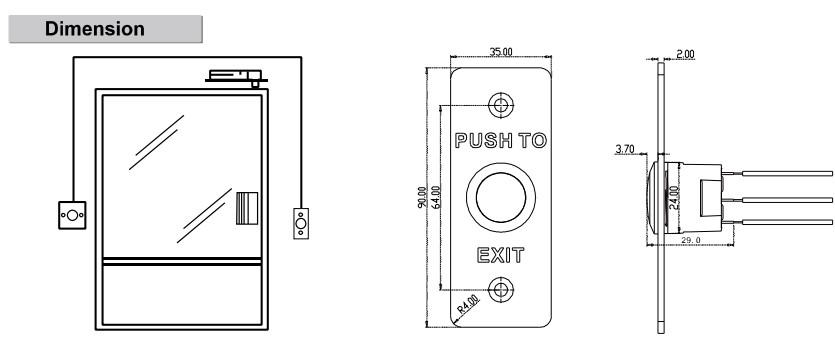

| Dimensions (LxWxH) | 90 × 35 × 28.9mm (3.54 × 1.38 × 1.14 ") |
| Structure | aluminum alloy panel, metal button |
| Current Rating | 3A @ 36VDC Max |
| Output Contact | NO / NC / COM Contact |
| Aging Test | already passed the 500 thousand times aging test |
| Suitable Doors | hollow doorframe and embedded-electric box |
| Working Temperature | -10 ° C to + 55 ° C (14 ° F to 131 ° F) |
| Working Humidity? | 0 to 95% (relative humidity) |
| Panel | aluminum panel with sandblast |
| Product Weight | 0.20kg (0.44lb) |
