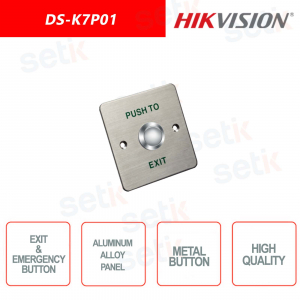

Hikvision DS-K7P01 exit / emergency button. Made of aluminum alloy with sandblasting (panel) and metal (button). Cable holder frame and built-in electrical box.
FIND INSTALLER
DS-K7P01 | EXIT / EMERGENCY BUTTON - HIKVISION
Hikvision exit / emergency button made of sandblasted aluminum alloy (panel) and metal (button). Cable holder frame and built-in electrical box.
Data sheet
| DS-K7P01 | |
| Dimension (L × W × H) | : 86 × 86 × 28.9mm (3.39 × 3.39 × 1.14 ") |
| Structure | aluminum alloy panel, metal button |
| Current Rating | 3A @ 36VDC Max |
| Output Contact | NO / NC / COM Contact |
| Aging Test | already passed 500 thousand times aging test |
| Suitable Doors | hollow doorframe and embedded-electric box |
| Working Temperature | -10 ° C to + 55 ° C (14 ° F to 131 ° F) |
| Working Humidity | 0 to 95% (relative humidity) |
| Panel | aluminum panel with sandblast |
| Product Weight | 0.25kg (0.55lb) |
Further details
Download
Download the English brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification
fill out this form
