DS-K1F100-D8E Expansion Module - HIKVISION - Access card registration station - Supports Mifare card, CPU, PSAM, ID card, and EM card - 2 PSAM Cassettes - Operating temperature from -20 ° C to +65 ° C - Weight 87.6g - Supports Windows XP / 7/10 operating systems - Led indicator for operation and status - Plug & Play, without the need to install peripheral drivers - USB 2.0.
FIND INSTALLER
HIKVISION: NET PRICES×
THIS PRODUCT IS ONLINE AT A SPECIAL PRICE!
Check out the other products that are part of the promotion! Prices valid until 30.04.2025
ALARM HIKVISION×
SPECIAL DISCOUNTS AND FREE SHIPPING!
DS-PWA64-Kit-WE | DS-PWA96-M2H-WE | DS-PWA96-Kit-WE
Take advantage now >>
CLEARANCE SALE ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>

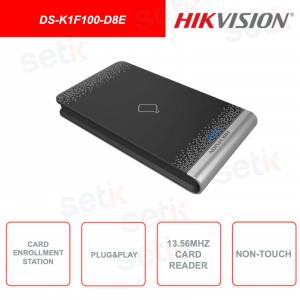

DS-K1F100-D8E | EXTERNAL EXPANSION MODULE - MIFARE, CPU, PSAM, ID CARD, EM CARD RECORDING STATION
|
CARD RECORDING STATION |
|
OPERATING SYSTEM: Works with Windows XP / 7/10 |
|
WEIGHT AND SIZE: Dimensions: 117mm × 67.5mm × 14.3mm |
|
SUPPLY: Power supply 12VDC, 2W max (Supplied by DS-KD8003-IME1 ) |
Data sheet
|
Model |
DS-K1F100-D8E |
|
Card Reading Frequency |
13.56MHz and 125KHz |
|
Card Type |
Standard IC Card, CPU Card, and ID (EM) Card |
|
PSAM Card Cassettes |
2 PSAM Cassettes |
|
Protocol |
ISO 14443 Type A / B Standard and ISO 7816 Standard |
|
Interface |
USB 2.0; Driver Free |
|
LED Light |
LED Indicator: Indicates Power and the Communication Status |
|
Working Temperature |
From -20 ° C to 65 ° C (4 ° F to 149 ° F) |
|
Working Current |
200mA |
|
Dimensions |
117mm × 67.5mm × 14.3mm |
|
Weight |
87.6g |
|
System |
Support Windows, WinXP, Win7 and Win8 |
