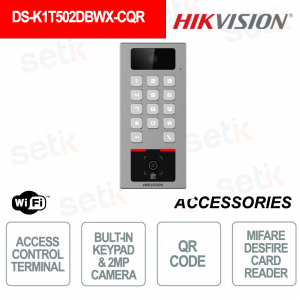

DS-K1T502DBWX-CQR - Access control terminal with 2MP camera - Mifare and Desfire card reader - supports card, PIN, QR code authentication methods - Connection with external card readers via RS-485 - Two-way audio via SIP 2.0. - IP65 and IK09 protection - Record 100,000 cards, 300,000 events - Tamper - WIFI - SD card slot - Wiegand - 1in/1out alarm. HIKVISION
FIND INSTALLER
DS-K1T502DBWX-CQR | ACCESS CONTROL TERMINAL - HIKVISION
-
MAIN FEATURES:
- HIKVISION DS-K1T502DBWX-C(STD) Access Control Terminal
- IP65 and IK09 protection
- Built-in 2MP camera
- Allows multiple authentication
- Integrated reader for Mifare, Desfire and QR code cards
- Card reading distance from 0 to 3cm
- Integrated fingerprint reader
- RS-485 protocol for communication and connection with external card readers
- Two-way audio via SIP 2.0 protocol
- Tamper
- 1in/1out alarm
- Exit Button
- WIFI
- Record:
Up to 100,000 cards
Up to 300,000 events - Supports Hik Connect mobile App
Technical data sheet
| DS-K1T502DBWX-CQR | |
|
Video |
|
|
Lens |
1 |
|
Video compression standard |
H.264 and H.265 |
|
Resolution |
2 MP |
|
FOV |
HFOV = 110°; VFOV = 81°; DFOV = 122° |
|
Network |
|
|
Wired network |
10M/100M self-adaptive |
|
Wi-Fi |
Support, 2.4G, 802.11b/g/n |
|
Bluetooth |
Support |
|
Interface |
|
|
Network interface |
1 RJ-45 10/100 Mbps self-adaptive |
|
Lock control |
1 |
|
Exit button |
1 |
|
Door contact input |
1 |
|
Alarm input |
1 |
|
Alarm output |
1 |
|
TAMPER |
1 |
|
RS-485 |
1, RS-485 (Half duplex,HIKVISION） |
|
Wiegand |
1, Wiegand (Hik 26bit,Hik 34bit) |
|
SD Card Slot |
nothing |
|
Event capacity |
300,000 |
|
Authentication |
|
|
Card type |
CPU card No.;M1 card content;M1 card;DESfire card;Felica card |
|
General |
|
|
Built-in access controller |
Support |
|
Power supply |
12VDC to 24VDC, 1A |
|
Power consumption |
≤12W |
|
Working temperature |
-40℃ ~ +70℃ (-40°F ~ +158°F) |
|
Protection level |
IK09, IP65 |
|
Language |
Arabic, English, French, Indonesian, Italian, Portuguese (Brazil), Russian, Spanish (Europe), Thai, Ukrainian, Vietnamese, German, Polish, Hungarian, Czech, Romanian, Bulgarian, Croatian, Serbian, Greek, Slovak, Portuguese, Dutch, and Turkish |
|
Function |
|
|
Hik-Connect |
Support |
|
Video intercom |
Support |
