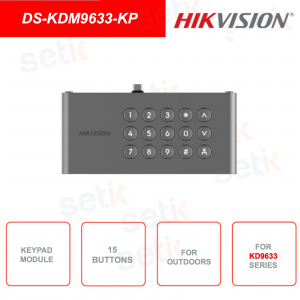

DS-KDM9633-KP Expansion Module - HIKVISION - Keypad for KD9633 series - 15-button keyboard - Backlit - For wall or flush mounting - For outdoor use IP65 and IK07 - In aluminum and plastic - USB-C connection.
FIND INSTALLER
€208.56
€320.86 -35%CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives
DS-KDM9633-KP | OUTDOOR EXPANSION MODULE - KEYPAD - 15 PHYSICAL BUTTONS - IP65 - IK07 - FOR OUTDOORS - FOR KD9633 SERIES
15 PHYSICAL KEYS: The module integrates 15 physical keys. You can contact the location by typing its reference number. |
INSTALLATION: Designed for use with the KD9633 series, this module module can be installed with a flush-mounted or wall-mounted box. |
PROTECTION: IP65, guarantees the protection of the device from dust and water jets. IK07, degree of protection against impact from outside |
CONNECTION: Connection to KD9633 series via USB Type-C (USB-C, USB Type-C). |
Data sheet
| DS-KDM9633-KP | |
Device interfaces | |
USB | 1 USB type-C, only connect to KD9633 |
General | |
Button | 15, keypad |
Installation | Surface mounting & flush mounting |
Weight | 0.31kg |
protective level | IP65 + IK07 |
Working temperatures | -30°C to 60°C (-22°F to 140°F) |
Working humidity | 10% to 90% |
Dimensions | 74mm x 159.2mm x 29.2mm (2.9'' x 6.3'' x 1.1'') |
Application environment | Outdoors |
Material | Aluminum and plastic |
