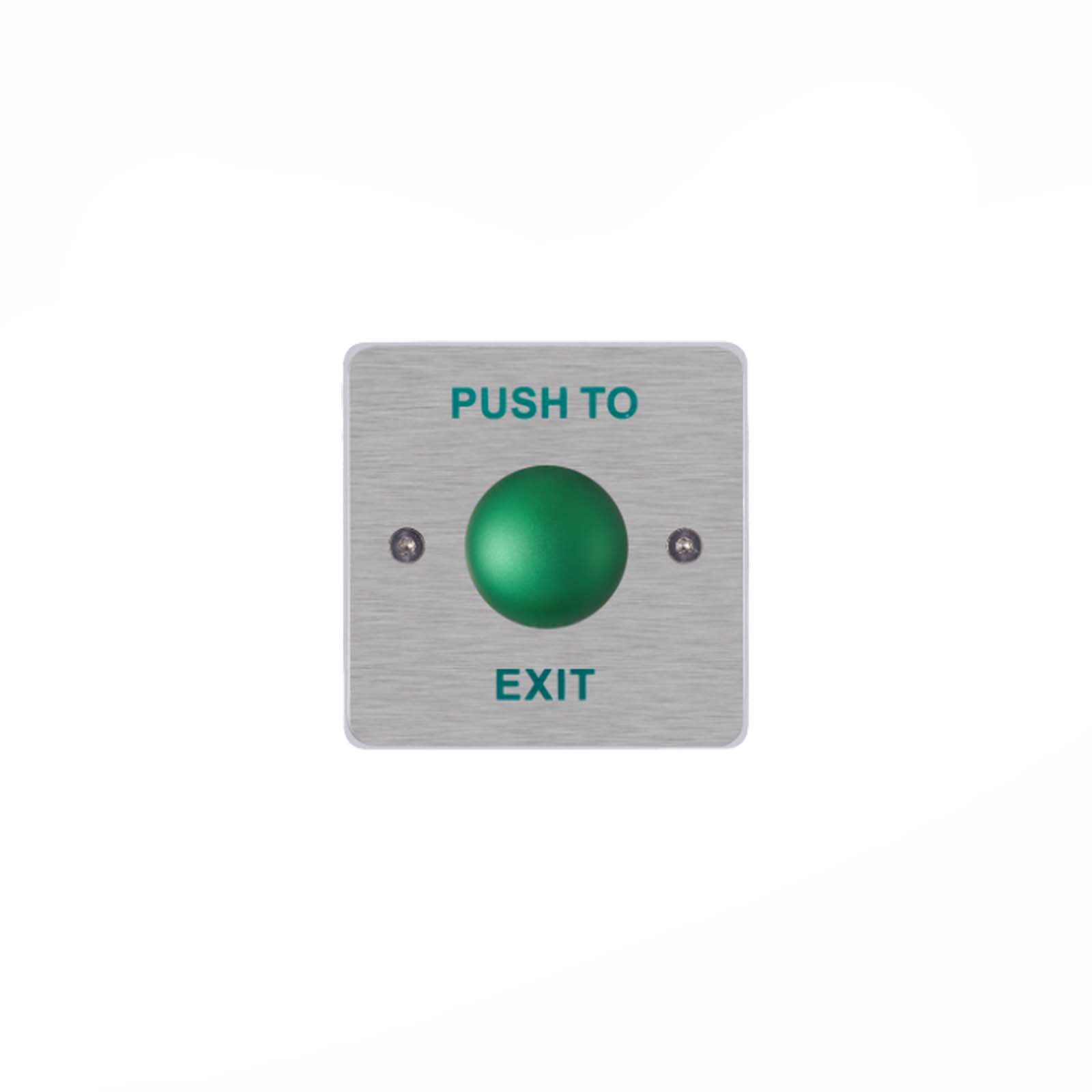

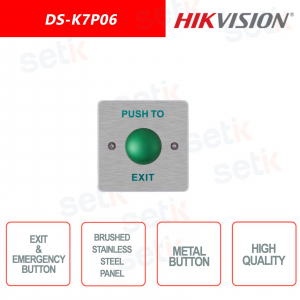

Hikvision DS-K7P06 exit / emergency button. Brushed stainless steel panel, metal button with polished zinc alloy cover and electrolytic chrome plating. Suitable for all types of doors.
FIND INSTALLER
DS-K7P06 | EXIT / EMERGENCY BUTTON - HIKVISION
Hikvision exit / emergency button. Brushed stainless steel panel, metal button with polished zinc alloy cover and electrolytic chrome plating. Suitable for all types of doors.
Data sheet
| DS-K7P06 | |

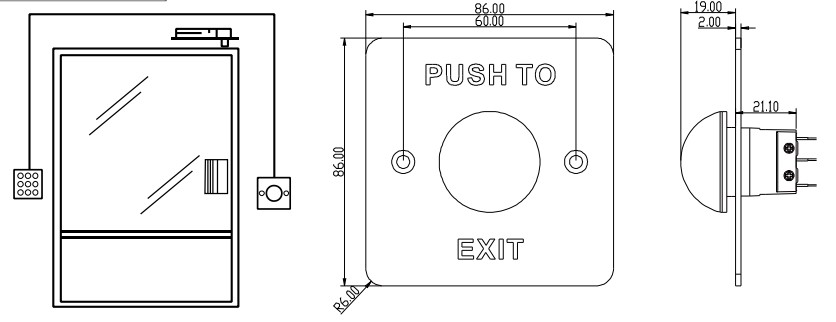

| Dimensions (LxWxH) | 87.7 × 87.7 × 44mm (3.46 × 3.46 × 2.13 ") |
| Structure | stainless steel panel, metal button, metal bottom case |
| Current Rating | 3A @ 36VDC Max |
| Output Contact | NO / NC / COM Contact |
| Aging Test | already passed the 500 thousand times aging test |
| Accessories | equipped with metal bottom case |
| Suitable Doors | all kinds of doors |
| Working Temperature | -10 ° C to + 55 ° C (14 ° F to 131 ° F) |
| Working Humidity | 0 to 95% (relative humidity) |
| Panel | brushed stainless steel panel |
| Bottom Case | polished zinc alloy with chromium electroplating |
| Product Weight | 0.23kg (0.51lb) |
Further details
Download
Download the English brochure
