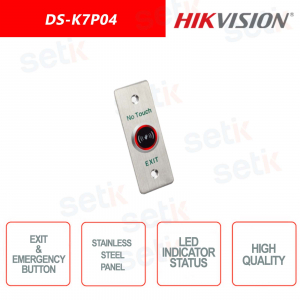

Hikvision DS-K7P04 exit / emergency button. Stainless steel panel, Green / red LED indicator for operation / standby. Time delay adjustable from 1 to 25 s. Suitable for all types of jambs.
FIND INSTALLER
https://www.setik.biz/en/access-control-hikvision-accessories/6317-hikvision-ds-k7p04-hikvision-exit-emergency-button.html
€43.62
€67.10 -35%
taxes included
discover the available quantity
DS-K7P04 | EXIT / EMERGENCY BUTTON - HIKVISION
Exit / emergency button. Stainless steel panel, Green / red LED indicator for operation / standby. Time delay adjustable from 1 to 25 s. Suitable for all types of jambs.
Data sheet
| DS-K7P04 | |
| Dimensions (LxWxH) | 90 mm × 35 mm × 37.7 mm (3.54 "× 1.38" × 1.48 ") |
| Input Voltage | 12 VDC |
| Working Current | 40 mA (standby), 70 mA (working) |
| Current Rating | 1 A @ 30 VDC |
| Output Contact | NO / NC / COM contact |
| Panel | Stainless steel |
| Aging Test | Already passed 1 million? M ?? aging test |
| Suitable Doors | All kinds of narrow doorframes |
| Working Temperature | -20 ° C to 50 ° C (-4 ° F to 122 ° F |
| Working Humidity | 0 to 95%? (Relative humidity) |
| Detection Range (adjustable) | 40 mm to 120 mm (1.57 to 4.72 "). |
| Time Delay | 1 to 25 s (adjustable) |
| LED Indicator Status | Green / red LED indicates working / standby |
| Product Weight | 0.18 kg (0.40 lb) |
