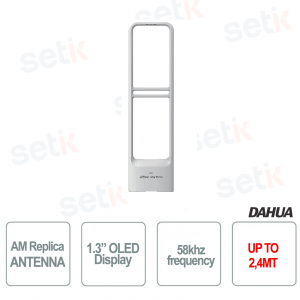

Anti-shoplifting Dahua Antenna AM Barrier Replica ABS 1.3 "OLED 58 kHz display

Anti-shoplifting Dahua Antenna AM Barrier Replica ABS 1.3 "OLED 58 kHz display
QUESTIONS ABOUT THE PRODUCT

 

ISC-EAA2-C001-R M-0030369 Dahua AM antenna (Replica) in ABS for anti-shoplifting system with anti-interference technology. 1.3" OLED display, detection frequency 58 kHz, long detection distance (label/tag detection 2/2.4 m). Compatible with most AM labels and tags, energy saving and environmental protection, power supply 24 Vac <23 w="" --23--="">

Reference: ISC-EAA2-C001-R

Brand: Dahua

FIND INSTALLER



ISC-EAA2-C001-R | EAS AM LITE ANTENNA BARRIER - UP TO 58 KHZ OF FREQUENCY - DETECTION RANGE UP TO 2/2,4MT

Dahua's protection is 360°. For this reason it has created a series of ANTI-SHOPPING products for loss prevention in the retail trade. ISC-EAA2-C001-R is an anti-theft device that can effectively identify AM anti-theft tags. The device can effectively prevent theft of goods, reduce the company's operating costs, and improve the shopping experience of customers. The device has a simple and elegant appearance, with powerful performance and complete functions, and is an important part of the store loss prevention system.


Barriera antitaccheggio dahua AM ISC-EAA2-C001-R

ISC-EAA2-C001-R | AM barrier Anti-shoplifting antenna Replica Dahua

AM antenna (Replica) in ABS, 1.3” OLED display, detection frequency 58 kHz, max. label/tag detection 2/2.4 m, power supply 24 Vac <23 w="" br="">

PRODUCT FUNCTIONS:

  • Anti-theft tag detection: The device can effectively detect and identify AM anti-theft tags within the coverage range.
  • Sound and light alarm: When the tag is detected, the device gives alarms and flashing lights. The device supports a variety of alarm sound effects with adjustable volume.
  • Phase Synchronization: The device supports automatic synchronization of the surrounding phases with one click, so as to effectively avoid the interference of other nearby AM EAS devices.
  • CCTV linkage: The standard CCTV module can output the alarm signal to the monitoring camera, which can then automatically save the video at the time of the alarm for future use.
  • Onboard configuration system: The main board has built-in buttons and screens, allowing you to directly configure the parameters related to the device without having to connect it to a computer.
  • Optional Accessories: Optional advertising boards are used for customers' advertising.



PRODUCT FEATURES:

  • Long sensing distance
  • Stable hardware performance: The high-performance broadcast signal driver cooperates with the multi-stage amplifier, which has stable operation without temperature drift. It can be used for a long time without performance degradation.
  • Strong Anti-Interference Ability: The device has a variety of sensitivity adjustment methods that can effectively resist the interference of ambient noise on the device.
  • Strong signal processing ability: The unique received signal filtering algorithm ensures accurate identification of label signals with low false alarm rate.
  • Integrated transceiver design: The primary and replica antennas are both integrated transceivers and can be used flexibly. The tracking effects of the primary and replica antennas are the same.
  • Wide Application: Compatible with most AM labels and tags.
  • Energy saving and environmental protection: The device is harmless to the human body.
Model ISC-EAA2-C001-R
Frequency 58kHz
Tag detection 2.0-2.4m
Label detection

1.8-2.0m
Antenna body material Acrylic
Bottom shell material

ABS
CCTV port

1 antenna port
Supported software 23W
Input voltage 24VAC at 50Hz / 60Hz
max power consumption 23W
Dimensions and weight 1,500mm x 400mm x 120mm, 5kg
Packaging and weight 1590mm x 490mm x 200mm, 7kg
Operating temperature 0°C-45°C
Certification CE LVD, CE EMC, CE RED, FCC, ROHS





Downloads

Leaflet not available
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
