TELECAMERA WIZMIND PANORAMICA+PTZ MULTI-SENSORE 4MP- AUDIO/ALLARME - IVS DAHUA

Risoluzione 8192× 2700 4Megapixel - Multi-sensore (6x 1/1.8" Panoramica + 1x 1/1.8" PTZ) - Ottica fissa Panoramica 2.8mm - Ottica Varifocale PTZ 5.5-220mm - IR 7 LED 400M - Tecnologia Starlight+ - IVS - Crowd map - Vehicle Density: Limite superiore del parcheggio, allarme di congestione del traffico - 2 ingressi/2 uscite Audio - 7 ingressi/3 uscite Allarme - Smart H.265+/H.264+ - ROI - Defog
Slot MicroSD fino a 256GB - Alimentatore 36V DC (non incluso) - IP66 - IK10 Garanzia 24 mesi
Dettagli prodotto

- Panoramica+PTZ Multi-Sensore ONVIF® - Dahua
- Risoluzione 4Megapixel
- Ottica: 6x Panoramica fissa 2.8mm + 1x PTZ Varifocale
- Multi Sensore: 6x Panoramica Sensore CMOS 1/1.8" + 1x PTZ 1/1.8"
- Tecnologia Starlight+
- Vista panoramica fino a 270°
- Smart H.265+/H.264+
- Day/Night(ICR), 3 D NR, AWB, AGC, BLC, ROI
- Privacy Mask, Defog
- Illuminatore IR 7 LED 400MT
- IVS: Tripwire, Intrusione, Protezione Perimetro
- Vehicle Density: Limite superiore del parcheggio, allarme di congestione del traffico
- Audio: 2 ingressi + 2 uscite
- Allarme: 7 ingressi + 3 uscite
- Slot MicroSD (Max 256GB - non inclusa)
- Alimentatore 36V DC(non incluso)
- Dimensioni 383 mm × 389.8 mm
- Protezione: IP66, IK10
- Garanzia 24 mesi
Scheda tecnica
CAMERA | |
Model | PSDW82442M-A270-D440 |
Camera | |
Image Sensor | 1/1.8”4Megapixel progressive CMOS |
Effective Pixels | 8192 (H) × 2700 (V) |
ROM |
Panoramic network camera: 4 GB PTZ camera: 32 GB |
RAM |
Panoramic network camera: 8 GB PTZ camera: 4 GB |
Scanning system |
Progressive |
Electronic Shutter | Auto/Manual 1/3 s–1/100,000 s |
Min. Illumination |
Panoramic network camera: 0.001 Lux (Color); 0.0002 Lux (B/W) PTZ camera: 0.001 Lux (Color); 0.0001 Lux (B/W); 0 Lux (IR on) |
S/N Ratio | > 56 dB |
Illumination Distance | PTZ camera: ≥ 400 m (1312 ft) (IR LED) |
Illuminator On/Off Control | Auto/Manual/Zoomprio |
Illuminator Number | 7 (IR LED) |
Pan/Tilt/Rotation Range |
Pan: 0° to 355° Tilt: -12° to 90° Rotation: 0°–355° |
Lens | |
Lens Type |
Panoramic network camera: Fixed-focal PTZ camera: Vari-focal |
Mount Type |
Panoramic network camera: M12 PTZ camera: Module |
Focal Length |
Panoramic network camera: 2.8 mm PTZ camera: 5.5 mm-220 mm |
Max Aperture |
Panoramic network camera: F1.6 PTZ camera: F1.35–F4.8 |
Field of View |
Panoramic network camera: Horizontal: 270°, Vertical: 111° PTZ camera: Horizontal: 2.27°–61.4°, Vertical: 1.3°–35.99°, Diagonal: 2.62°–68.18° |
Iris Type |
Panoramic network camera: Fixed PTZ camera: Auto |
Close Focus Distance |
Panoramic network camera: 1.4 m (4.6 ft) PTZ camera: 0.5 m–2 m (1.6 ft–6.6 ft) |
Professional, intelligent | |
IVS (Perimeter Protection) | Tripwire; intrusion |
Crowd Distribution Map | Crowd map, global crowd density; crowd density in area; people counting in area; smart track for crowd density exception |
Vehicle Density | Parking upper limit; traffic congestion alarm |
Intelligent Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
Video | |
Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
Smart Codec | Smart H.264+ Smart H.265+ |
Video Frame Rate |
Panoramic network camera: Main stream: 8192 × 2700@1–25/30 fps, Sub stream 1: 2048 × 680@1–25/30 fps, Sub stream 2: 3840 × 1248@1–25/30 fps PTZ camera: Main stream: 2560 × 1440@1–25/30 fps, Sub stream 1: 704 × 480@1–25/30 fps, Sub stream 2: 1920 × 1080@–25/30 fps |
Stream Capability | 3 streams |
Resolution |
Panoramic network camera: Main stream: 8192 × 2700; 7680 × 2520; 5760 × 1896; 4096 × 1360, Sub stream 1: 2048 × 680; 1600 × 532; 1280 × 420, Sub stream 2: 3840 × 1248; 2560 × 840 PTZ camera: Main stream: 2560 × 1400; 2048 × 1536; 1920 × 1080; 1280 × 960; 1280 × 720, Sub stream 1: 704 × 576/704 × 480; 352 × 288/352 × 240, Sub stream 2: 1920 × 1080; 1280 × 960; 1280 × 720 |
Bit Rate Control |
CBR/VBR |
Video Bit Rate |
Panoramic network camera: H.264: 127 kbps– 65536 kbps, H.265: 50 kbps– 65536 kbps PTZ camera: H.264: 32 kbps– 17152 kbps, H.265: 12 kbps– 10240 kbp |
Day/Night | Auto (ICR)/Color/B/W |
BLC | Yes |
HLC | Yes |
Scene Self-adaptation (SSA) | Yes |
White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
Gain Control | Auto/Manual |
Noise Reduction | 3D NR |
Motion Detection | OFF/ON (4 areas, rectangular) |
Region of Interest (RoI) |
Panoramic network camera: Yes (4 areas) PTZ camera: Yes (4 areas) |
Electronic Image Stabilization (EIS) |
Panoramic network camera: Not support PTZ camera: Yes |
Smart Illumination |
Yes |
Defog |
Panoramic network camera: NA PTZ camera: Optical defog |
Flip |
Panoramic network camera: NA PTZ camera: 180° |
Privacy Masking |
Panoramic network camera: 4 areas PTZ camera: 24 areas |
Audio | |
Audio Compression | PCM;G.711A;G.711Mu;G.726;G.723 |
Alarm | |
Alarm Event | No SD card; SD card full; SD card error; SD card service life warning; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; intensity change; voltage detection; external alarm; safety exception; crowd congestion; vehicle congestion; parking upper limit |
Audio Sampling | 8 KHz; 16 KHz; 32 KHz; 48 KHz; 64 KHz |
Network | |
Network | RJ-45 (10/100/1000 Base-T) |
SDK and API | Yes |
Protocol | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP; |
Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
Interoperability | ONVIF® (Profile S/Profile G/Profile T); CGI; Milestone;Genetec |
User/Host | 20 (Total bandwidth: 1000 M) |
Storage | Micro SD card (support max. 256 G); FTP; SFTP; NFS; SMB |
Browser |
IE: IE9; IE10; IE11 Chrome: 42 and earlier Firefox: 52 and earlier |
Management Software | EVS; NVR5X-I; IVSS; DSS Pro; M70; Milestone; Genetec |
PTZ Dome | |
Pan Range | Pan: 0° to 360° endless, Tilt: –12° to 90°, auto flip 180 |
Manual Control Speed | Pan: 240°/s, Tilt: 100°/s |
Remote Lens Reset | Yes |
Remote PTZ Reset | Yes |
Preset | 300 |
Tour | 8 (up to 32 presets per tour) |
Pattern | 5 |
Scan | 5 |
Power-off Memory | Yes |
Idle Motion | Preset/Pattern/Tour/Scan |
Time Task | Yes |
Three-dimensional Positioning | Yes |
PTZ Limit | Yes |
Position Display | Yes |
Information Display | Yes |
Time Display | Yes |
Certifications | |
Certifications |
CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
Port | |
Audio Input | 2 channels (terminal) |
Audio Output | 2 channels (terminal) |
Alarm Input | 7 channels in: 5mA 3V–5V DC |
Alarm Output | 3 channels out?1,000mA 30V DC/500mA 50V AC |
Analog Output | 1 channel (CVBS outputs, NBC port) |
Optical Module Specification | SFP optical module, single mode, single fiber 20KmTX1310nm/RX-1550nm |
Optical Fiber | FC |
Optical Fiber Module Type | Gigabit SFP optical module, single mode, single fiber TX1550nm/RX-1310nm |
Power | |
Power Supply | 36V DC |
Operating Voltage | 36V DC (±50%) |
Power Consumption |
Basic power consumption: 33.7W (36V DC) Max. power consumption (Basic power consumption + WDR + intelligent functions enabled + IR on + PTZ operation): Panoramic network camera: 71.9W (36V DC); PTZ camera: 5.4W |
Enviromental | |
Operating Conditions | –40°C to +70°C (–40°F to +158°F)/Less than 95% RH |
Storage Temperature | –40°C to +70°C (–40°F to +158°F) |
Protection Grade | IP66; IK10 (optional) |
Structure | |
Casing | Metal+Plastic |

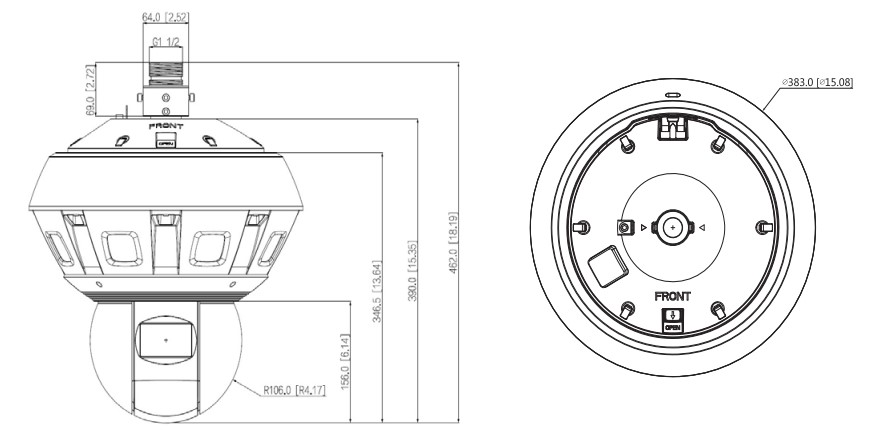

Dimensions | Φ383 mm × 389.8 mm(Φ15.1" × 15.3") |
Box Dimensions | 500 mm × 500 mm × 658 mm (19.7" × 19.7" × 25.9") (L × W × H) |
Net Weight | 14.7 kg (32.4 lb) |
Gross Weight | 19.8 kg (43.7 lb) |
Installation | Wall mount; ceiling mount; pole mount |
Power Adapter | Standard |
Lens | Standard |
Power Output | 12V DC power output, max. current 165mA |
Others | |
Position | GPS/BDS |
Calibration | Manual/Auto |
Ulteriori dettagli
![]() |
Onvif, lo standard in assoluto per le telecamere IP. Essere Onvif garantisce compatibilità con qualsiasi sistema di registrazione moderno. NON essere Onvif, significa avere una telecamera fine a se stessa che non potrà mai essere utilizzata insieme a sistemi di registrazione
Questa telecamera supporta lo standard ONVIF® |
![]() |
Questa telecamera presenta una risoluzione di 4 Megapixel! |
|
Sensore CMOS 1/1.8" con tecnologia STARLIGHT. Bassa luminosità, visione a colori anche in modalità notte Normalmente, entrando in modalità notte, la visione da colori diventa bianco/nero.
Con il SENSORE presente le riprese notturne saranno nitide e a colori |
![]() |
Tecnologia Multi-Lens! 1x PTZ:5.5-220mm Varifocale
|
|
Tecnologia Multi-Sensor! Questa telecamera è dotata di 6x Panoramica CMOS da 1/1.8" 4 Megapixel + 1x PTZ CMOS 1/1.8" 4 Megapixel |
|
Smart H.265+ Smart H.265+ è l'implementazione ottimizzata del codec H.265 che utilizza una strategia di codifica adattiva alla scena, GOP dinamico, ROI dinamico, struttura di riferimento multi-frame flessibile e riduzione del rumore intelligente utile per fornire video di alta qualità senza affaticare la rete. Smart H.265+ riduce di molto il bit rate e i requisiti di archiviazione rispetto alla compressione H.265 standard
|
![]() |
Iluminatore IR LED con portata fino a 400 Metri! Questa telecamera è provvista anche di tecnologia SMART IR. |
![]() |
Questa telecamera prevede funzioni di VIDEO ANALISI: - Attraversametno linea - Protezione Perimetro |
![]() |
Questa telecamera prevede funzioni intelligenti avanzate: - Crowd Map |
|
2 Ingressi + 2 Uscite Audio. |
![]() |
Questa telecamera presenta 7 ingressi + 3 uscite allarme |
![]() |
Questa telecamera è dotata di funzione ROI. Le immagini derivanti da telecamere IP sono “compresse”, di conseguenza la qualità viene impostata in fase di registrazione. Soprattutto su telecamere con una risoluzione molto alta, spesso è necessario ridurre la qualità in modo da garantirsi un’occupazione di banda ridotta e registrare un numero maggiore di giorni o di telecamere. Il ROI permette di definire delle zone dove impostare una qualità maggiore (ad esempio una porta, l’area dove solitamente passa la targa, un’uscita, etc.). In quell’area posso impostare una qualità più alta garantendomi così una maggior definizione dell’immagine. ![]() |
![]() |
Day/Night: permette di adattare la lente alla visione notte/giorno, e la relativa gestione automatica dell'Illuminatore IR, quando presente.![]() |
![]() |
L'IR CUT FILTER è un filtro meccanico che permette una corretta visualizzazione delle immagini nelle condizioni di visione diurna, filtrando le frequenze tipiche dell'infrarosso, migliorando così la qualità dell'immagine. In condizioni notturne il filtro viene rimosso in quanto è necessario catturare le frequenze tipiche dell'IR. |
![]() |
Automatic Gain Control, con possibilità di aggiustare autonomamente la sensibilità in particolari condizioni di utilizzo![]() |
![]() |
BLC (Back Light Compensation): è uno dei 3 passaggi possibili nella gestione delle immagini con contrasto, situazioni tipiche sono: entrate o uscite da parcheggi, targhe, luci particolari, ingressi con riprese dall'interno verso l'esterno, ecc. La compensazione della luce è una delle operazioni più complesse possibili, la funzione BLC permette un discreto adattamento a queste situazioni ![]() |
![]() |
3D-NR è la versione più evoluta della gestione del NOISE REDUCTION. Permette immagini ferme in presenza di poca luce ed in movimento. E' la soluzione attualmente più potente per ottenere il massimo dei risultati in presenza di poca luce. |
![]() |
Possibilità di inserire Micro SD fino a massimo 256Gb - non inclusa |
![]() |
IP66: garantisce l'impossibilità per la polvere di entrare nella telecamera e la protezione da getti d'acqua di qualsiasi tipo (es: pioggia)![]() |
![]() |
IK 10 è il massimo livello di protezione da danno diretto. Questo permette l'utilizzo della telecamera anche se sono presenti rischi di vandalismo
|
![]() |
Per il funzionamento della telecamera è necessario un alimentatore 12V DC (non incluso)![]() |
![]() |
Questo prodotto è coperto da Garanzia di 24 mesi. |
