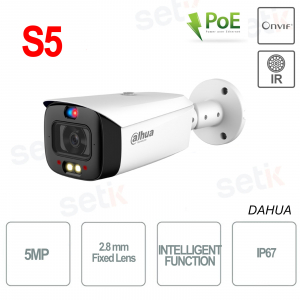

copy of Telecamera Bullet Versione S4 Wizsense Video Analisi IP da esterno Onvif PoE 5MP Starlight 2.8mm Dahua
IPC-HFW3549T1-AS-PV-S4 Dahua Wizsense Telecamera Bullet IP esterno Onvif PoE, 5 Megapixel 5MP, sensore CMOS 1/2.7" Starlight Full Color, Ottica fissa 2.8mm, compressione smart H.265+, 1x ingresso + 1x uscita audio, 1x ingresso + 1x uscita allarme, Day/Night, BLC, HLC, 3D NDR, WDR 120dB, Protezione perimetro, ROI, Slot MicroSD, Protezione IP67. Versione S4
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>
TELECAMERA BULLET IP ONVIF POE DA ESTERNO - 5 MEGAPIXEL CON INTELLIGENZA ARTIFICIALE LITE - AUDIO / ALLARME - VIDEO ANALISI - V4 DAHUA

Risoluzione 5Megapixel - Ottica fissa 2.8mm - CMOS 1/2.7" Starlight Full-Color - Compressione smart H.265+, 1x ingresso + 1x uscita audio, 1x ingresso + 1x uscita allarme, Day/Night, BLC, HLC, 3D NDR, WDR 120dB, Protezione perimetro, ROI, Slot MicroSD, Protezione IP67. Versione V4
TECNOLOGIA AI | INTELLIGENZA ARTIFICIALE: |
Dettagli prodotto

- Telecamera Bullet AI IP esterno PoE - Dahua
- Versione S4
- Risoluzione 5Megapixel 5MP
- Ottica fissa 2.8mm
- Sensore 1/2.7” con Tecnologia Starlight Full-Color
- Tecnologia Starlight Full Color: Visione notturna a colori
- Video compressione smart H.265+
- Triplo Stream
- WDR 120dB - Day/Night - 3DNR,AWB,AGC,BLC, ROI,
- Audio: 1 In - 1 Out
- Allarme: 1 in - 1 Out
- Intelligenza Artificiale: Protezione Perimetro, Intrusione
- Slot per memoria Micro SD (Fino a 256GB - non inclusa)
- Protezione IP67
- Materiale: Metallo + Plastica
- Alimentatore NON incluso
- Garanzia 24 mesi
Scheda tecnica
Model | IPC-HFW3549T1-AS-PV-S4 |
Camera | |
Image Sensor | 1/2.7” 5Megapixel progressive CMOS |
Effective Pixel | 2960 (H) × 1668 (V) |
ROM/RAM | 128 MB/512MB |
Scanning System | Progressive |
Electronic Shutter speed | Auto/Manual 1/3 s–1/100,000 s |
Min. Illumination |
0.003 lux@F1.0 (Color, 30 IRE) |
S/N Ratio |
>56 dB |
Illumination Distance |
Up to 30 m (98.43 ft) (IR) |
Illuminator On/Off Control | Auto/Manual |
Illuminator Number |
2 (IR LED) |
Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
Lens | |
Lens Type | Fixed-focal |
Mount Type | M12 |
Focal Length | 2.8 mm |
Field of View | H: 97°; V: 70°; D: 128° |
Iris Type | Fixed |
Close Focus Distance | 1.5 m (4.92 ft) |
Professional, Intelligent | |
IVS (Perimeter Protection) | Tripwire; intrusion (support the classification and accurate detection of vehicle and human) |
SMD 4.0 | Less false alarm, longer detection distance |
Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
Quick Pick | With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events |
AI SSA | Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions. |
Video | |
Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
Smart Codec | Smart H.265+; Smart H.264+ |
AI Codec | AI H.265; AI H.264 |
Video Frame Rate | Main stream: 2880 × 1620/2960 × 1668 @(1 fps–20 fps)/2688 × 1520 @(1 fps–30 fps) Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps) Third stream: 1920 × 1080@(1 fps–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity |
Stream Capability | 3 streams |
Resolution | 5M (2880 × 1620/2960 × 1668); 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296/2048 × 1536); 1080P (1920 × 1080); 1.3M (1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); VGA(640 × 480); CIF (352 × 288/352 × 240) |
Bit Rate Control | CBR/VBR |
Video Bit Rate |
H.264: 3 kbps–20480 kbps H.265: 3 kbps–20480 kbps |
Day/Night | Auto (ICR)/Color/B/W |
BLC | Yes |
HLC | Yes |
WDR | 120 dB |
Scene Self-Adaptation | Yes |
White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
Gain Control | Auto; manual |
Noise Reduction | 3D NR |
Motion Detection | OFF/ON (4 areas) |
Region of Interest(RoI) | Yes (4 areas) |
Smart IR | Yes |
Defog | Yes |
Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
Mirror | Yes |
Privacy Masking | 8 areas |
Audio | |
Built-in MIC | Yes, built-in dual Mic |
Built-in speaker | Yes, built-in speaker |
Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
Alarm | |
Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception |
Network | |
Ethernet | RJ-45 (10/100 Base-T) |
SDK and API | Yes |
Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
Cyber security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
Interoperability | ONVIF® (Profile S/Profile G/Profile T); CGI; P2P; Milestone |
User/Host | 20 (Total bandwidth: 72 M) |
Storage |
FTP; SFTP; Micro SD card (support max. 256 G); NAS |
Browser | IE: IE8/9/11 Chrome Firefox |
Management Software | Smart PSS; DSS; DMSS |
Smartphone | iOS; Android |
Certifications | |
Certifications |
CE-LVD: EN 62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14; |
Port | |
Audio Input | 1 channel (RCA port) |
Audio Output | 1 channel (RCA port) |
Alarm Input | 1 channel in: 5mA 3V–5 VDC |
Alarm Output | 1 channel out: 300mA 12 VDC |
Power | |
Power Supply | 12 VDC/PoE (802.3af) |
Power Consumption |
Basic: 2.4 W (12 VDC); 3.1 W (PoE) Max. (H.265+main stream/IR intensity+warm light on): 7.9 W (12 VDC); 9.7 W (PoE) |
Environment | |
Operating Conditions | –40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH |
Storage Conditions | –40 °C to +60 °C (–40 °F to +140 °F) |
Ingress Protection | IP67 |
Structure | |
Casing | Metal + plastic |
Dimensions | 288.4 mm × 94.4 mm × 84.7 mm |
Net Weight | 1.0 kg (2.20 lb) |
Gross Weight | 1.23 kg (2.71 lb) |
Ulteriori dettagli
![]() |
Onvif: Tutte Onvif, lo standard in assoluto per le telecamere IP, essere Onvif garantisce compatibilità con qualsiasi sistema di registrazione moderno. NON essere Onvif, significa avere una telecamera fine a se stessa che non potrà mai essere utilizzata insieme a sistemi di registrazione
Questa telecamera è compatibile ONVIF® |
![]() |
PoE (Power Over Ethernet): Il Vantaggio di una telecamera PoE è evidente, permette di essere alimentata con lo stesso cavo con la quale si comunica senza portare ulteriori cavi d'alimentazione e senza dover installare un sistema di alimentazione separato, una telecamera PoE garantisce tensioni costanti ed installazione semplice |
|
AI Intelligenza artificiale: Questa telecamera presenta Intelligenza Artificiale a bordo - Protezione perimetro: Intrusione, Attraversamento linea (classificazione persone&veicoli) - Motion Detection - Audio Detection |
|
Smart H.265+ Smart H.265+ è l'implementazione ottimizzata del codec H.265 che utilizza una strategia di codifica adattiva alla scena, GOP dinamico, ROI dinamico, struttura di riferimento multi-frame flessibile e riduzione del rumore intelligente utile per fornire video di alta qualità senza affaticare la rete. Smart H.265+ riduce di molto il bit rate e i requisiti di archiviazione rispetto alla compressione H.265 standard
|
![]() |
Risoluzione: Questa telecamera presenta una risoluzione di 5Megapixel |
![]() |
Ottica: Questa telecamera presenta ottica fissa 2.8mm |
|
Starlight Full Color: Sensore CMOS 1/2.7" con Tecnologia Full-Color Starlight!
FULL-COLOR STARLIGHT: La telecamera monta un obiettivo F1.0 da 1/2.7" ad ampia apertura e ad alte prestazioni. Con una maggiore quantità di luce assorbita e un algoritmo avanzato per il processo dell'immagine, la telecamera presenta un impressionante prestazione in presenza di poca luce con un eccezionale bilanciamento tra riduzione del rumore e sfocatura dell'oggetto in movimento. |
![]() |
Stream: |
![]() |
BLC (Back Light Compensation): |
![]() |
WDR (Wide Dynamic Range): WDR (Wide Dynamic Range): E' la soluzione professionale nei casi in cui si deve operare in condizioni di alto contrasto luce/ombra. Fondamentale in caso di riprese dall'interno verso l'esterno, targhe, punti in ombra o tutte le situazioni dove non è presente omogeneità di luce. |
![]() |
Audio: Questa telecamera presenta: 1 Ingresso e 1 Uscita Audio |
![]() |
Allarme: Questa Telecamera Presenta: 1 Ingresso e 1 Uscita Allarme |
![]() |
Day/Night: Day/Night: permette di adattare la lente alla visione notte/giorno, e la relativa gestione automatica dell'Illuminatore IR, quando presente. |
![]() |
ROI: Questa telecamera è dotata di funzione ROI. |
![]() |
Livello di protezione IP67 ( Polveri / Immersioni ) |
![]() |
Possibilità di inserire Micro SD fino a massimo 256Gb - non inclusa |
![]() |
Alimentatore NON incluso![]() |
![]() |
Questo prodotto è coperto da Garanzia di 24 mesi. |
