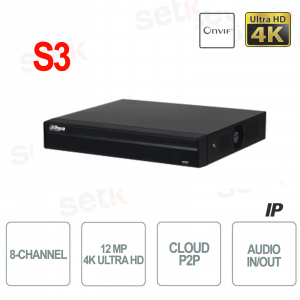

Videoregistratore NVR IP per la sorveglianza. 8 Canali fino a 8Megapixel 4K ULTRA-HD in preview e playback, Max 80Mbps banda , Video Compressione H.265+ / H.264, 1 HDMI (4K) , 1 VGA, Max 1HDD SATA 3.5", 2 Porte USB, Audio, 1 porta RJ-45 10/100Mbps. Compatibile ONVIF, supporto Video Analisi. Serie Lite. NVR4108HS-4KS2/L ~ NVR4108HS-4KS2-L
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>
NVR IP 8 CANALI 4K ULTRA-HD FINO A 8 MEGAPIXEL - H.265 - VIDEO ANALISI AUDIO - SERIE LITE DAHUA

8 Canali 4K ULTRA-HD fino a 8Megapixel - Max 80Mbps bandalarga - H.265+ / H.264
Compatibile ONVIF® - Video Analisi supportata - Audio
Supporta 1HDD SATA 3,5" (non incluso) - Garanzia 24 mesi
TECNOLOGIA 4K - ULTRA HD - COSA SIGNIFICA? | |
---|---|
|
Dettagli prodotto

|
Questo NVR supporta la videocompressione in H.264 e anche nel nuovo standard H.265 Ottimizzato per Mobile |
![]() |
Nuova Tecnologia ULTRA HD 4K! Risoluzione ancora più superiore rispetto al FULL-HD! Maggior dettaglio disponibile, maggior senso di profondità e realismo. |
![]() |
8 Canali fino a 4K ULTRA-HD 8 Megapixel in preview e playback! Risoluzione di registrazione: 8MP/5MP/4MP/3MP/1080P/720P/D1/CIF Max 80Mbps di bandalarga in entrata |
![]() |
Supporta telecamere IP ONVIF® Versione 2.4 |
![]() |
Supporta telecamere IP: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, and more (il funzionamento con i modelli qui proposti è da verificare di caso in caso) |
![]() |
Questo videoregistratore supporta alcune funzioni della Video Analisi: ![]() |
![]() |
Funzione Cloud con Easy4IP |
![]() |
Questo NVR supporta telecamere con a bordo IVS (Funzioni di Video Analisi)
|
![]() |
Monitoraggio multiplo di rete: Web viewer, CMS(DSS/PSS) & DMSS(miglior software TVCC per Mobile) |
![]() |
Compatibile con tutti i dispositivi Mobile: Android, Iphone,![]() |
![]() |
Equipaggiato di: 1 SATA III Port, fino a 8 TB di capacità. (Hard disk non incluso) ATTENZIONE: sui sistemi NVR usate dischi specifici audio/video. Per avere maggiori informazioni, leggete il nostro articolo dedicato. |
![]() |
Funzione Motion. La registrazione parte nel momento in cui la telecamera rileva movimento. |
![]() |
1x RJ-45 (10/100Mbps) |
![]() |
Questo NVR presenta 2x Porte USB |
![]() ![]() |
Risoluzione fino a 4K tramite Porta HDMI!
Nuova Tecnologia ULTRA HD 4K! |
![]() |
Questo NVR Presenta 1x porta vga |
![]() |
Questo DVR presenta 1 ingresso e 1 uscita audio |
![]() |
Dynamic DNS: permette di raggiugere l'NVR anche in caso di IP Dinamico |
![]() |
Questo NVR dispone di invio email.
Inoltre registra e invia snapshot su Cloud Storage esterno (Dropbox, Skydrive) |
![]() |
Questo prodotto è coperto da Garanzia di 24 mesi. |
Scheda tecnica
Model: DVR | NVR4108HS-4KS2/L |
SYSTEM | |
Main Processor | Industrial-grade embedded processor |
Operating System | Embedded Linux |
Operation Interface | Web/operating in local GUI |
Video | |
Access Channel | 8 channels |
Network Bandwidth | 80 Mbps for access, 80 Mbps for storage and 60 Mbps for forwarding |
Resolution | 8MP/5MP/4MP/3MP/1080P/720P/D1/CIF |
Decoding Capability | 8–ch@1080P(30FPS) |
Video Output | 1 VGA/1 HDMI simultaneous video output, maximum resolution 4K |
Multi-screen Display | 1/4/8/9 |
Third Party Camera Access | ONVIF®, RTSP |
Compression | |
Video | Smart H.265+/H.265/Smart H.264+/H.264 |
Audio |
G.711A/G.711U/PCM/G726 |
Network | |
Network Protocol | HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, NTP, DHCP, DNS, P2P |
Mobile Phone Access | iDMSS (iOS)/gDMSS (Android) |
Access Standard | ONVIF® (profile S), CGI, SDK |
Browser | Chrome, IE9 or above, Firefox |
Record Playback | |
Multi-channel Playback | Up to 8 channels playback |
Record Mode | Priority of record mode: Manual recording > alarm recording > motion detection recording > timed recording |
Storage | Local HDD |
Backup | USB device |
Playback Function | 1. Play, pause, stop, fast forward, fast backward, rewind, play by frame 2. Full screen, backup (cut/file), partially enlarge, audio on/off |
ALARM | |
General Alarm | Motion detection, privacy masking, video loss, IPC alarm |
Anomaly Alarm | Front-end device going offline, storage error, full storage, IP conflict, MAC conflict, login lock, network security anomaly |
Alarm Linkage | Video recording, snapshot, log, preset point, tour |
EXTERNAL PORT | |
HDD | 1 SATA port, up to 8 TB for a single HDD. The maximum HDD capacity varies with environment temperature. |
USB | 1 front USB 2.0 port, 1 rear USB 2.0 port |
HDMI | 1 |
VGA | 1 |
RCA Input | 1 |
RCA Output | 1 |
Network | 1 RJ–45 port (10/100 Mbps) |
GENERAL PARAMETER | |
Power Supply | DC12V, 2A |
Power Consumption | Total output of NVR is ≤ 10W (without HDD) |
Net Weight | 0.81kg (1.79 lb) (without HDD) |
Gross weight | 1.41kg (3.11 lb) (without HDD) |
Dimensions | 260mm × 225mm × 47.6mm (W × L × H) 10.24 inch × 8.86 inch × 1.87 inch (W × L × H) |
Packaging Dimensions | 89mm × 333mm × 315mm (W × L × H) 3.50 inch × 13.11 inch × 12.40 inch (W × L × H) |
Operating Temperature | -10°C to +55°C (+14°F to +131°F) |
Storage Temperature | 0°C to +40°C (+32°F to +104°F) |
Operating Humidity | 10%–90% |
Storage Humidity | 30%–85% |
Operating Altitude | 3000 m (9843 ft) |
Installation | Desktop mounting |
Certification | CE/FCC/UL |
