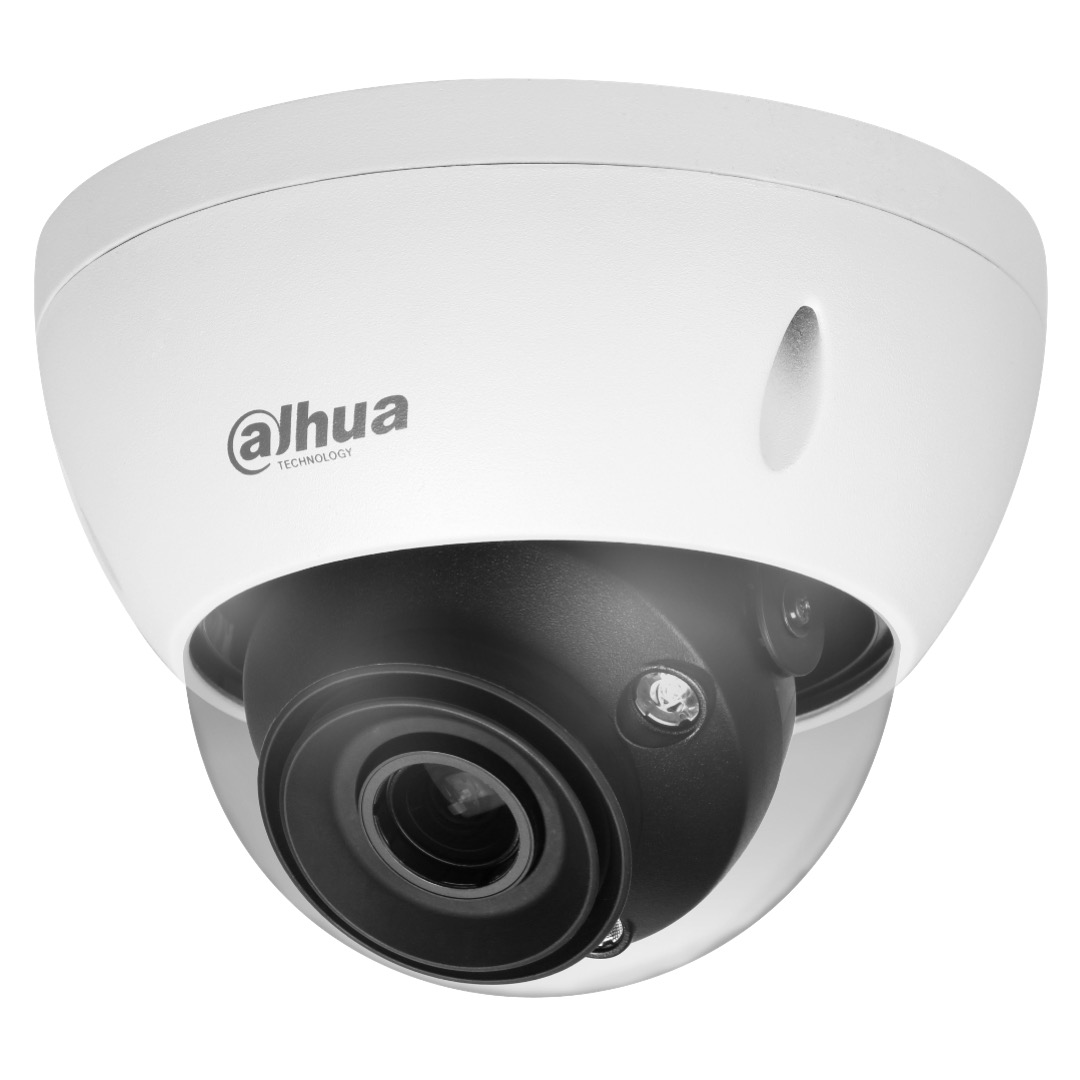

Telecamera 4MP - Ottica 2.7-13.5mm - Uscita HDMI - Intelligenza artificiale - Per esterno antivandalica

Camera

Image Sensor

1/2.9" CMOS

Max. Resolution

2688 (H) × 1520 (V)

ROM

256 MB

RAM

1 GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.002 lux@F1.6 (Color, 30 IRE)

0.0002 lux@F1.6 (B/W, 30 IRE)

0 lux (Illuminator on)

S/N Ratio

?56 dB

Illumination Distance

Up to 40 m (131.23 ft) (IR)

Illuminator On/Off Control

Auto;Manual;Zoomprio

Illuminator Number

3 (IR LED)

Angle Adjustment

Pan: 0°–355°;

Tilt: 0°–65°;

Rotation: 0°–355°

Lens

Lens Type

Motorized vari-focal

Lens Mount

φ14

Focal Length

2.7 mm-13.5mm

Max. Aperture

F1.6

Field of View

H: 104°–29°; V: 54°–16°; D: 125°–34°

Iris Control

Auto

Close Focus Distance

0.1 m (0.33 ft)

Intelligence

IVS (Perimeter Protection)

Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection

Smart Object Detection

Smart abandoned object; smart missing object

SMD

SMD 3.0

AcuPick

Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.

Face Detection

Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face snapshot enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.

People Counting

Tripwire people counting and people counting in area; generating and exporting report (day/week/month/year); 4 rules can be set for tripwire, people counting in area and queue management.

Heat Map

Yes

Video Metadata

Motor vehicle, non-motor vehicle, face, and human body detection; snapshot; snapshot optimization; optimal face snapshot upload. Extraction of motor vehicle and non-motor vehicle attributes: extracts 6 attributes for motor vehicle and 6 attributes for non-motor vehicle Extraction of face and human body attributes: extracts 6 attributes for face and 8 attributes for human body.

Video

Video Compression

H.265?H.264?H.264H?H.264B?MJPEG (Only supported by sub stream)

Smart Codec

Smart H.265+; Smart H.264+

AI Coding

AI H.265; AI H.264

Video Frame Rate

Main stream: 2688 × 1520@(1–25/30 fps)

sub stream: 704 × 576@(1-25 fps)/704 × 480@(1-30 fps)

third stream: 1920 × 1080@(1–25/30 fps)

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

3 streams

Resolution

4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

VBR;CBR

Video Bit Rate

H.264: 3 kbps–16384 kbps;

H.265: 3 kbps–16384 kbps

HDMI Output

2560 × 1440@25/30 fps; 1920 × 1080@25/30/50/60 fps; 1280 × 720@25/30/50/60 fps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

Scene Self-adaptation (SSA)

Yes

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Image Stabilization

Electronic Image Stabilization (EIS)

Smart Illumination

Yes

Defog

Yes

Image Rotation

Yes

Mirror

Yes

Privacy Masking

4 areas

LDC

Yes

Audio

Built-in MIC

Yes, built-in Mic

Audio Compression

PCM; G.711a; G.711Mu; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception; defocus detection

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P

Interoperability

ONVIF (Profile S & Profile G & Profile T); CGI

User/Host

20 (Total bandwidth: 80 M)

Storage

FTP; SFTP; Micro SD card (support max. 512 GB); NAS

Browser

IE: IE 11 and later;

Chrome: Chrome 45 and later;

Firefox: Firefox 46 and later;

Safari: Safari 12 and later

Management Software

SmartPSS Lite; DSS; DMSS

Mobile Client

iOS;Android

Cyber Security

Video encryption;Firmware encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade

Certification

Certifications

CE-LVD: EN62368-1;

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Port

HDMI

HDMI 1.4a, type A, female plug

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

2 channels in: wet contact, 5 mA 3–5 VDC

Alarm Output

1 channel out: wet contact, 300 mA 12 VDC

Power

Power Supply

12 VDC; PoE (802.3af); ePoE

Dual Power Backup

When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.

Power Consumption

Basic: 3.6 W (12 VDC), 4.7 W (PoE);

Max.: 8.3 W (12 VDC), 8.8 W (PoE) (H.265+ WDR+ Intelligence on+IR on)

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

≤95% (RH), non-condensing

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

≤95% (RH), non-condensing

Protection

IP67; IK10

Structure

Casing Material

Metal

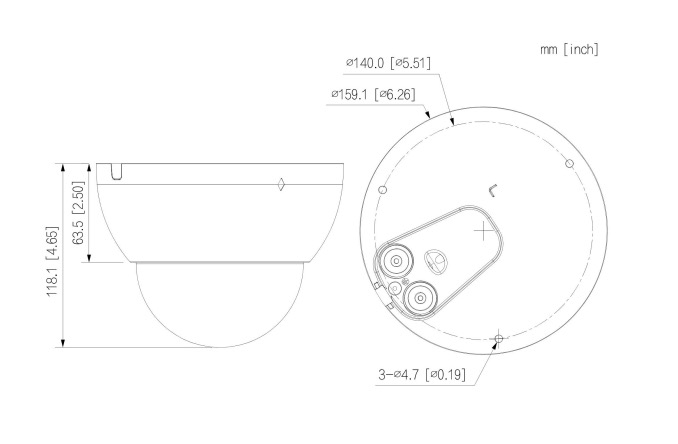

Product Dimensions

Φ159.1 mm × 118.1 mm (6.26" × Φ4.65")

Net Weight

0.92 kg (2.03 lb)

Gross Weight

1.22 kg (2.69 lb)
