-35%

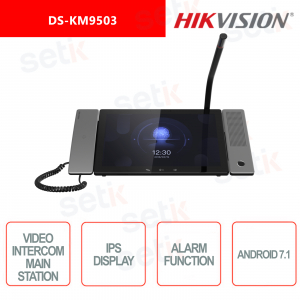

Hikvision - Video Intercom Android 7.1 Monitor LCD 10.1 pollici DS-KM9503. Connessione fino a 126 network camera, SIP, display orientabile, PoE, Risoluzione video 2MP, speaker, microfono incorporato, soppressione rumore e cancellazione eco, allarme, interfaccia netwirk, TF card, H.264.
SCEGLI PROFESSIONISTA
https://www.setik.biz/it/videocitofonia-ip/7790-hikvision-ds-km9503-hikvision-video-intercom-android-71-monitor-ips-101-pollici-sip-poe.html
1.554,28 €
2.391,20 € -35%
tasse incluse
Descrizione Dettagli Prodotto Scheda tecnica Ulteriori Dettagli Download
DS-KM9503 | VIDEO INTERCOM CON MONITOR IPS - RISOLUZIONE VIDEO 2MP - SIP - POE - HIKVISION
Hikvision - Video Intercom Android Monitor LCD 10.1 pollici DS-KM9503.
Connessione fino a 126 network camera, SIP, display orientabile, PoE
Risoluzione video 2MP, speaker, microfono, soppressione rumore e cancellazione eco, allarme, interfaccia netwirk, TF card, H.264.
Scheda tecnica
| DS-KM9503 | |
| System parameters | |
| Operetang system | Android 7.1 |
| ROM | 8GB |
| RAM | 2GB |
| CPU | Embedded processor |
| Display parameters | |
| Screen size | 10.1-inch |
| Operation method | Capacitive touch screen |
| Type | IPS |
| Resolution | 1280x800 |
| Video parameters | |
| Resolution | 2MP |
| FOV | Horizontal: 64.1°, Vertical: 48.1°, Diagonal: 80.2° |
| WDR | / |
| Supplement light |
/ |
| V ideo compression standard | H.264 |
| Audio parameters | |
| Audio compression standard | G.711U?G.711A |
| Audio input | Built-in omnidirectional microphone, external speaker, external goose neck microphone, external earphone (3.5 mm) |
| Audio output | Built-in loudspeaker, external speaker, external voice box or earphone (3.5 mm) |
| Audio compression bitrate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable via software |
| Capacity | |
| Notice capacity | 128 |
| Linked doorphone capacity | 10000 |
| Network parameters | |
| Communication protocol | TCP/IP, SIP, RTSP |
| Wired network | 2 10/100/1000 M self-adaptive Ethernet |
| Wi-Fi standard | / |
| 3G/4G standard | / |
| Z igbee | / |
| Device interfaces | |
| Alarm input | 2 |
| Network interface | 2 |
| TAMPER | 0 |
| RS-485 | 1 |
| USB | 3 |
| TF card | Max to 128 G |
| Lock control | 2 Relay output |
| General | |
| Button | 3 touch buttons |
| Installation | Table mounting & wall mounting |
| Indicator | 3 |
| Weight | Without package: 1.285 kg With package: 2.305 kg |
| Protective level | / |
| Working humidity | 10% to 90% |
| Language | English, French, Portuguese (Europe), Spanish (Europe), Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Lithuanian, Estonian, Latvian, Norwegian, Greek, Danish |
| Dimensions | 292 mm×166 mm×31 mm (11.5" × 6.5" × 1.2") |
| Battery | / |
| Power supply | Standard PoE (LAN1) 12 VDC |
| Application environment | Indoor |
| Power consumption Dimension |
≤ 12 W |
Ulteriori dettagli
Download
Scaricate il Depliant Inglese
Tutti i nostri prodotti sono conformi alla normativa CE vigente (leggi qui). Per richiedere la copia del certificato
compila questo modulo
