Kit videocitofonico IP Hikvision DS-KIS604-S/Bi-family composto da:
N.1 Postazione esterna DS-KV8213-WME1 Telecamera HD da 2 MP, Visione Notturna, Soppressione del Rumore e Cancellazione dell'Eco ,Controllo Accessi, Connettività PoE e Wi-Fi, IP 65 IK03
N.2 Postazione interna DS-KH6320-WTE1 WiFi Wireless PoE Monitor Intercom Display LCD 7 Pollici Touch Screen, slot per MicroSD, sblocco remoto via client software o mobile client, microfono omnidirezionale e Speaker integrati, cattura screenshot e archiviazione messaggi su tf card, 8 Ingressi + 2 Uscita Allarme, 1 RS485, Alimentazione DC 12V, PoE (802.3af).
N.1 Switch di rete DS-3E0106HP-E Poe 4 Porte
SCEGLI PROFESSIONISTA
980,94 €
1.509,14 € -35%

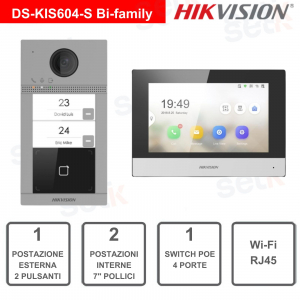

DS-KIS604-S/Bi-family |KIT VIDEOCITOFONICO IP- BIFAMILIARE 2 MP
Kit videocitofonico IP Hikvision DS-KIS604-S/Bi-family composto da:
N.1 Postazione esterna DS-KV8213-WME1 Telecamera HD da 2 MP, Visione Notturna, Soppressione del Rumore e Cancellazione dell'Eco ,Controllo Accessi, Connettività PoE e Wi-Fi, IP 65 IK03. Compressione H.264 campo visivo orizzontale di 129° e verticale di 75°, True WDR. Configurazione tramite app. Materiale: Alluminio
N.2 Postazione interna DS-KH6320-WTE1 WiFi Wireless PoE Monitor Intercom Display LCD 7 Pollici Touch Screen, 1024x 600 slot per MicroSD sblocco remoto via client software o mobile client, microfono omnidirezionale e Speaker integrati, cattura screenshot e archiviazione messaggi fino a 200 su tf card, 8 Ingressi + 2 Uscita Allarme, 1 RS485, Alimentazione DC 12V, PoE (802.3af).
N.1 Switch di rete DS-3E0106HP-E Poe 4 Porte
|
KIT VIDEOCITOFONICO BIFAMILIARE COMPOSTO DA:
|
|
N.1 POSTAZIONE ESTERNA CON DUE PULSANTI: DS-KV8213-WME1
|
|
N.2 POSTAZIONE INTERNA CON TOUCH SCREEN 7"POLLICI DS-KH6320-WTE1
|
|
N.1 SWITCH DI RETE 4 PORTE POE DS-3E0106HP-E
|
Scheda tecnica
Indoor Station
- Operation system: Linux
- ROM: 32 MB
- RAM: 128 MB
- Processor: Embedded high performance processor
Display parameters
- Screen size: 7-inch
- Operation method: Capacitive touch screen
- Type: Colorful TFT
- Resolution: 1024 × 600
Video parameters
- Lens: /
- Resolution: /
- FOV: /
- Wide dynamic range (WDR): /
- Video compression standard: /
- Focal length: /
Audio parameters
- Audio input: 1 built-in omnidirectional microphone
- Audio compression standard: G.711U/G.711A
- Audio output: 1 built-in loudspeaker
- Audio compression bitrate: 64 Kbps
- Audio quality: Noise suppression and echo cancellation
- Volume adjustment: Adjustable
Capacity
- Message capacity:
- TF card inserted: 200 captured pictures, 200 alarm records
- Without TF card: 2 MB RAM for picture storage; The storage number is decided by the picture size, 200 alarm records
- Notice capacity: 200
- Linked indoor extensions capacity: 16
- Linked doorphone capacity: 17
- Linked network camera capacity: 16
Network parameters
- Network protocol: TCP/IP, SIP, RTSP
- Wi-Fi: 2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
- Bluetooth: /
- 3G/4G: /
- Zigbee: /
Device interfaces
- Alarm input: 8
- Network interface: 1 RJ-45 10/100 Mbps self-adaptive
- TAMPER: /
- RS-485: 1 RS-485 (Half duplex)
- USB: /
- TF card: Support TF card, up to 128 G
- Alarm output: 2
- Lock control: 2 relays, Max. 30 VDC 0.3 A
General
- Button: /
- Installation: Surface mounting
- Indicator: /
- Weight:
- Net weight: 355 g (0.8 lb)
- Gross weight: 683 g (1.5 lb)
- Protective level: /
- Working temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working humidity: 10% to 90% (no-condensing)
- Dimension (W × H × D): 200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")
- Battery: /
- Application environment: Indoor
- Power consumption: ≤ 5 W
- Language:
- English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese (Brazil), Spanish, Hebrew, Romanian, Turkish, Estonian, Danish, Swedish, Norwegian, Finnish, Vietnamese, Croatian, Slovenian, Serbian, Arabic, Portuguese (Portugal), Lithuanian, Uzbek, Kazakh, Mongolian, Ukrainian
Outdoor Station
System Parameters
- Operation System: Embedded Linux operation system
- Operation Method: Two-button
- Flash: 32 M
- RAM: 256 M
Video Parameters
- Camera: 2MP HD camera
- Night Vision: Low illumination IR supplement mode: 3 m
- BLC: Support
- DNR: Support
- WDR: True WDR
- Field of View: Horizontal: 129°, Vertical: 75°
- Video Compression Standard: H.264
- Stream:
- Main stream: 1080p@30fps, 720p@25fps
- Sub stream: D1@25fps
- Resolution:
- Main stream: 1920 × 1080p, 720p
- Sub stream: 704 × 576
- Motion Detection: Support
- Anti-flicker Frequency: 50 Hz, 60 Hz
Audio Parameters
- Audio Intercom: Two-way audio communication
- Audio Input: Built-in omnidirectional microphone
- Audio Output: Built-in loudspeaker
- Audio Compression Standard: G.711 U
- Audio Compression Rate: 64 Kbps
- Audio Quality: Noise suppression and echo cancellation
Network Parameters
- Wired Network: 10/100 Mbps Ethernet
- Network Protocol: TCP/IP, RSTP
Access Control Parameters
- Reading Frequency: 13.56 MHz
- Card Type: Mifare card
Interfaces
- RS-485: 1
- Wi-Fi: 2.4G Wi-Fi
- Debugging Port: 1
- TF Card: 0
- Door Contact Input: 2
- Exit Button Input: 2
- Grounding: 1
- Physical Button: 2
- Tamper Switch: 1
- Door Control: 2, breakdown voltage: 36 V
Performances
- Card Capacity: Max. 10000
- User Capacity: Max. 2000
- Linked Indoor Station: 2
- Linked Sub Door Station: Max. 16
- Linked Doorphone: Max. 8
- Protocol: ISAPI, RTSP, STMP, SNMP
Unlock Door
- Unlock Methods:
- Presenting cards
- Via Client Software
- Via App
- Via indoor station
General
- Protection Level: IP65, IK08
- Indicator: 3
- Power Supply: IEEE802.3af, standard PoE, 12 VDC
- Power Consumption: ? 10 W
- Working Temperature: -40° C to 53° C (-40° F to 127.4° F)
- Working Humidity: 10% to 95%
- Installation: Surface mounting/ Flush mounting
- Dimension: 174 mm × 91 mm × 29 mm
