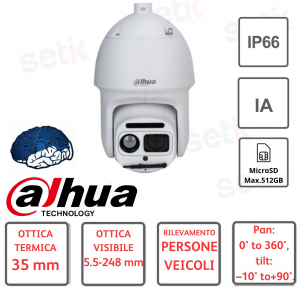

TELECAMERA SPEED DOME-DOPPIA OTTICA-TERMICA 35MM-VISIBILE 5.5-248m

Thermal

Detector Type

Vanadium oxide uncooled focal plane detector

Effective Pixels

400 (H) × 300 (V)

Pixel Pitch

17 μm

Spectral Range

8 μm–14 μm

Sensitivity (NETD)

<35 mK (@f/1.0)

Focal Length

25 mm; 35 mm; 50mm

Field of View

25 mm: H: 15.5°; V: 11.6°

35 mm: H: 11.1°; V: 8.3°

50 mm:H: 7.8°; V: 5.8°

Thermal Focus Control

Fixed-focal

Close Focus Distance

25 mm: 1 m (3.28 ft)

35 mm: 1 m (3.28 ft)

50 mm: 1 m (3.28 ft)

Detection Distance?

25 mm: Vehicle: 2,262 m (7,422.71 ft);

Human: 735 m (2,411.42 ft)

35 mm: Vehicle: 3,167 m (10,391.80 ft);

Human: 1,029 m (3,375.98 ft)

50 mm: Vehicle: 4,525 m (14,845.43 ft);

Human: 1,471 m (4,826.12 ft)

Recognition Distance?

25 mm: Vehicle: 555 m (1,820.67 ft);

Human: 189 m (620.08 ft)

35 mm: Vehicle: 777 m (2,548.93 ft);

Human: 265 m (869.42 ft)

50 mm: Vehicle: 1,110 m (3,641.33 ft);

Human: 378 m (1,240.16 ft)

Identification Distance?

25 mm: Vehicle: 280 m (919.00 ft);

Human: 95 m (311.68 ft)

35 mm: Vehicle: 392 m (1,286.60 ft);

Human: 132 m (433.07 ft)

50 mm: Vehicle: 560 m (1,838.01 ft);

Human: 189 m (620.08 ft)

Note:

?Detection Distance: Detects objects, but cannot recognize their characteristics

(objects must cover more than 3.6 pixels of the image).

?Recognition Distance: Classifies objects into general categories, such as human,

vehicle (the object must cover more than 14 pixels of the image).

?Identification Distance: Classifies objects into specific categories based on their

characteristics, such as engineering truck, car (the object must cover more than 28

pixels of the image).

Digital Detail Enhancement (DDE)

Yes

Digital Zoom

19 levels

Thermal AGC

Auto/Manual

Thermal Noise Reduction

2D NR/3D NR

Image Flip

180°; Mirror

Color Palettes

18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter)

Visible

Image Sensor

1/1.8" CMOS

Max. Resolution

2688 (H) × 1520 (V)

Pixel

4 MP

Horizontal Definition

≥1200 TVL

Min. Illumination

Color: 0.001 lux@F1.4

Black & white: 0.0001 lux@F1.4

0 lux (IR on)

Visible AGC

Auto/Manual

Visible Noise Reduction

2D NR/3D NR

S/N Ratio

≥55 dB

White Balance

Auto; manual; indoor; outdoor; tracking; sodium lamp; street lamp; natural

Defog

Electronic defog

Visible Image Stabilization

Electronic Image Stabilization

Electronic Shutter Speed

1 s–1/30,000 s (auto/manual)

BLC

Yes

WDR

Yes

HLC

Yes

Digital Zoom

Yes

Day/Night

Auto (ICR); Color; B/W

Iris Control

Auto

Image Flip

Yes

Exposure Compensation

Yes

Visible Focus Control

Auto/semi-auto/manual

Focal Length

5.5 mm–248 mm

Zoom Speed

<7 s

Field of View

H: 62.32°–1.71°

V: 36.55°–1.0°

Close Focus Distance

0.5 m–2 m (1.64 ft–6.56 ft)

Optical Zoom

45×

Aperture

F1.4–F4.5

Illuminator On/Off Control

Auto/Manual

Illumination Distance

150 m (492.13 ft)

Audio and Video

Video Compression

H.265; H.264; H.264H

Resolution

Thermal:

Main stream: 1280 × 1024; 1280 × 960 ; 720p (1280 × 720); 400

× 300; 1280 × 960 (default)

Sub stream: 640 × 512; 640 × 480; 400 × 300; 400 × 300 (default)

Visible:

Main stream: 4 MP (2688 × 1520); 4 MP (2560 × 1440); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576); 1080p (default)

Sub stream: D1 (704 × 576); CIF (352 × 288); D1 (704 × 576)

(default)

Video Frame Rate

Thermal:

50 Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by

default; (sub stream) 1 fps–25 fps adjustable, 15 fps by

default

60 Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by

default; (sub stream) 1 fps–30 fps adjustable, 15 fps

by default

Visible:

50 Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by

default; (sub stream) 1 fps–25 fps adjustable, 15 fps by

default

60 Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by

default; (sub stream) 1 fps–30 fps adjustable, 15 fps

by default

Audio Compression

G.711a; G.711mu; AAC

Image Encoding Format

JPEG

PTZ

Pan/Tilt Range

Pan: 0° to +360°

Tilt: –27° to +90°

Manual Control Speed

Pan: 0.1°/s to 200°/s

Tilt: 0.1°/s to 120°/s

Preset Speed

Pan: 0.1°/s to 240°/s

Tilt: 0.1°/s to 200°/s

Preset

300

Tour

8 (up to 32 presets per tour)

Pattern

5

Scan

5

Power-off Memory

Yes

Privacy Masking

4 by default

Idle Motion

Preset; Pattern; Tour; Scan; Horizontal Rotation

Timing Task

Preset; Pattern; Tour; Scan; Horizontal Rotation

Position Display

On/Off

Wiper

Auto rain-sensing. Supports setting wiper running times, frequency, and period.

3D Positioning

Yes

Function

Two-way Audio

Yes

Network Protocol

HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP

Region of Interest (RoI)

Yes (customizable)

Storage

Micro SD card

Micro SD Card (Max.)

512 GB

Interoperability

ONVIF; CGI; Dahua SDK

Browser

IE: IE8 and later
Chrome: 42 and earlier
Firefox: 42 and earlier

User/Host

Up to 20 (total bandwidth: 64 MB)

Security

Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access

User Management

Up to 20 users; supports multi-level user permissions (2 levels): management group and user group

Malfunction Detection

Network disconnection detection; IP conflict detection; memory card state detection; memory space detection

PIP

Yes

Intelligence

Heat Detection

Yes

Cold/Hot Spot Trace

Yes

IVS (Perimeter Protection)

Yes. Supports tripwire and intrusion.

Target Distinction

Human/Vehicle Classification

Target Tracking

Yes

Target Filtering

Yes

Smoking Detection

Yes

Call Detection

Yes

Smoke Detection

Yes

Boat Detection

Yes

Engineering Truck Detection

Yes

Panoramic PTZ

Yes

Port

Analog Output

1 × CVBS output; BNC port

Network Port

1 × RJ-45 (10/100 Base-T)

Alarm Input

7

Alarm Output

2

Audio Input

1

Audio Output

1

RS-485

1

Power

Power Supply

36 VDC ± 25%, Hi-PoE

Power Consumption

Basic: 30 W

Max: 50 W (illuminator)

Environment

Operating Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Operating Humidity

≤95%

Storage Temperature

–50 °C to +80 °C (–58 °F to +176 °F)

Physical Characteristics

Protection

IP66

Reliability

Surge protection: 6 kV
Air discharge: 15 kV
Contact discharge: 8 kV

Structure

Product Dimensions

300 mm × 300 mm × 500 mm (11.81" × 11.81" × 19.69") (L × W × H)

Packaging Dimensions

435 mm × 435 mm × 666 mm (17.13" × 17.13" × 26.22") (L × W × H)

Net Weight

≤13 kg (28.66 lb)

Gross Weight

≤16 kg (35.27 lb)

Heat Detection Distance

Focal Length

Max. Distance

25 mm

1,548 m (5,078.74 ft)

35 mm

2,167 m (7,109.58 ft)

50 mm

3,096 m (10,127.48 ft)

Note:

The table displays the measured distances obtained from using the target size 2 m × 2 m for testing in an environment where the temperature is 23 °C and the relative humidity is below 60%.

The table is for reference only. The distances within it are subject to actual conditions including atmospheric conditions, target size, the installation site, and more.

Perimeter Protection Distance

Focal Length

Distance (Human)

Distance (Vehicle)

25 mm

175 m (574.15 ft)

525 m (1,722.44 ft)

35 mm

245 m (803.81 ft)

735 m (2,411.42 ft)

50 mm

350 m (1,148.29 ft)

1,050 m (3,444.88 ft)

Note:

The table displays the measured distances obtained from using the target sizes

1.8 m × 0.5 m (human) and 1.4 m × 4 m (vehicle) for testing in an environment where the temperature is 23 °C and the relative humidity is below 60%.

The table is for reference only. The distances within it are subject to actual conditions including atmospheric conditions, target size, the installation site, and more.
