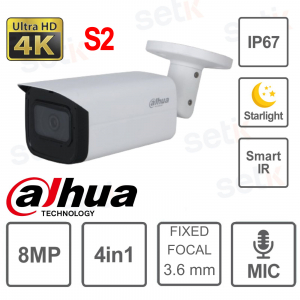

TELECAMERA DAHUA BULLET 4 IN 1 - 4K-3.6MM-STARLIGHT-MIC-VERSIONE 2

Camera

Image Sensor

4K CMOS

Max. Resolution

3840 (H) × 2160 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/3 s–1/100000 s
NTSC: 1/4 s–1/100000 s

Min. Illumination

0.001 lux@F1.5 (Color, 30 IRE)
0.0001 lux@F1.5 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>65 dB

Illumination Distance

80 m (262.47 ft)

Illuminator On/Off Control

Auto

Illuminator Number

4 (IR light)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Auto Focus

No

Lens Mount

M12

Focal Length

3.6 m

Max. Aperture

F1.5

Field of View

3.6 mm: H: 87°; V: 49°; D: 99°

Iris Control

Fixed

Close Focus Distance

3.6 mm: 2.2 m (7.22 f)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

3.6 mm

98.0 m

(321.52 ft)

39.2 m

(128.61 ft)

19.6 m

(64.30 ft)

9.8 m

(32.15 ft)

Video

Video Frame Rate

CVI: PAL: 4K@15 fps;5M@25 fps; 4M@25 fps
NTSC: 4K@15 fps;5M@25 fps; 4M@30 fps
AHD: PAL: 4K@15 fps; NTSC: 4K@15 fps
TVI: PAL: 4K@15 fps; NTSC: 4K@15 fps
CVBS: PAL: 960H; NTSC: 960H

Resolution

4K (3840 × 2160); 5M (2880 × 1620); 4M (2560 × 1440); 960H (960 × 576/960 × 480)

Day/Night

Auto(ICR)/Color/B/W

BLC

BLC; HLC; WDR; HLC-Pro

WDR

120 dB

White Balance

Auto;Area white balance

Gain Control

Auto/Manual

Noise Reduction

3D NR

Illumination Mode

Smart IR

Defog

Electronic defog

Digital Zoom

4×

Mirror

Yes

Privacy Masking

Off/On (8 areas, rectangle)

Certification

Certifications

CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035;
FCC: 47 CFR FCC Part 15, Subpart B;
UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)

Audio Input

One channel built-in MIC

Power

Power Supply

12 VDC ± 30% (It is recommended to use a power adapter to supply the power for one camera)

Power Consumption

Max 9.6 W (12 VDC, IR on)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

<95% (RH), non-condensing

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

<95% (RH), non-condensing

Protection

IP67

Structure

Casing Material

Metal

Product Dimensions

244.1 mm × 90.4 mm × 90.4 mm (9.61" × 3.56" × 3.56")

Net Weight

0.76 kg (1.68 lb)

Gross Weight

1.00 kg (2.20 lb)

Installation

Wall mount; ceiling mount; vertical pole mount
