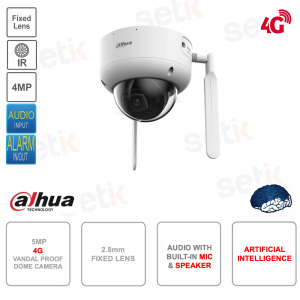

Telecamera Dome IP ONVIF con 4G - 4MP - Ottica 2.8mm - Intelligenza artificiale - Microfono - IK10

Camera

Image Sensor

1/2.7" CMOS

Max. Resolution

2880 (H) × 1620 (V)

ROM

128 MB

RAM

1 GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.005 lux@F1.6 (Color,30 IRE)
0.0005 lux@F1.6 (B/W,30 IRE)
0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

Up to 50 m (164.04 ft) (IR)

Illuminator On/Off Control

Auto; Manual

Illuminator Number

3 (IR LED)

Angle Adjustment

Pan: 0°–355°
Tilt: 0°–80°
Rotation: 0°–355°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8mm

Max. Aperture

F1.6

Field of View

H: 102°; V: 54°; D: 121°

Iris Control

Fixed

Close Focus Distance

1.1 m (3.61 ft)

Intelligence

SMD

SMD 4.0

Quick Pick

With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events

IVS (Perimeter Protection)

Tripwire, intrusion (support the classification and

accurate detection of vehicle and human)

AI SSA

Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.

Smart Search

Work together with Smart NVR to perform refine
intelligent search, event extraction and merging to event
videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

AI Coding

AI H.265; AI H.264

Video Frame Rate

Main stream: 2688 × 1520 @ (1–25/30) fps/2880 × 1620@(1–20 fps) 15 fps by default
sub stream: 704 × 576@(1–30 fps) /704 × 480@(1–30 fps)
third stream: 1920 × 1080@(1–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

3 streams

Resolution

4M (2880 × 1620/2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 3 kbps –8192 kbps
H.265: 3 kbps–8192 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

Scene Self-adaptation (SSA)

Yes

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto;Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Defog

Yes

Image Rotation

0°/90°/180°/270° (Support 2688 × 1520 resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in Mic

Yes, built-in Mic

Built-in Speaker

Yes, built-in speaker

Audio Compression

PCM; G.711a; G.711Mu; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP con?ict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception

Network

Network Port

RJ-45 (10/100 Base-T)

Carrier Network System

EAU:

LTE FDD:B1/3/5/7/8/20/28

LTE TDD:B38/40/41

WCDMA:B1/5/8

GSM/GPRS/EDGE:B3/5/8

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P

Interoperability

ONVIF (Profile S; Profile G; Profile T); CGI

User/Host

20 (Total bandwidth: 64 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 GB); NAS

Browser

IE; Chrome; Firefox; Edge

Management Software

Smart PSS Lite; DSS; DMSS

Mobile Client

iOS; Android

Cyber Security

Configuration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification

Certification

Certifications

CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
CE-RED: Radio Equipment Directive 2014/53/EU

Port

RS-485

1 (baud rate range:1200 bps–115200 bps)

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

2 channels in: wet contact, 5mA 3V–5V DC

Alarm Output

2 channels out: wet contact, 300mA 12V DC

Power

Power Supply

12 VDC

Power Consumption

Basic: 3.6 W (12 VDC)
Max. (IR on + 4G+ Mic on+ power output): 12 W (12 VDC)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤95%

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

≤95%

Protection

IP67; IK10

Structure

Casing Material

Metal

Product Dimensions

105 mm × Φ126 mm (4.13" × Φ4.96")

Net Weight

798 g (1.76 lb)

Gross Weight

990 g (2.18 lb)
