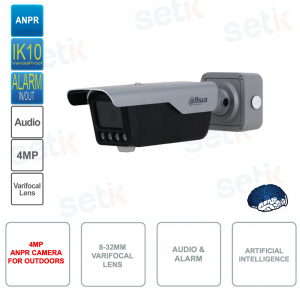

Telecamera ANPR IP POE ONVIF 4MP - Ottica 8-32mm - Intelligenza artificiale - Per esterni

Camera

Image Sensor

1/1.8" CMOS

Image Resolution

2688 × 1520

Electronic Shutter Speed

Auto/Manual 1/25 s–1/100,000 s

Max. Detection Speed

120 km/h

Min. Illumination

0.001 Lux@F1.6 (Color, 30 IRE)
0.0002 Lux@F1.6 (B/W, 30 IRE)
0 Lux (Illuminator on)

ROM

4 GB

RAM

1 GB

S/N Ratio

>56 dB

Scanning System

progressive scanning

Lens

Focal Length

8 mm–32 mm

Field of View

H: 39.9° (W)—15.1° (T)
V: 21.8° (W)—8.5° (T)
D: 46.6° (W)—17.4° (T)

Focus Control

Auto, area focus, manual

Number of Lens

1

Lens Type

Motorized Vari-focal

Max. Aperture

1.6

Iris Control

P-Iris

Illuminator

Illuminator Number

4

Illuminator On/Off Control

Auto, manual

Illuminator Type

Dual Illuminators (730 nm IR/warm light)

Illumination Distance

ANPR: 20 m (65.62 ft)
Video monitoring: 60 m (196.85 ft)

Smart Illumination

According to the brightness of the environment, the camera automatically adjusts the intensity of its light to reveal the details of moving targets. Devices with warm light can automatically adjust the light intensity according to the time.

Infrared Wavelength

730 nm

Video

Video Resolution

Main stream: 4M (2688 × 1520)/1080p (1920 × 1080)/720p (1280 × 720)
Sub stream: 720p (1280 × 720)/960H (960 × 576, 960 × 480)/D1 (704 × 576, 704 × 480)/CIF (352 × 288, 352 × 240)

Stream

PAL: Main stream (2688 × 1520@25 fps, 1920 × 1080@25 fps, 1280 × 720@25 fps), sub stream (1280 × 720@25 fps, 960 × 576@25 fps, 704 × 576@25 fps, 352 × 288@25 fps);
NTSC: Main stream (2688 × 1520@30 fps, 1920 × 1080@30 fps, 1280 × 720@30 fps), sub stream (1280 × 720@30 fps, 960 × 480@30 fps, 704 × 408@30 fps, 352 × 240@30 fps)

Video Compression

H.264H; H.264B; H.264M by default; H.265; MJPEG; H.264M

Video Bit Rate

H.264B: 2,179 kbps–13,074 kbps
H.264M: 2,179 kbps–13,074 kbps
H.264H: 2,179 kbps–13,074 kbps
H.265: 2,179 kbps–13,074 kbps
MJPEG: 6,537 kbps–39,223 kbps

Scene Self-adaptation (SSA)

Yes

Gain Control

Manual; Auto

Noise Reduction

3D NR

Region of Interest (RoI)

Yes, 3

Image Tampering Prevention

Yes. Watermarks can be added to videos and images. The watermark can also be verified.

Bit Rate Control

CBR; VBR

Function

Storage

Bult-in TF card port. Supports Kingston 16 G, 32 G, 128 G, 256 G; Dahua card 16 G, 32 G, 128 G, 256 G; SanDisk 16 G, 32 G, 128 G, 256 G

Restricted List/Trusted List

Allowlist: 110,000
Blocklist: 110,000

IVS

Intrusion detection, loitering detection, up to 4 areas can be set.

Basic Event

Alarms for events of defocus, no storage card, storage card no space, storage card error, network disconnection, IP conflict, and illegal access.

Sound and Light Alarm

Yes, blue & red indicator, and supports broadcasting custom audio.

Alarm Linkage

Upload to FTP/Memory card, notify monitoring center, send e-mail, trigger alert output, snapshot and active deterrence

Capture Distance

8 m–20 m (26.25 ft–65.62 ft)

Detected Width

6 m–8 m (19.69 ft–26.25 ft)

Network

Network Protocol

HTTP; Https; 802.1x; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; IPv4/v6; NTP; SFTP;DDNS; SNMP; PPPoE

API

Yes

SDK

Yes

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; ITSAPI; P2P

Management Software

DSS Pro; DSS Express; Cybercity; Smart PSS

Security

Username and password; MAC address; HTTPS; IEEE 802.1x; network access control

Browser

Plug in:
IE 9, 10, 11.
Chrome 52 and earlier versions
Firefox 42 and earlier versions
No plug in:
Chrome 92 and later versions


Image Encoding Format

JPEG

Image Setting

Brightness; contrast; saturation; gamma; sharpness; gain; white balance

Day/Night

IR filter, support three modes: color/B/W/auto

WDR

140 dB

HLC

Yes

BLC

Yes

White Balance

Auto; Regional Custom; Manual; Outdoor; Natural; Street Lamp

Digital Detail Enhancement (DDE)

Yes

OSD Overlay

Supports overlay of time; address (position of channel), lane (number/direction), plate (number and color), vehicle (speed, color, type)

Audio

Audio Port

Yes

Built-in MIC

Yes; Pick-up distance: 3 m (9.84 ft), Sampling Rate: 48 k.

Built-in Speaker

Yes; Power: 2 W

Port

Audio Output

1 channel (RCA port)

Network Port

RJ-45 (10/100/1000 self-adaptive Ethernet Port)

Alarm Input

2, optocoupler input (wet node on-off value: 5 V)

Alarm Output

2, relay output (2A 30 VDC/0.5A 125 VAC), which can connect to devices such as barriers

RS-485

2 (half duplex,Transparent,DHRS,Push Data through Serial Port)

Reset Button

Yes

Wiegand

1 channel, SHA-1 26 bit

Performance

Maximum Number of Passed Vehicles

10,000

Max. Number of Connections

10

Intelligence

AI Recognition

Recognizes vehicle types, vehicle signs, vehicle color, vehicle plate, plate, vehicle without plate.

Video Metadata

Displays the intelligent frame, plate and vehicle paths.

Vehicle Brand

Recognizes 147 vehicle logos.

Vehicle Color

Recognizes 12 colors: Grey, black, white, silver, blue, green, purple, red, orange, pink, brown, and yellow.

Vehicle Type Recognition

Recognizes 10 vehicle types: Large Bus, Heavy Truck, Medium Truck, Sedan, Van, Light Truck, Medium Bus, SUV, MPV, Pickup

Country and Region Supported by ANPR

Baseline support:
GCC (U.A.E., Saudi Arabia, Morocco, Oman, Iraq, Egypt, Jordan, Qatar, Kuwait, Bahrain, Lebanon)
Europe (Netherlands, France, Germany, Britain, Italy, Poland, Belgium, Bulgaria, Serbia, Slovakia, Spain, Denmark, Turkey, Israel, Czech Republic, Bosnia and Herzegovina, Switzerland, Austria, Hungary, Romania, Lithuania, Latvia, Sweden, Estonia, Portugal, Greece, Slovenia, Luxembourg, Palestine, Lebanon, Ireland, Finland, Norway, Croatia, North Macedonia)
Russian-speaking regions (Russia, Ukraine, Kyrgyzstan, Uzbekistan, Moldova, Lithuania, Latvia, Georgia, Azerbaijan, Turkmenistan)
SADC (Uruguay, Paraguay, Brazil, Argentina, Chile, Colombia, Peru, Ecuador, Guyana)
North America (United States, Canada)
Can be customized:
Mongolia, Japan, Philippines, Vietnam, Laos, Cambodia, myanmar, Thailand, Malaysia, Singapore, Indonesia, Bangladesh, India, Pakistan, Curacao, Mexico, Guatemala, Costa Rica, Australia, New Zealand, Tunisia, Algeria, Ethiopia, Tanzania, Uganda, Equatorial Guinea, Nigeria, Zambia, Mozambique, South Africa, Mauritius

Capture Rate

In the recommended installation and lighting condition, the vehicle capture rate ≥ 99%

Recognition Rate

In the recommended installation and lighting condition, the recognition rate for positive and departing vehicles≥ 96%; the recognition rate for European vehicle plates ≥ 98%

General

Remote control

Yes

Communication Band

433 MHz; 868 MHz

Remote Control Distance

15 m (49.21 ft) (In an open, undisturbed environment)

Power Supply

12 VDC, 2 A and POE:802.3at,Type 2,Class 4,(44V to 57V), 0.455A to 0.351A,max.20W

Power Consumption

Power consumption in different conditions:
No lighting < 6 W
Lighting <12 W
Speaker and Red/Blue Light Warning on < 17 W

Protection

IK10; IP67

Material

Aluminum alloy body+Plastic

Product Dimensions

395.0 mm × 120.8 mm × 127.8 mm (15.55" × 4.76" ×

5.03") (L × W × H)

Packaging Dimensions

447.0 mm × 240.0 mm × 233.0 mm (17.60" × 9.45" × 9.17")

Net Weight

2.3 kg (5.07 lb)

Gross Weight

3.2 kg (7.05 lb)

Storage Humidity

–40 °C to +70 °C (–40 °F to +158 °F)

Storage Temperature

≤ 95% (non-condensing)

Operating Temperature

–30 °C to +65 °C (–22 °F to +149 °F)

Operating Humidity

10%–90% (non-condensing)

Certifications

CE-EMC; CE-LVD; CE-RED; FCC
