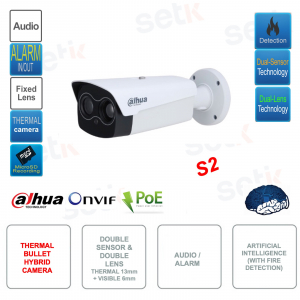

Telecamera termica ibrida IP POE ONVIF - Doppio sensore e doppia ottica - Intelligenza artificiale

Thermal

Detector Type

Vanadium oxide uncooled focal plane detector

Effective Pixels

400 (H) × 300 (V)

Pixel Pitch

17 μm

Spectral Range

8 μm–14 μm

Sensitivity (NETD)

≤35 mK (@f/1.0)

Field of View

H:30.4°; V: 22.5°

Thermal Focus Control

Fixed-focal

Close Focus Distance

2.9 m (9.51 ft)

Detection Distance?

Vehicle: 1,667 m (5,468.07 ft);

Human: 382 m (1,253.26ft)

Recognition Distance?

Vehicle: 289 m (946.75 ft);

Human: 98 m (321.51 ft)

Identification Distance?

Vehicle: 146 m (477.88 ft);

Human: 49 m (160.76ft)

Digital Detail Enhancement (DDE)

Yes

Digital Zoom

19 levels

Thermal AGC

Auto/Manual

Thermal Noise Reduction

2D NR/3D NR

Image Flip

180°; Mirror

Color Palettes

18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter)

Visible

Image Sensor

1/1.8" CMOS

Max. Resolution

2688 (H) × 1520 (V)

Pixel

4 MP

Horizontal Definition

≥1100 TVL

Min. Illumination

Color: 0.01 lux
Black & white: 0.001 lux
0 lux (white light on)

Visible AGC

Auto/Manual

Visible Noise Reduction

2D NR/3D NR

S/N Ratio

>55 dB

White Balance

Auto; manual; indoor; outdoor; tracking; sodium lamp;
street lamp; natural

Defog

Electronic defog

Electronic Shutter Speed

1 s–1/30,000 s (auto/manual)

BLC

Yes

WDR

Yes

HLC

Yes

Day/Night

Auto (ICR); Color; B/W

Iris Control

Fixed

Image Flip

180°; Mirror

Exposure Compensation

Yes

Visible Focus Control

Fixed-focal

Field of View

H: 55.3°; V: 30.0°

Close Focus Distance

2.5 m (8.20 ft)

Aperture

F1.6

Illuminator On/Off Control

Auto; manual

Illumination Distance

80 m (262.47 ft)

Audio and Video

Video Compression

H.265; H.264M; H.264H; H.264B

Resolution

Thermal:

Main stream: 1280 × 1024; 1280 × 960; 1280 × 720;

400 × 300; 1280 × 960 (default)

Sub stream: 640 × 512; 640 × 480; 400 × 300;

400 × 300 (default)

Visible:

Main stream: 2688 × 1520; 2560 × 1440; 1920 × 1080; 1280 × 720); 704 × 576; 2560 × 1440 (default)

Sub stream: 704 × 576; 352 × 288; 704 × 576 (default)

Video Frame Rate

Thermal (50 Hz):

Main stream: 1 fps–25 fps, 25 fps by default

Sub stream: 1 fps–25 fps, 15 fps by default

Visible (50 Hz):

Main stream: 1 fps–25 fps, 25 fps by default

Sub stream: 1 fps–25 fps, 15 fps by default

Thermal (60 Hz):

Main stream: 1 fps–30 fps, 30 fps by default

Sub stream: 1 fps–30 fps, 15 fps by default

Visible (60 Hz):

Main stream: 1 fps–30 fps, 30 fps by default

Sub stream: 1 fps–30 fps, 15 fps by default

Audio Compression

G.711a; G.711 mu

Image Encoding Format

JPEG

Function

Two-way Audio

Yes

Sound and Light Alarm

Local audio and white light alarm prompts

Network Protocol

IPv4/IPv6; HTTP; HTTPS; 802.1x; QoS; FTP; SMTP; UPnP; SNMP; DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE

Region of Interest (RoI)

Yes (customizable)

Storage

FTP; Micro SD card (512 GB, hot swapping)

Interoperability

ONVIF; CGI; DaHua SDK

Browser

IE; Firefox; Chrome; Safari

User/Host

Up to 20 (total bandwidth: 64 MB)

Security

Authorized username and password; attached MAC
address; encrypted HTTPS; IEEE 802.1x; controlled
network access

User Management

Up to 20 users; supports multi-level user permissions (2
levels): management group and user group

Malfunction Detection

Network disconnection detection; IP conflict detection;
memory card state detection; memory space detection

Fusion Mode

Yes. Off by default

PIP

Yes

Intelligence

Heat Detection

Yes

Cold/Hot Spot Trace

Yes

Perimeter Protection

Yes. Supports tripwire and intrusion.

Target Distinction

Human/Vehicle Classification

Target Tracking

Yes

Smoke Detection

Yes

Port

Analog Output

1 × CVBS output; BNC port (not supported by the device with a junction box)

Network Port

1 × RJ-45 (10/100 Base-T)

Alarm Input

2

Alarm Output

2

Audio Input

1

Audio Output

1

RS-485

1

Power

Power Supply

12 VDC ± 20%, PoE (802.3af), ePoE

Power Consumption

Basic: 5 W (12 VDC); 8.9 W (PoE)

Max: 15 W (12 VDC); 18 W (PoE)

ePoE

Yes

Environment

Operating Temperature

–30 °C to +70 °C (–22 °F to +158 °F)

Operating Humidity

≤95%

Storage Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Physical Characteristics

Protection

IP67

Reliability

Surge protection: 6 kV
Air discharge: 15 kV
Contact discharge: 8 kV

Structure

Product Dimensions

300.9 mm × 181.8 mm × 181.8 mm (11.85" × 7.16" × 7.16") (L × W × H)

Packaging Dimensions

423 mm × 180 mm × 178 mm (16.65" × 7.09" × 7.01") (L × W × H)

Net Weight

≤2.35 kg (5.18 lb)

Gross Weight

≤2.7 kg (5.95 lb)

Lens

Included

Certification

Certifications

CE/FCC

Heat Detection Distance

Certifications

Max. Distance

13 mm

114 m (374.02 ft)

Perimeter Protection Distance

Certifications

Distance (Human)

Distance (Vehicle)

13 mm

130 m (426.51 ft)

390 m (1,279.53 ft)
