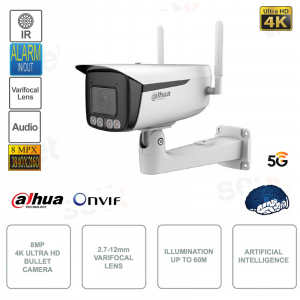

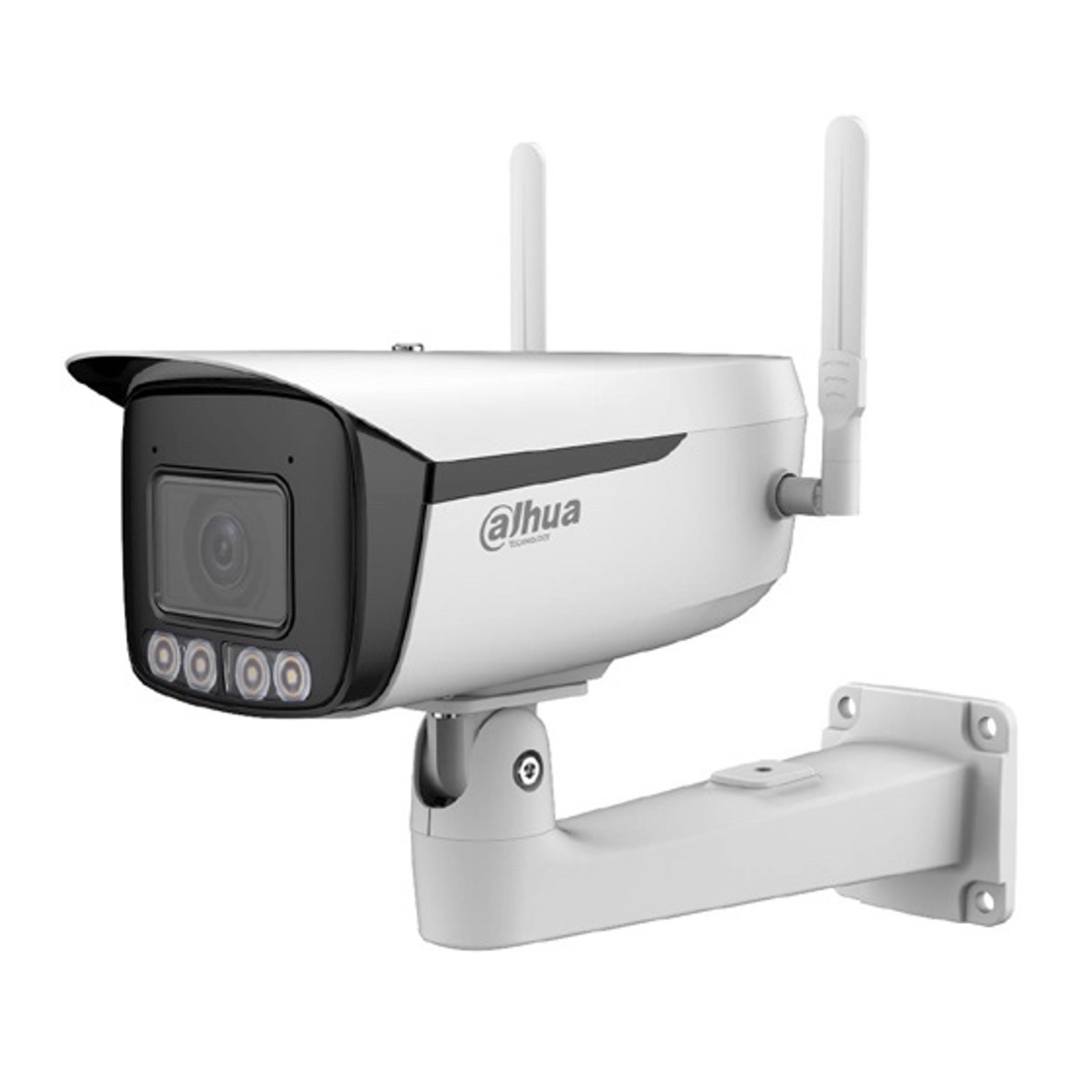

Telecamera 8MP 4K IP ONVIF - 2.7-12mm - Intelligenza artificiale - Connettività 5G - Per esterno

Camera

Image Sensor

1/1.8" CMOS

Max. Resolution

3840 (H) × 2160 (V)

ROM

4 GB

RAM

1 GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.005 lux@F1.8 (Color, 30 IRE)
0.0005 lux@F1.8 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

60 m (196.85 ft) (IR LED)

Illuminator On/Off Control

Auto; Zoomprio; Manual

Illuminator Number

4 (IR LED); 4 (Warm light)

Lens

Lens Type

Motorized vari-focal

Lens Mount

φ14

Focal Length

2.7 mm–12 mm

Max. Aperture

F1.8

Field of View

H: 113°–47°
V: 60°–26°
D: 133°–53°

Iris Control

Auto

Close Focus Distance

1.2 m (3.94 ft)

Intelligence

IVS (Perimeter Protection)

Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection

Heat Map

Yes

Smart Object Detection

Smart abandoned object; smart missing object

Face Detection

Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.

People Counting

Tripwire people counting and people counting in area, queue management; 4 rules can be set for tripwire, people counting in area and queue management.

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

AI Coding

AI H.265 (Compression rate≥25%)
AI H.264 (Compression rate≥25%)

Video Frame Rate

Main stream: 3840 × 2160@(1–25/30 fps)
sub stream: D1@(1–25/30 fps)
third stream: 1080p@(1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

3 streams

Resolution

3840 × 2160; 3072 × 2048; 3072 ×1728; 2592 × 1944; 2688 × 1520; 2560 × 1440; 2048 × 1536; 2304 × 1296; 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 3 kbps–8192 kbps
H.265: 3 kbps–8192 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

Scene Self-adaptation (SSA)

Yes

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Image Stabilization

Electronic Image Stabilization (EIS)

Smart Illumination

Yes

Defog

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 4M resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes

Built-in Speaker

Yes

Audio Compression

PCM; G.711a; G.711Mu; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; scene changing; audio detection; voltage detection; external alarm; face detection; security exception

Network

Network Port

RJ-45 (10/100 Base-T)

Frequency

5G

SA:N1/N3/N7/N8/N20/N28/N38/N40/N41/N75/N76/

N77/N78

NSA:N1/N3/N7/N8/N20/N28/N38/N40/N41/N77/N78

4G

FDD-LTE: B1/B3 /B7 /B20

TDD-LTE: B41

3G

WCDMA:B1 /B8

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; P2P

User/Host

20 (Total bandwidth: 80 M)

Storage

FTP; SFTP; Micro SD card (support max. 512 GB); NAS

Browser

IE: IE9 and later
Chrome
Firefox
Safari: Safari 12 and later

Management Software

Smart PSS; DSS; DMSS

Mobile Client

iOS; Android

Certification

CE-LVD: EN62368-1

CE-EMC: Electromagnetic Compatibility Directive

2014/30/EU

FCC: 47 CFR FCC Part 15, Subpart B

UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

CE RED

Port

RS-485

1 (baud rate range:1200 bps–115200 bps)

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

3 channels in: 5mA 3V–5V DC

Alarm Output

2 channels out: 300mA 12V DC

Power

Power Supply

12 VDC (±30%)

Power Consumption

Basic: 6.6 W (12 VDC)
Max. (H.265 + WDR + max. stream + intelligence on+ illuminator on + active deterrence + vari-focal + power output): 20 W (12 VDC)

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

≤95%

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Protection

IP67

Structure

Casing Material

Metal + plastic

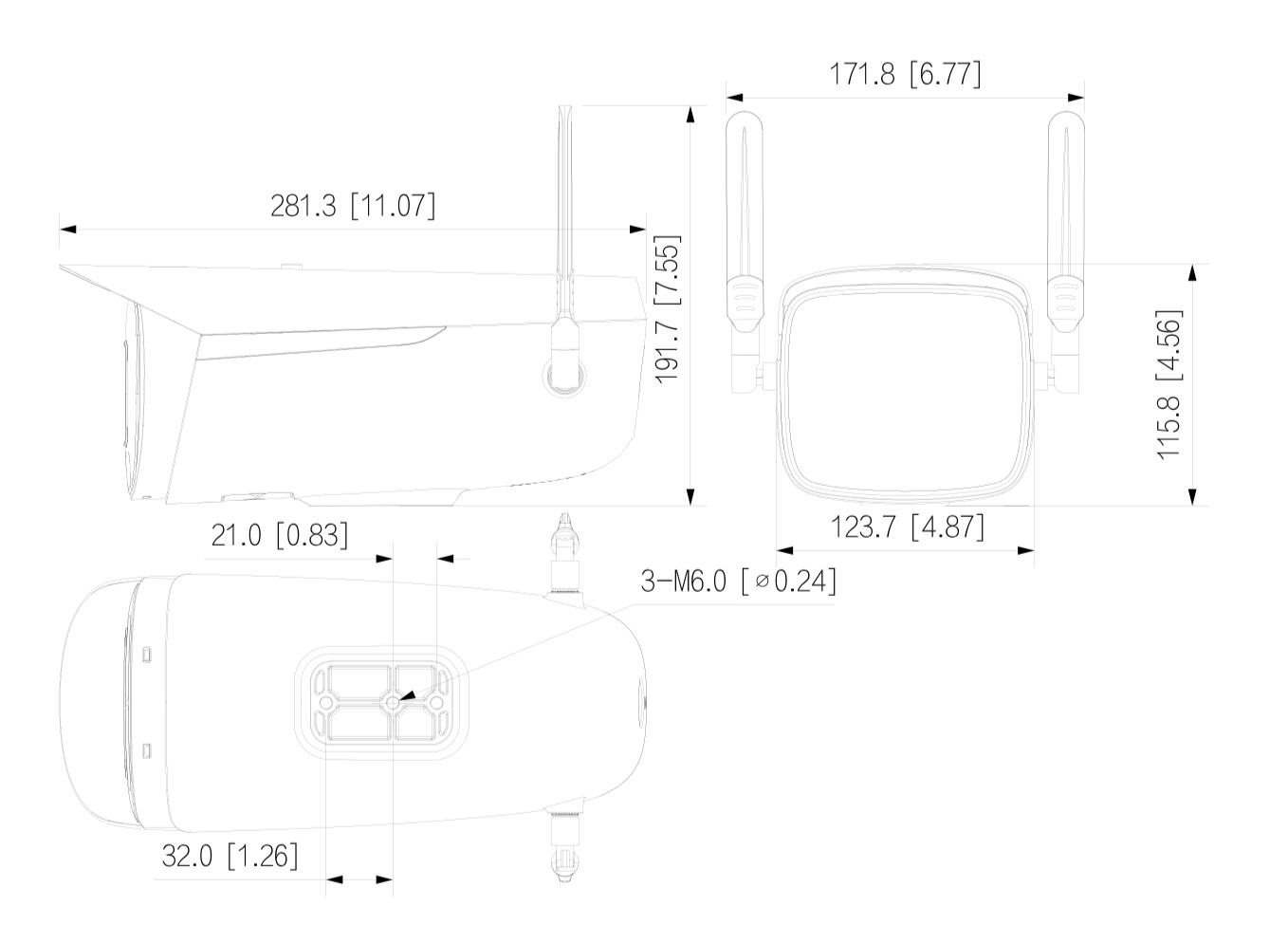

Product Dimensions

281.3 mm × 171.8 mm × 191.7 mm (11.07" × 6.76" × 7.55") (L × W × H)

Net Weight

2074 g (4.57 lb)

Gross Weight

2290 g (5.05 lb)
