Telecamera DS-2CD2443G2-IW(2.8mm) Hikvision - IP PoE Cube - Risoluzione 4MP 2688x1520 - Ottica fissa 2.8mm - Sensore CMOS 1/3" - Wi-Fi - IR 10m - Codec H.265+. Day&Night (ICR), Doppia Stream, WDR digitale, AGC, Motion Detection - Hik-Connect - Pulsante reset - Microfono - Audio Bidirezionale - Motion detection - Slot per MicroSD fino a 512GB (non inclusa) - In plastica.
HIKVISION: PREZZI NETTI×
QUESTO PRODOTTO E' ONLINE AD UN PREZZO SPECIALE!
Scopri gli altri prodotti che fan parte della promozione! Prezzi validi fino al 30 APRILE!

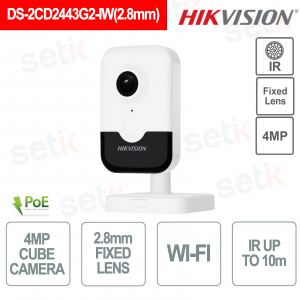

DS-2CD2443G2-IW(2.8mm) | TELECAMERA HIKVISION IP POE 4MP - 2.8MM - MICROFONO - IR 10M - H.265+ - WI-FI

Telecamera Hikvision IP PoE Cube con ottica 2.8mm 4MP
Risoluzione: 4MP - Ottica fissa 2.8mm - Sensore CMOS 1/3" - H.265+ - Wi-Fi
IR fino a 10m - Day/Night(ICR) - WDR 120dB - AGC - Motion Detection - Doppio Stream - Microfono - protezione del perimetro
Alimentatore NON incluso - Garanzia 24 mesi
%20bunner.jpg)
POE (Power Over Ethernet): Il Vantaggio di una telecamera PoE è evidente, permette di essere alimentata con lo stesso cavo con la quale si comunica senza portare ulteriori cavi d'alimentazione e senza dover installare un sistema di alimentazione separato, una telecamera PoE garantisce tensioni costanti ed installazione semplice |
Risoluzione: Questa telecamera presenta una risoluzione di 4MP 4 Megapixel Sensore d'immagine 1/3” 4Megapixel progressive scan CMOS da 4MP 2560 × 1440 |
Ottica: Questa telecamera presenta ottica fissa 2.8mm |
Compressione H.265+![]()
Un algoritmo intelligente auto-sviluppato da Hikvision che può ridurre notevolmente il bitrate del video basato su un codec H.265 standard. H.265 + di Hikvision riduce la larghezza di banda di trasmissione e la capacità di archiviazione richiesta senza impattarne la qualità video, grazie a tre tecnologie chiave: codifica della previsione, soppressione del rumore e controllo flessibile della velocità in bit. Ottimizzato per molteplici scenari di sorveglianza, permette un maggior impiego di telecamere di sorveglianza ultra HD, come le telecamere da 8 MP e 12 MP.
|
Illuminazione: Dotata di illuminatore IR fino a 10m. |
WIRELESS |
HIK-CONNECT Hik Connect permette di controllare il dispositivo da remoto |
Day/Night: Permette di adattare la lente alla visione notte/giorno, e la relativa gestione automatica dell'Illuminatore IR, quando presente. |
IR CUT FILTER (ICR): Filtro meccanico che permette una corretta visualizzazione delle immagini nelle condizioni di visione diurna. Esso filtra le frequenze tipiche dell'infrarosso migliorando così la qualità dell'immagine. In condizioni notturne il filtro viene rimosso in quanto è necessario catturare le frequenze tipiche dell'IR. ![]() |
AGC (Automatic Gain Control): amplificatore di segnale integrato che permette la visione anche in condizioni critiche. E' automatico e non richiede settaggi specifici. |
WDR |
Alimentazione: Per il funzionamento di questa telecamera è necessario un alimentatore 12V DC (non incluso) ![]() |
Slot MicroSD La scheda di memoria NON È INCLUSA |
Scheda tecnica
DS-2CD2443G2-IW(2.8mm) | |
Camera |
|
Image Sensor |
1/3" Progressive Scan CMOS |
Max. Resolution |
2560 × 1440 |
Min. Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
Shutter Speed |
1/3 s to 1/100,000 s |
Day & Night |
IR cut filter |
Angle Adjustment |
Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
Lens |
|
Focal Length & FOV |
FOV 92°, vertical FOV 50°, diagonal FOV 110 |
Aperture |
F1.6 |
Lens Mount |
M12 |
Illuminator |
|
Supplement Light Type |
IR |
IR Range |
Up to 10 m |
Wavelength |
850 nm |
Smart Supplement Light |
Yes |
Video |
|
Main Stream |
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
Sub Stream |
50 Hz: 25 fps (1280 × 720, 768 × 432, 512 × 288) |
Video Compression |
Main stream: H.265/H.264 |
Video Bit Rate |
Up to 2 Mbps |
H.264 Type |
Baseline Profile/Main Profile/High Profile |
H.265 Type |
Main Profile |
Bit Rate Control |
CBR/VBR |
Audio |
|
Environment Noise Filtering |
Yes |
Audio Sampling Rate |
8 kHz/16 kHz |
Audio Compression |
G.711/AAC-LC |
Audio Bit Rate |
64 Kbps (G.711ulaw/G.711alaw)/16 to 64 Kbps (AAC-LC) |
Network |
|
Simultaneous Live View |
Up to 4 channels |
API |
ONVIF, SDK |
Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, UPnP, IGMP, QoS, IPv4, UDP, Bonjour, SSL/TLS |
User/Host |
Administrator |
Security |
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
Client |
iVMS-4200, Hik-Connect, Hik-Partner-Pro |
Wi-Fi |
|
Encryption Mode |
WPA-PSK/WPA2-PSK |
Wi-Fi Protocol |
IEEE 802.11b, 802.11g, 802.11n |
Frequency Range |
2.412 GHz to 2.472 GHz |
Channel Bandwidth |
20 MHz |
Modulation |
802.11b: CCK, QPSK, BPSK |
Wireless Range |
Up to 50 m (The performance varies based on actual environment) |
Transfer Rate |
11b: up to 54 Mbps, |
Image |
|
Wide Dynamic Range (WDR) |
Digital WDR |
Privacy Mask |
4 programmable polygon privacy masks |
Day/Night Switch |
Day, Night, Auto, Schedule |
Image Parameters Switch |
Yes |
Image Settings |
Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
Interface |
|
Built-in Microphone |
Yes, 1 built-in microphone |
Built-in Speaker |
Yes, 1 built-in speaker |
On-board Storage |
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
Hardware Reset |
Yes |
Communication Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
Event |
|
Basic Event |
Motion detection (support alarm triggering by specified target types (human and vehicle)),exception |
Linkage |
Upload to memory card, notify surveillance center, trigger capture, audible warning |
General | |
Power |
12 VDC, 0.38 A, max. 4.56 W, Ø2.0 mm coaxial power plug, |
General Function |
Heartbeat, mirror |
Storage Conditions |
-10 °C to 45 °C (14 °F to 113 °F). Humidity 95% or less (non-condensing) |
Startup and Operating Conditions |
-10 °C to 45 °C (14 °F to 113 °F). Humidity 95% or less (non-condensing) |
Camera Material |
Plastic |
Camera Dimension |
102.9 mm × 65.2 mm × 32.6 mm (4.1" × 2.6" × 1.3") |
Package Dimension |
150 mm × 125 mm × 99 mm (5.9" × 4.9" × 3.9") |
Camera Weight |
Approx. 120 g (0.3 lb.) |
With Package Weight |
Approx. 430 g (0.9 lb.) |
Approval |
|
EMC |
CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014) |
RF |
CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G)) |
Safety |
CE-LVD (EN 62368-1:2014/A11:2017) |
Environment |
CE-RoHS (2011/65/EU); |
Ulteriori dettagli
%20dimensioni.jpg)
Download
