Telecamera Hikvision DS-2CV2141G2-IDW(2.8mm) IP IR Fixed Network Dome da esterno risoluzione 4MP, Ottica fissa 2.8mm, sensore CMOS 1/2.9" Progressive Scan, H.265+, Day&Night (ICR IR Cut Filter), illuminatore IR fino a 30m, Motion Detection, WDR digitale, RJ45 Slot MicroSD (512GB - NON INCLUSA), accesso a Hik-Connect, pulsante di reset, metallo e policarbonato, WIFI Integrato, Microfono, Controllo remoto da mobile, Risoluzione 2560 × 1440 (refresh rate), funzionalità di connessione tramite Hik-Connect
HIKVISION: PREZZI NETTI×
QUESTO PRODOTTO E' ONLINE AD UN PREZZO SPECIALE!
Scopri gli altri prodotti che fan parte della promozione! Prezzi validi fino al 30 APRILE!

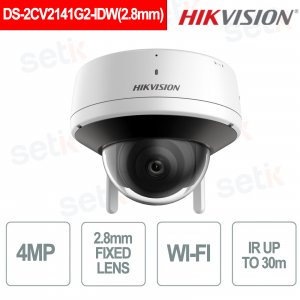

DS-2CV2141G2-IDW(2.8mm) | TELECAMERA DOME HIKVISION IP 4MP DA ESTERNO OTTICA FISSA 2.8mm - H.265+ IR 30 METRI

Telecamera Hikvision IP dome Camera
Risoluzione: 4MP - Ottica fissa 2.8mm - Sensore CMOS 1/2.8" - H.265+
Illuminatore IR 30m - Day/Night(ICR) - WDR digitale - Motion Detection - Audio (Microfono e Speaker) - WIFI integrato - Controllo remoto da Mobile
Alimentatore NON incluso - Slot MicroSD(512GB) - Garanzia 24 mesi
%20bunner.jpg)
|
||
Risoluzione: Questa telecamera presenta una risoluzione di 4MP in tempo reale! 2560 × 1440 Sensore d'immagine 1/2.9” progressive scan CMOS |
||
Ottica: |
||
Compressione H.265+![]()
Un algoritmo intelligente auto-sviluppato da Hikvision che può ridurre notevolmente il bitrate del video basato su un codec H.265 standard. H.265 + di Hikvision riduce la larghezza di banda di trasmissione e la capacità di archiviazione richiesta senza impattarne la qualità video, grazie a tre tecnologie chiave: codifica della previsione, soppressione del rumore e controllo flessibile della velocità in bit. Ottimizzato per molteplici scenari di sorveglianza, permette un maggior impiego di telecamere di sorveglianza ultra HD, come le telecamere da 8 MP e 12 MP.
|
||
Illuminatore IR Infrarosso: |
||
WDR: |
||
Day/Night: Permette di adattare la lente alla visione notte/giorno, e la relativa gestione automatica dell'Illuminatore IR, quando presente. |
||
|
||
Slot MicroSD: Presente slot microsd fino a 512GB - NON INCLUSA |
||
Alimentazione: Per il funzionamento di questa telecamera è necessario un alimentatore 12V DC (non incluso) ![]() |
Scheda tecnica
DS-2CV2141G2-IDW(2.8mm) | |
Camera | |
Image Sensor | 1/2.9" Progressive Scan CMOS |
Max. Resolution | 2560 × 1440 |
Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR |
Shutter Speed | 1/3 s to 1/100,000 s |
Day & Night | IR Cut Filter |
Angle Adjustment | unsupported |
Lens | |
Lens type | Fixed Lens, 2.8mm |
Focal Length & FOV | horizontal FOV 91°, vertical FOV 49°, diagonal FOV 108° |
Aperture | F 1.6 |
Focus | Fixed |
Lens Mount | M12 |
Depth of Field | 1.5 m to ∞ |
Illuminator | |
Supplement Light Type | IR |
Wavelength | 850 nm |
Supplement Light Range | Up to 30 m |
Smart Supplement Light | Yes |
Video | |
Main Stream | 50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440), 30 fps (1920 × 1080, 1280 × 720) |
Sub Stream | 50 Hz: 25 fps (1280 × 720, 768 × 432, 512 × 288) 60 Hz: 30 fps (1280 × 720, 768 × 432, 512 × 288) |
Video Compression |
Main stream: H.265/H.264 |
Video Bit Rate |
up to 2 Mbps |
H.264 Type | Baseline Profile,Main Profile,High Profile |
H.265 Type | Main Profile |
Bit Rate Control | CBR,VBR |
Audio | |
Audio Compression | G.711ulaw/G.711alaw/AAC-LC |
Audio Bit Rate |
64 Kbps (G.711)/16 to 64 Kbps (AAC-LC) |
Environment Noise Filtering | Yes |
Audio Sampling Rate | 8kHz/16kHz |
Network | |
Protocols | TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, Bonjour, SSL/TLS |
Simultaneous Live View | Up to 4 channels |
API | ONVIF, SDK |
Security | Password protection, HTTPS encryption, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE for Open Network Video Interface |
User/Host | administrator |
Network Storage | unsupported |
Client | iVMS-4200, Hik-Connect, Hik-Partner-Pro |
Web Browser | unsupported |
Wi-Fi | |
Wi-Fi Protocol |
IEEE802.11b, 802.11g, 802.11n |
Frequency Range |
2.412 GHz to 2.472 GHz |
Channel Bandwidth | 20 MHz |
Modulation | 802.11b: CCK, QPSK, BPSK 802.11g: OFDM 802.11n: OFDM |
Wireless Range | Up to 120 m (The performance varies based on actual environment) |
Antenna | 2 Antennas |
Image | |
Image Setting | saturation, brightness, contrast, sharpness, adjustable by client software |
Day/Night Switch | Auto, Schedule, Day, Night |
Wide Dynamic Range (WDR) | Digital WDR |
SNR | ≥ 52 dB |
Image Enhancement | unsupported |
Privacy Mask | 4 programmable polygon privacy masks |
Interface | |
Built-in Microphone | Yes, 1 built-in microphone |
Built-in Speaker | Yes, 1 built-in speaker |
On-board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
Reset Key | Yes |
Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
Event | |
Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), exception |
Linkage | Upload to memory card, notify surveillance center, trigger capture, audible warning, auto-tracking lite |
General | |
Power | 12 VDC ± 10%, 1A, max. 10 W, Φ2 mm coaxial power plug, reverse polarity protection |
Language | unsupported |
Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
General Function |
Heartbeat, mirror |
Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
Material | Base: metal, front cover: polycarbonate, back cover: polycarbonate |
Dimension | 120 mm × 120 mm × 95 mm (4.7" × 4.7" × 3.7") |
Package Dimension | 170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9") |
Weight | Approx. 593 g (1.3 lb.) |
With Package Weight | Approx. 886 g (1.95 lb.) |
Approval | |
EMC |
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014 |
RF |
CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G)); |
Safety |
CB: IEC 62368-1: 2014+A11, |
Environment |
CE-RoHS: 2011/65/EU, |
Protection |
IP66: IEC 60529-2013 |
Ulteriori dettagli
%20dimensioni.jpg)
