DS-2SE4C425MWG-E/26(F0)| TELECAMERA HIKVISION IP POE 6 MP & 4MP IN PTZ - DOPPIA OTTICA BULLET 2.8MM e PTZ 4.8-120MM PTZ ZOOM "25X - AUDIO - ALLARME - DUAL IR

Made by Hikvision

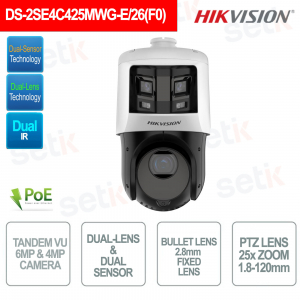

Telecamera IP PoE TandemVu - Hikvision DS-2SE4C425MWG-E/26(F0)
Risoluzione 6MP & 4MP in PTZ- Doppio sensore CMOS (Bullet: 1/25"/PTZ: 1.28") e doppia ottica 2.8mm (Bullet) / 4.8-120mm (PTZ) - Zoom ottico 25x - Zoom digitale 16x - Allarme 1in1out - Audio 1in/1out - Triplo Stream Video - H.265+ - DayNight(ICR) - WDR 120dB - AWB - BLC - HLC - 3DNR - EIS - Defog - ROI - Slot per MicroSD 256GB - Protezione IP66 e TVS 6000 contro i fulmini - LAN Ethernet 100M - Garanzia 24 mesi.

DS-2SE4C425MWG-E-26 bunner







Le telecamere IP Hikvision sono caratterizzate da prodotti altamente professionali con diverse tipologie di housing, risoluzione fino a 4k, compressione video H.265+ e IR fino a 80m con tecnologia EXIR. Durante gli anni, Hikvision ha lanciato varie serie di telecamere IP, tra queste la SERIE EASY IP,nata dalla versione 1.0, sino alla versione 4.0. Di seguito le caratteristiche principali delle SERIE EASY IP più significative.






POE (Power Over Ethernet):
Il Vantaggio di una telecamera PoE è evidente, permette di essere alimentata con lo stesso cavo con la quale si comunica senza portare ulteriori cavi d'alimentazione e senza dover installare un sistema di alimentazione separato, una telecamera PoE garantisce tensioni costanti ed installazione semplice

Risoluzione:
Questa telecamera presenta una doppia risoluzione di 6MP & 4MP
Doppio Sensore d'immagine CMOS: 1/2.5” per la camera PTZ e 1/2.8" per la camera Bullet

Risoluzione Bullet: 3632 × 1632
Risoluzione PTZ:
2560 × 1440

Doppia Ottica:



Questsa telecamera è dotata di doppia ottica:

Camera PTZ: 4.8mm-120mm 25x optical zoom
Camera Bullet: 2.8mm.

Compressione H.265+


Che cos'è H.265+ ?

Un algoritmo intelligente auto-sviluppato da Hikvision che può ridurre notevolmente il bitrate del video basato su un codec H.265 standard. H.265 + di Hikvision riduce la larghezza di banda di trasmissione e la capacità di archiviazione richiesta senza impattarne la qualità video, grazie a tre tecnologie chiave: codifica della previsione, soppressione del rumore e controllo flessibile della velocità in bit. Ottimizzato per molteplici scenari di sorveglianza, permette un maggior impiego di telecamere di sorveglianza ultra HD, come le telecamere da 8 MP e 12 MP.



Illuminatore IR Infrarosso:
Illuminatore IR Infrarosso per una migliore visione notturna. Portata fino a 100m.

Illuminazione a luce bianca fino a 30m.

HIK-CONNECT

Hik Connect permette di controllare il dispositivo da remoto

WDR 120dB (Wide Dynamic Range):
WDR (Wide Dynamic Range): E' la soluzione professionale nei casi in cui si deve operare in condizioni di alto contrasto luce/ombra. Fondamentale in caso di riprese dall'interno verso l'esterno, targhe, punti in ombra o tutte le situazioni dove non è presente omogeneità di luce. Maggiore il valore in db e maggiore sarà la capacità della telecamera di gestire la forte differenza del controluce presente. I comuni WDR arrivano solitamente a 80db, l'occhio umano è in grado di riconoscere una differenza fino a 100db. Questo modello arriva fino a 120db gestendo fortissimi livelli di contrasto.

Immagine esempio funzione WDR 120db
ROI (Region Of Interest):
Le immagini derivanti da telecamere IP sono “compresse”, di conseguenza la qualità viene impostata in fase di registrazione. Soprattutto su telecamere con una risoluzione molto alta, spesso è necessario ridurre la qualità in modo da garantirsi un’occupazione di banda ridotta e registrare un numero maggiore di giorni o di telecamere.
Il ROI permette di definire delle zone dove impostare una qualità maggiore (ad esempio una porta, l’area dove solitamente passa la targa, un’uscita, etc.). In quell’area posso impostare una qualità più alta garantendomi così una maggior definizione dell’immagine.
Ultra Smart Funzione ROI
Day/Night:
Permette di adattare la lente alla visione notte/giorno, e la relativa gestione automatica dell'Illuminatore IR, quando presente.

IR CUT FILTER (ICR):
Filtro meccanico che permette una corretta visualizzazione delle immagini nelle condizioni di visione diurna. Esso filtra le frequenze tipiche dell'infrarosso migliorando così la qualità dell'immagine. In condizioni notturne il filtro viene rimosso in quanto è necessario catturare le frequenze tipiche dell'IR.
Immagine esempio IR CUT FILTER
BLC (Back Light Compensation):
è uno dei 3 Passaggi possibili nella gestione delle immagini con Contrasto, situazioni tipiche sono (Entrate o uscite da parcheggi, Targhe, Luci particolari, Ingressi con riprese dall'interno verso l'esterno, ecc) la compensazione della luce è una delle operazioni più complesse possibili, la funzione BLC permette un discreto adattamento a queste situazioni


Clicca per Ingrandire

AGC (Automatic Gain Control):
amplificatore di segnale integrato che permette la visione anche in condizioni critiche. E' automatico e non richiede settaggi specifici.

3D- DNR:
Versione più evoluta della gestione del NOISE REDUCTION. Esso permette immagini ferme sia in presenza di poca luce che di movimento. La soluzione attualmente più potente per ottenere il massimo dei risultati in presenza di poca luce.

ALLARME:

1 ingresso e 1 uscita allarme.

Allarme eventi.

AUDIO:

1 ingresso e 1 uscita audio.
Slot MicroSD:
Presente slot microsd/sdhc/sdxc fino a 256GB - non inclusa


Protezione IP66 - da esterno:
Questa telecamera è dotata di protezione IP66 (polveri/immersioni). Adatta ad ambienti esterni.

Alimentazione:
Per il funzionamento di questa telecamera è necessario un alimentatore 12V DC (non incluso)

Scheda tecnica

DS-2SE4C425MWG-E/26(F0)

Camera

Image Sensor

[Bullet channel]: 1/2.5" Progressive Scan CMOS; [PTZ channel]: 1/2.8" progressive scan CMOS

Max. Resolution

[Bullet channel] 3632 × 1632, [PTZ channel] 2560 × 1440

Min. Illumination

[Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light; [PTZ channel]: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR

Shutter Speed

1 s to 1/30,000 s

Day & Night

ICR

Zoom

[PTZ channel] 25 × optical, 16 × digital

Slow Shutter

yes

Lens

Focal Length

[Bullet channel]: 2.8 mm; [PTZ channel]: 4.8 to 120 mm, 25 × optical

FOV

[Bullet channel]: Horizontal field of view: 180±10°, Vertical field of view: 80±5°;
[PTZ channel]:
Horizontal field of view: 55° to 2.4° (wide-tele),
Vertical field of view: 33° to 1.4° (wide-tele),
Diagonal field of view: 61.5° to 2.8° (wide-tele)

Focus

semi-auto||manual||auto

Aperture

[Bullet channel]: F1.0; [PTZ channel]: F1.6

Zoom Speed

[PTZ channel]: approx. 3.6 s

Illuminator

Supplement Light Type

[PTZ channel]: IR; [Bullet channel]: White Light

Supplement Light Range

[PTZ channel]: up to 100 m; [Bullet channel]: up to 30 m

Smart Supplement Light

Yes

PTZ

Movement Range (Pan)

360°

Movement Range (Tilt)

-15° to 90° (auto flip)

Pan Speed

pan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s

Tilt Speed

tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s

Proportional Zoom

yes

Presets

300

Preset Freezing

yes

Patrol Scan

8 patrols, up to 32 presets for each patrol

Pattern Scan

4 pattern scans

Park Action

preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan

3D Positioning

yes

PTZ Status Display

yes

Scheduled Task

preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output

Power-off Memory

yes

 Video

Main Stream

[Bullet channel]:
50 Hz:25 fps(3632 × 1632,3680 × 1656)
60 Hz:30 fps(3632 × 1632,3680 × 1656)
[PTZ channel]:
50 Hz:25 fps(2560 × 1440,1920 × 1080,1280 × 960,1280 × 720)
60 Hz:30 fps(2560 × 1440,1920 × 1080,1280 × 960,1280 × 720)

Sub-Stream

[Bullet channel]:
50 Hz:25 fps(1200 × 536,960 × 432)
60 Hz:30 fps(1200 × 536,960 × 432)
[PTZ channel]:
50 Hz:25 fps(704 × 576,640 × 480,352 × 288)
60 Hz:30 fps(704 × 480,640 × 480,352 × 240)

Third Stream

[Bullet channel]:
No
[PTZ channel]:
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Video Compression

H.265,H.264,MJPEG

Video Bit Rate

32 kbps to 16384 kbps

H.264 Type

baseline profile,main profile,high profile

H.265 Type

main profile

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

8 fixed regions for each stream

Audio

Audio Compression

G.711,G.722.1,G.726,MP2L2,PCM,AAC-LC,MP3

Audio Bit Rate

MP2L2: 16 kHz, 32 kHz, 48 kHz; AAC-LC: 16 kHz, 32 kHz, 48 kHz; PCM: 8 kHz, 16 kHz, 32
kHz, 48 kHz; MP3: 8 kHz, 16 kHz, 32 kHz, 48 kHz

Audio Sampling Rate

MP2L2: 32 Kbps, 40 Kbps, 48 Kbps, 56 Kbps, 64 Kbps, 80 Kbps, 96 Kbps, 112 Kbps, 128 Kbps, 144 Kbps, 160 Kbps, 192 Kbps, AAC-LC: 16 Kbps, 32 Kbps, 64 Kbps , MP3: 8Kbps, 16Kbps, 24Kbps, 32Kbps, 40Kbps, 48Kbps, 56Kbps, 64Kbps, 80Kbps, 96Kbps, 112Kbps, 128Kbps, 160Kbps, 192Kbps, 224Kbps, 256Kbps, 320Kbps

Environment Noise Filtering

yes

Network

Protocols IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,R TP,TCP/IP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,WebSocket,WebSockets

Simultaneous Live View

20

API

ISAPI,SDK,ISUP,ONVIF

User/Host

32

Network Storage

NAS (NFS, SMB/ CIFS), ANR

Client

iVMS-4200,Hik-Connect

Web Browser

IE11+,Chrome57+,Firefox52+,Safari12+,Edge79.0.309.65+


Image Parameters Switch

Yes

Image Settings

sharpness, saturation, brightness, contrast

Day/Night Switch

day, night, auto, scheduled-switch

Wide Dynamic Range (WDR)

120 dB

SNR

≥ 52 dB

Defog

Digital defog

Image Stabilization

EIS

Image Enhancement

BLC,HLC,3D DNR

Privacy Mask

[Bullet channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable

Regional Focus

Yes

Regional Exposure

Yes

Interface

Communication Interface

RJ45, self-adaptive 10M/100M Ethernet port

On-board Storage

Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB

Audio

1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%, 1 audio output, line level, impedance: 600Ω

Alarm

1 alarm input, 1 alarm output

Rispristina

yes

Event

Basic Event

[PTZ channel] motion detection, video tampering alarm,[PTZ channel & bullet channel] alarm input and output, exception (IP address conflict, HDD full, illegal login, HDD error, network disconnected, Abnormal Reboot)

Smart Event

[PTZ channel & bullet channel] audio exception detection,[PTZ channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection, [Bullet channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection

Linkage

Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,audible warning,and PTZ actions (such as preset, patrol scan, pattern scan)

Smart Linkage

Panorama Linkage

Deep Learning Function

Face Capture

Detects up to 5 faces simultaneously,
Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture

Regional People Counting

yes

General

Power

12VDC, PoE+

Dimensions

Ø 166 mm × 375 mm (Ø 6.5" × 14.7")

Weight

Approx. 2.4 kg (13.2 lb.)

Material

ADC12

Operating Conditions

-30℃ to 65℃ (-22°F to 149°F) ||humidity lower than 90%RH

General Function

mirror, watermark, password protection

Demist

Demist by heating the glass

Power Consumption and Current

Max. 24 W, including max. 2.6 W for heater and max. 11 W for supplement light

Approval

Protection

IP66 Standard, 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection

Ulteriori dettagli

DS-2SE4C425MWG-E-26 dimensioni

Download

Scaricate il Depliant Inglese
Tutti i nostri prodotti sono conformi alla normativa CE vigente (leggi qui). Per richiedere la copia del certificato compila questo modulo
