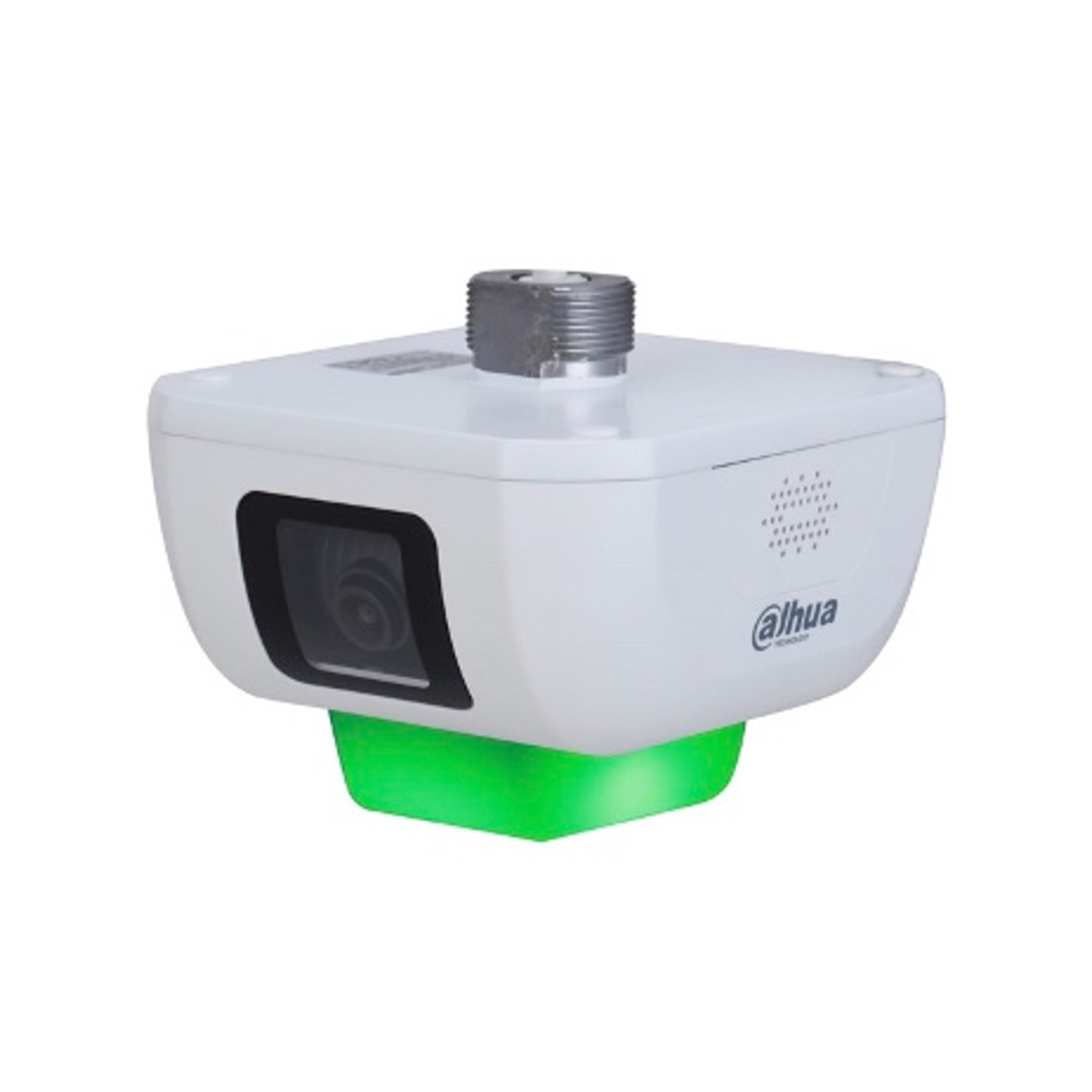

Telecamera IP per parcheggi 4Mp con intelligenza artificiale - Ottica 2.8mm - Dahua

Basic

Image Sensor

1/3" CMOS

Max.Detection Space

6

Parking Space Indicator

1, 7 customizable colors (red, yellow, blue, green, cyan, white, and pink)

Image Resolution

2688 (H) × 1520 (V) (OSD black background is not calculated in the pixels)

Video Resolution

4 MP (2688 × 1520); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576)

Noise Reduction

3D NR

WDR

100 dB

Video Compression

H.265; H.264; MJPEG

Image Encoding Format

JPEG

Video Bit Rate

H.264: 1743 kbps–13946 kbps
H.265: 1743 kbps–13946 kbps
MJPEG: 5230 kbps–41838 kbps

Video Frame Rate

PAL: Main stream (2688 × 1520@20 fps, 1920 × 1080@20 fps, 1280 × 720@20 fps), sub stream (704 × 576@20 fps)
NTSC: Main stream (2688 × 1520@20 fps, 1920 × 1080@20 fps, 1280 × 720@20 fps), sub stream (704 × 576@20 fps)

Edge Enhancement

Yes

Exposure Mode

Auto; Manual (select from shutter values or customize shutter range)

Field of View

H: 101.9°
V: 54.1°
D: 121°

Lens Angle

Adjustable (depression angle of 10°–34°)

General

Electronic Shutter Speed

Auto/Manual 1/3 s-1/10,000 s

Power Supply

12–48 VDC

Power Consumption

<12 W

Operating Temperature

–20 °C to +50 °C (–4 °F to +122 °F)

Operating Humidity

10%–95% (RH), non-condensing

Protection

IP54

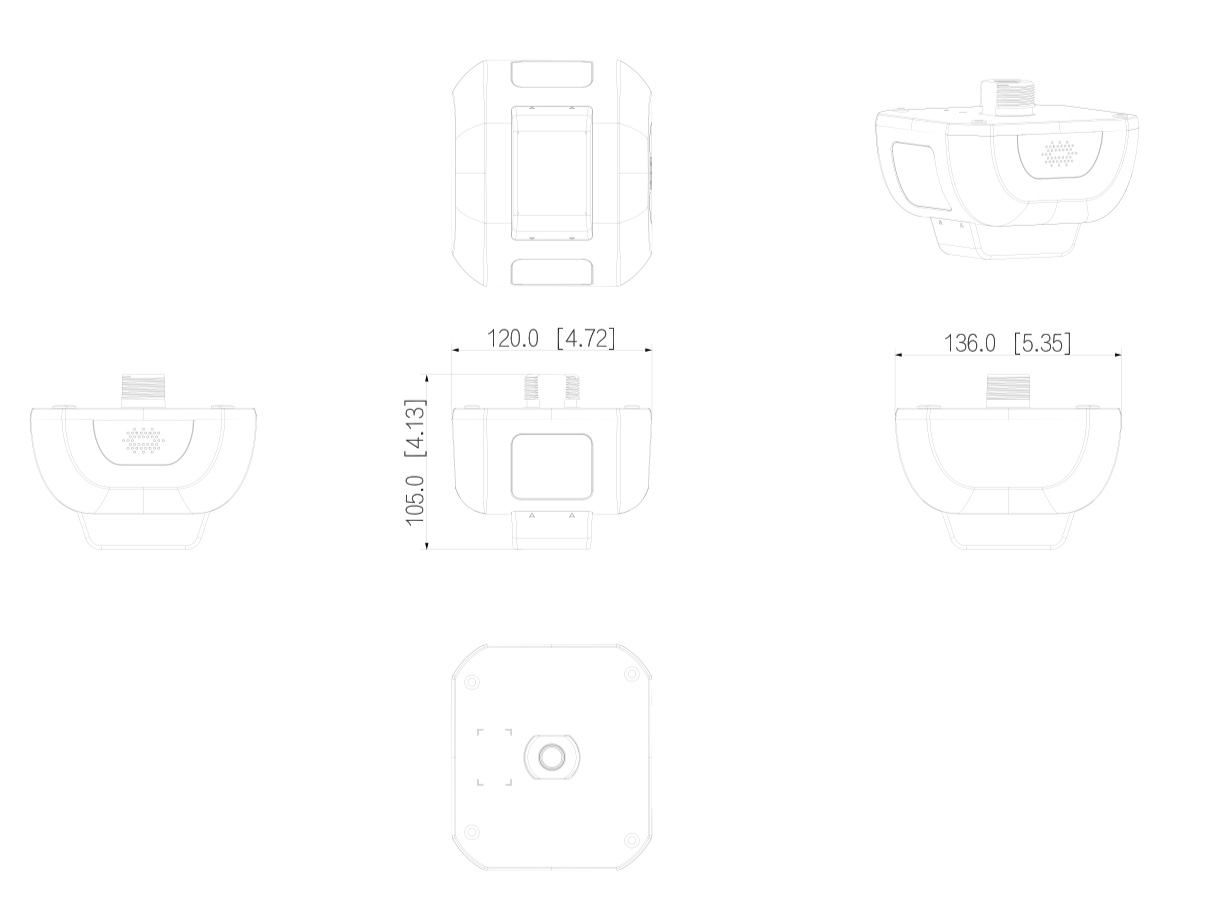

Product Dimensions

120 mm × 136 mm × 105 mm (4.72" × 5.35" × 4.13") (L × W × H)

Net Weight

0.5 kg (1.10 lb)

Gross Weight

0.7 kg (1.54 lb)

Installation

Cable tray mount

Lens

2.8 mm

Function

Security

Authorized username and password, MAC address binding, HTTPS encryption, IEEE 802.1x, and network access control

Shutter Mode

Single shutter

OSD Overlay

Time, address, parking space No., parking space status, plate number, vehicle model, vehicle logo and color

Alarm Event

Illegal access, security error and other events

Auto Registration

Yes

Image Tampering Prevention

Verifies watermarks in videos and images

Audio

Voice broadcast (adjustable volume)

Network Protocol

TCP/IP; HTTP; DHCP; RTSP; NTP; HTTPS

Intelligence

Vehicle Recognition

Recognizes vehicle model, logo, color, and plate number, and collects metadata for unlicensed vehicles. Vehicle recognition rate is over 99.5% and plate recognition rate is over 99%

Parking Space Status Detection

Yes, the indicator color is customizable

Illegal Parking Detection

Detects illegal parking events including vehicle occupies two parking spaces, non-allowlist vehicle occupies parking space, and small vehicle parked in large vehicle's space.

Port

RS-485

1

Network Port

2 × RJ-45 Ethernet port, 100 M network transmission

Power Output

12 VDC ± 10% voltage output, ≤1 A current output
