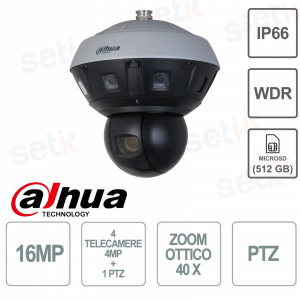

Telecamera IP PTZ 16 MP Multi-Sensor 180° Panoramica -S3 - Dahua

Camera

Image Sensor

Channel 1 (Panoramic): 1/1.8" 4 Megapixel progressive CMOS
Channel 2 (PTZ): 1/1.8" 4 Megapixel progressive CMOS

Pixel

Channel 1 (Panoramic) : 16 MP
Channel 2 (PTZ): 4 MP

Max. Resolution

Channel 1 (Panoramic): 5520 (H) × 2700 (V)
Channel 2 (PTZ): 2560 (H) × 1440 (V)

ROM

Channel 1 (Panoramic): 8 GB
Channel 2 (PTZ): 8 GB

RAM

Channel 1 (Panoramic): 4 GB
Channel 2 (PTZ): 2 GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

Channel 1 (Panoramic):
0.0005 lux@F1.0 (Color,30 IRE)
0.0001 lux@F1.0 (B/W,30 IRE)
Channel 2 (PTZ):
0.001 lux@F1.4 (Color,30 IRE)
0.0005 lux @F1.4(B/W,30 IRE);
0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

Channel 1 (Panoramic): No
Channel 2 (PTZ): ≥ 400 m (1312.34 ft)

Illuminator On/Off Control

Auto; Manual; Zoomprio

Illuminator Number

Channel 1 (Panoramic): No
Channel 2 (PTZ): 7 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0° to 360°
Tilt: -11° to 90°

Built-in Battery

Channel 1 (Panoramic): Horizontal welding/lithium battery/3 V
Channel 2 (PTZ): Horizontal welding/lithium battery/3 V

Lens

Lens Type

Channel 1 (Panoramic) : Fixed-focal
Channel 2 (PTZ): Vari-focal

Lens Mount

Channel 1 (Panoramic) : M16
Channel 2 (PTZ): Module

Focal Length

Channel 1 (Panoramic) : 2.8 mm
Channel 2 (PTZ): 5.5 mm–220 mm

Max. Aperture

Channel 1 (Panoramic) : F1.0
Channel 2 (PTZ): F1.4

Field of View

Channel 1 (Panoramic):
H: 180°
V: 103°
Channel 2 (PTZ):
H: 2.2°–61.8°
V: 1.3°–36.3°
D: 2.4°–69.2°

Iris Control

Channel 1 (Panoramic): No
Channel 2 (PTZ): P-iris

Close Focus Distance

Channel 1 (Panoramic): 1.4 m (4.59 ft)
Channel 2 (PTZ): 0.5 m–2 m (1.64 ft–6.56 ft) (T to W)

Smart Event

IVS

Channel 1 (Panoramic): Yes
Channel 2 (PTZ): Yes

Intelligence

Intelligence Description

Channel 1 (Panoramic): Perimeter protection, crowd map, vehicle density.
Channel 2 (PTZ): Perimeter protection, video metadata, face recognition

IVS (Perimeter Protection)

Channel 1 (Panoramic): Tripwire; intrusion; parking detection
Channel 2 (PTZ):Tripwire; intrusion; parking detection;crossing virtual fence, fast moving, abandoned object, missing object, crowd gathering, loitering detection

Face Recognition

Channel 1 (Panoramic): No
Channel 2 (PTZ):
Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot)
Supports adding 5 group face databases; registering person one by one or in batches; setting face similarity; and supports face comparison with the face database containing up to 10,000 face pictures

Vehicle Density

Channel 1 (Panoramic):Vehicle density; parking upper limit; traffic congestion alarm
Channel 2 (PTZ): No

Crowd Distribution Map

Channel 1 (Panoramic):Crowd map, global crowd density; crowd density in area; people counting in area;
Channel 2 (PTZ): No

Video Metadata

Channel 1 (Panoramic): No
Channel 2 (PTZ):
Motor vehicle, non-motor vehicle, face, and human body detection; snapshot; snapshot optimization; optimal face snapshot upload.
Motor vehicle attributes: License plate, plate color, vehicle type, vehicle color, vehicle logo, vehicle model/year, sun visor, seatbelt., smoking, calling, ornament, and annual inspection sticker.
Non-motor vehicle attributes: Type, vehicle color, number of people, top type and color, and hat.
Human body attributes: Top and bottom type and color, bag, hat, gender, and umbrella.
Face attributes: Gender, age, expressions, glasses, face mask, and bread

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.264+
Smart H.265+

Video Frame Rate

Channel 1 (Panoramic) :
Main stream: 5520 × 2700 @(1–25/30 fps)
sub stream: 1920 × 940 @ (1–25/30 fps)
third stream: 4096 × 2064 @ (1–25/30 fps)
Channel 2 (PTZ):
Main stream: 2560 × 1440@ (1–25/30 fps)
sub stream: 704×576@ (1–25/30 fps)
third stream:1920 × 1080@ (1–25/30 fps)

Stream Capability

3 streams

Resolution

Channel 1 (Panoramic) :
Main stream: 8192 × 1800; 7680 × 1680; 5760 × 1264; 4096 × 900
sub stream: 2048 × 452
third stream: 3840 × 832; 2560 × 560
Channel 2 (PTZ):
Main stream: 2560 × 1440; 1920 × 1080; 1280 × 960; 1280 × 720
sub stream: 704 × 576; 640 × 480; 352 × 288
third stream: 1920 × 1080; 1280 × 960; 1280 × 720

Bit Rate Control

CBR/VBR

Video Bit Rate

Channel 1 (Panoramic):
H.264: 96 Kb/s–32768 Kb/s
H.265: 38 Kb/s–29362 Kb/s
Channel 2 (PTZ):
H.264: 32 Kb/s–15872 Kb/s
H.265: 12 Kb/s–9472 Kb/s

Day/Night

Channel 1 (Panoramic): No
Channel 2 (PTZ): ICR

BLC

Yes

HLC

Yes

WDR

Channel 1 (Panoramic): 120 dB
Channel 2 (PTZ): 120 dB

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto; Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Default Bit Rate with Default Resolution

Channel 1 (Panoramic): 6144 kb/s (5520 × 2700)
Channel 2 (PTZ): 6144 kb/s (2560 × 1440)

Region of Interest (RoI)

Channel 1 (Panoramic) : Yes (4 areas)
Channel 2 (PTZ): Yes (8 areas)

Image Stabilization

Channel 1 (Panoramic): No
Channel 2 (PTZ): No

Defog

Channel 1 (Panoramic): No
Channel 2 (PTZ): Optical defog

Privacy Masking

Channel 1 (Panoramic) : 4 areas
Channel 2 (PTZ): 24 areas (8 for each preset)

LDC

Channel 1 (Panoramic): Yes
Channel 2 (PTZ): No

Audio

Audio Compression

PCM; G.711a; G.711Mu; G.726; G.723, G.711a by default

Audio Sampling

8 kHz; 16 kHz; 32 kHz; 48 kHz; 64 kHz

Alarm

Alarm Event

Channel 1 (Panoramic):
External alarm; No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; voltage detection; motion detection; video tampering; scene changing; audio detection; intensity change; tripwire; intrusion; parking detection; crowd density; traffic congestion; parking upper limit
Channel 2 (PTZ):
Tripwire; intrusion; parking detection;crossing virtual fence, fast moving, abandoned object, missing object, crowd gathering, loitering detection; face recognition; video metadata

Network

Network Port

RJ-45 (10/100/1000 Base-T)

SDK and API

Yes

Cyber Security

Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P

Interoperability

ONVIF (Profile S/Profile G/ Profile T); CGI

User/Host

20 (Total bandwidth: 400 M)

Storage

FTP; SFTP; Micro SD card (support max. 512 GB); NAS; SMB

Browser

IE: IE11
Chrome
Firefox

Management Software

SmartPSS Lite; DSS

PTZ

Pan/Tilt Range

Pan: 0° to 360° endless
Tilt: –11° to 90°, auto flip 180°

Manual Control Speed

Pan: 240°/s
Tilt: 100°/s

Telephoto Speed Limit

Yes

Positioning Accuracy

Pan: 0.1°
Tilt: 0.1°

Positioning Accuracy Automatic Calibration

Yes

Remote Lens Reset

Yes

Remote PTZ Reset

Yes

Preset

300

Tour

8 (up to 32 presets per tour)

Pattern

5

Scan

5

Power-off Memory

Yes

Idle Motion

Preset; Pattern; Tour; Scan

Time Task

Yes

3D Positioning

Yes

PTZ Limit

Yes

Position Display

Yes

Information Display

Yes

Time Display

Yes

PTZ Restart

Yes

Certification

Certifications

CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
FCC: 47 CFR FCC Part 15, Subpart B;
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Port

RS-485

1 (baud rate range:1200 bps–115200 bps)

Optical Module Specification

SFP optical module, single mode, single fiber 20 KmTX-1310 nm/RX-1550 nm

Optical Fiber

FC

Optical Fiber Module Type

Gigabit SFP optical module, single mode, single fiber TX-1550 nm/RX-1310 nm

Audio Input

2 channels (terminal)

Audio Output

2 channels (terminal)

Alarm Input

7 channels in: 5mA 3V–5V DC

Alarm Output

3 channels out: 1,000mA 30V DC/500mA 50V AC

Analog Output

1 channel (CVBS output: BNC)

Power

Operating Voltage

36 VDC (±50%)

Power Supply

36 VDC

Power Consumption

Basic: 59 W (36 VDC)
Max. (Basic power consumption + WDR + intelligence on + IR on + PTZ operation ): 99 W (36 VDC)

Environment

Operating Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Operating Humidity

≤95%

Storage Temperature

–40 °C to +70 °C (–40°F to +158°F)

Storage Humidity

≤95%

Protection

IP66

Structure

Casing

Metal + plastic

Product Dimensions

Φ383 mm × 462 mm (15.08" × Φ18.19")

Packaging Dimensions

500 mm × 500 mm × 658 mm (19.69" × 19.69" × 25.91") (L × W × H)

Net Weight

14.4 kg (31.75 lb)

Gross Weight

20.3 kg (44.75 lb)

Installation

Wall mount; ceiling mount; pole mount

Power Adapter

Included

Lens

Included

Power Output

NA

Others

Calibration

Manual/Auto
